NanoPi R3S-LTS + Metal Case
NanoPi R3S-LTS + Metal Case
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

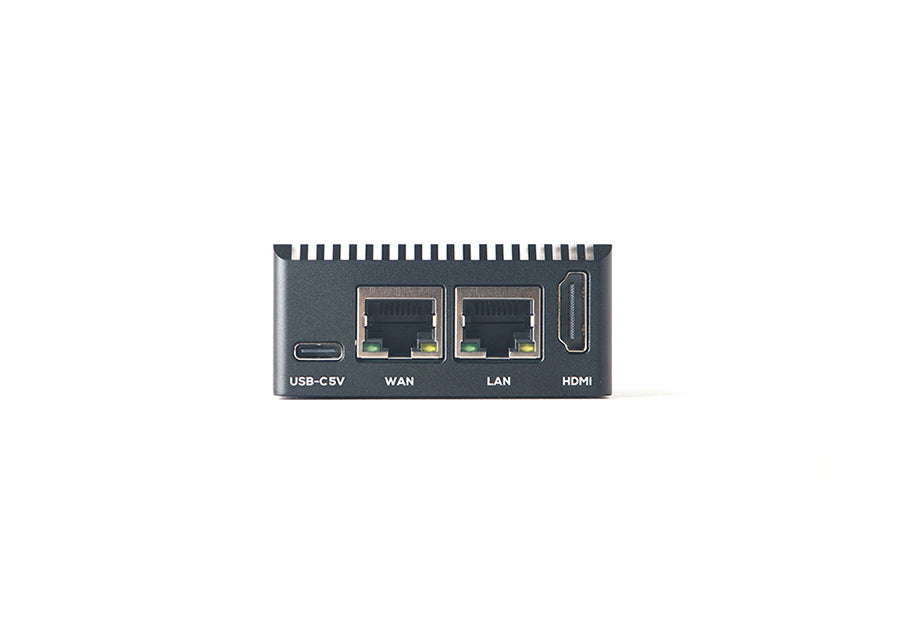

The NanoPi R3S-LTS is a compact open source dual-Gigabit Ethernet platform from FriendlyElec, built on the Rockchip RK3566 quad-core Cortex-A55 processor running at up to 1.8GHz with a 1T NPU. With two Gbps Ethernet ports, HDMI 2.0 output, a USB 3.0 port and optional 32GB eMMC, it is a good fit for routers, IoT gateways and NAS applications. FriendlyElec ported OpenWrt (FriendlyWrt) to it, it works with Docker CE, and it also supports Debian, Ubuntu, OpenMediaVault and Proxmox VE. This combo comes with FriendlyElec's integrated CNC anodized aluminum metal case.
KEY FEATURES
- Rockchip RK3566: Quad-core ARM Cortex-A55 up to 1.8GHz with a 1T NPU and hardware-accelerated AES encryption/decryption
- Dual Gigabit Ethernet: One native Gbps port (RTL8211F) and one PCIe Gbps port (RTL8111H). FriendlyElec measured 934 Mbps TX / 941 Mbps RX on the native port and 934 Mbps TX / 936 Mbps RX on the PCIe port (iperf3)

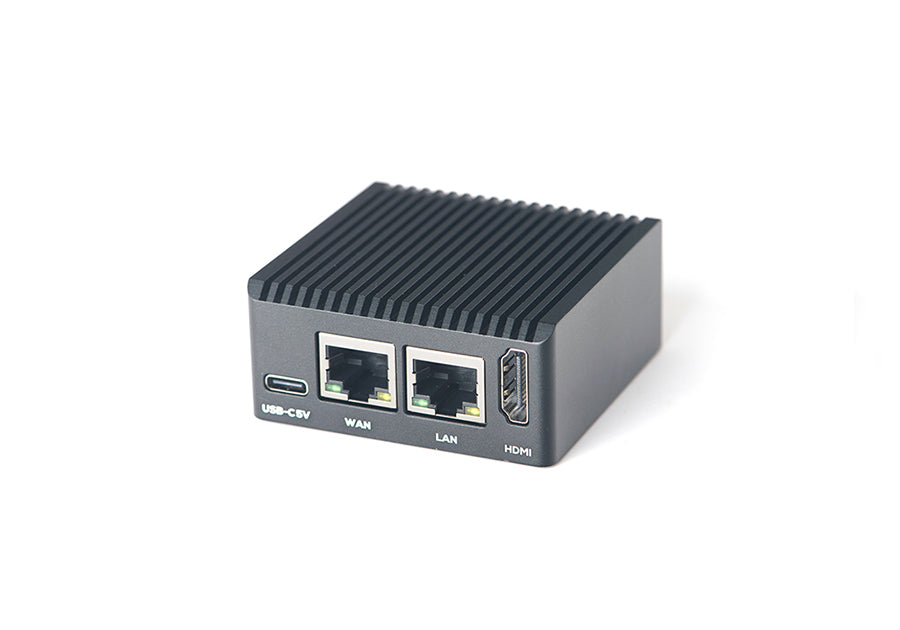

- CNC Metal Case: Integrated anodized aluminum case. In FriendlyElec's full-load test at 24°C room temperature, the R3S-LTS in its metal case held 1.8GHz with CPU temperature staying below 50°C
- Display & Audio: HDMI 2.0 Type-A output, 30-pin MIPI-DSI FPC connector and a speaker connector
- Flexible Storage: microSD slot (UHS-I SDR104) plus optional 32GB onboard eMMC
- USB 3.0 & USB-C: USB 3.2 Gen 1 Type-A host port, and USB-C for 5V power and data
- USB WiFi Ready: FriendlyWrt supports plug-and-play USB WiFi (RTL8821CU/RTL8811CU, RTL8812BU, RTL8812AU, RTL8851BU, MediaTek MT7662) with Access Point mode by default
- FriendlyWrt with Docker: Run ARM64 Docker apps such as Home Assistant, Jellyfin, Nextcloud and more
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | FriendlyElec NanoPi R3S-LTS (Combo with Metal Case) |
| SoC | Rockchip RK3566 |
| CPU | Quad-core ARM Cortex-A55, up to 1.8GHz |
| NPU | 1T |
| Memory (RAM) | 1GB LPDDR4 or 2GB LPDDR4X (depending on option selected) |
| Storage | No eMMC or 32GB onboard eMMC (depending on option selected) microSD slot, supports UHS-I (SDR104) |
| Networking | Native Gigabit Ethernet ×1 (RTL8211F) PCIe Gigabit Ethernet ×1 (RTL8111H) |
| Video Output | HDMI 2.0 Type-A ×1 MIPI-DSI 30-pin FPC connector ×1 |
| Audio | Speaker connector (Class-D amplifier, 1.3W into 8Ω) |
| USB | USB 3.2 Gen 1 Type-A ×1 USB-C ×1 (power 5V & data) |
| Debug | Debug UART, 3-pin 2.54mm header, 3.3V level, 1500000bps |

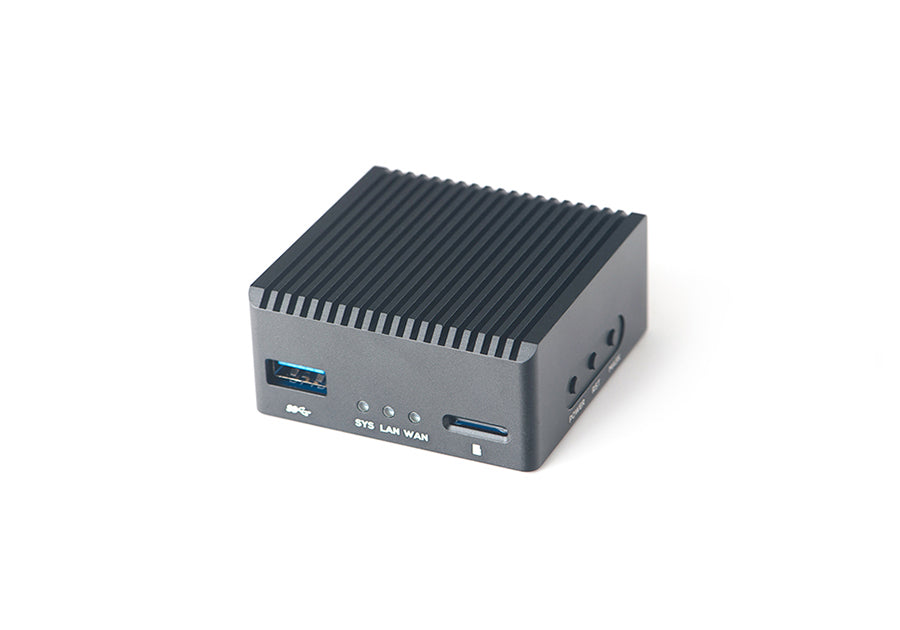

| LEDs | SYS LED (red), WAN LED (green), LAN LED (green) |
| Buttons | MASK button (for eMMC flashing via USB-C), user button, power button |
| RTC | 2-pin 1.27/1.25mm RTC battery input connector for low-power RTC IC HYM8563TS |
| Power | USB-C, DC 5V/2A (non-PD) |
| Operating Temperature | 0°C to 70°C |
| Operating Systems | FriendlyWrt 25.12, OpenMediaVault 8.0.6, Proxmox VE 8.2.7, Debian 13 Core, Debian 12 Desktop (LXQT), Ubuntu 24.04 Core, Ubuntu 24.04 Desktop (LXQT), FriendlyCore 20.04 (Qt5), Alpine Linux 3.23, Buildroot (Weston) |
| Kernel / Bootloader | Linux 6.1 LTS / U-boot 2017.09 |

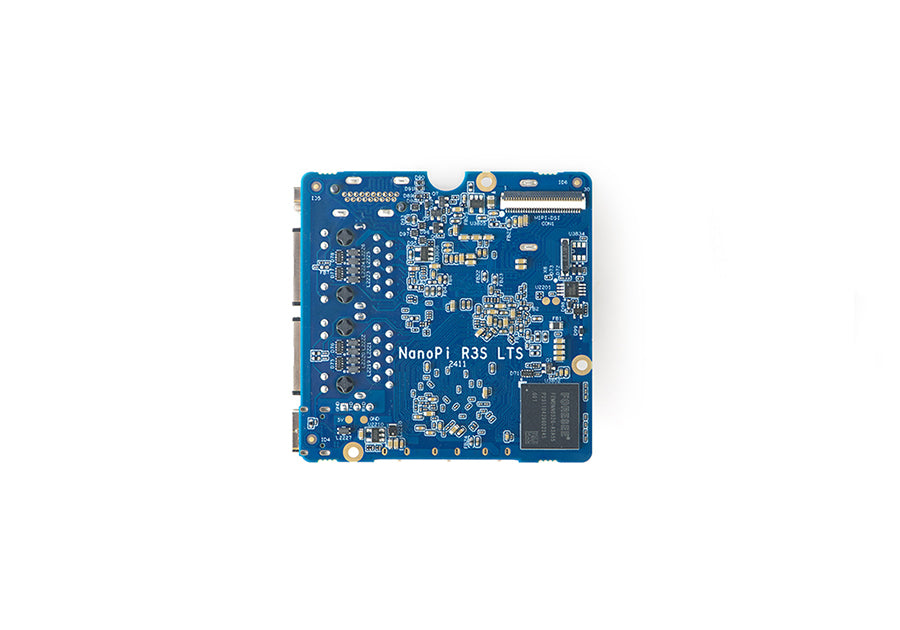

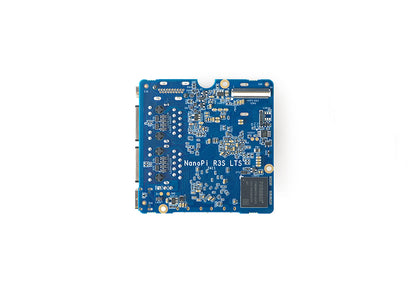

| PCB | 8-layer, 57 × 57 mm |
| Dimensions (with case) | 61.5 × 61.5 × 25 mm |
| Weight | 150g with case (35g bare board) |
What's Included:

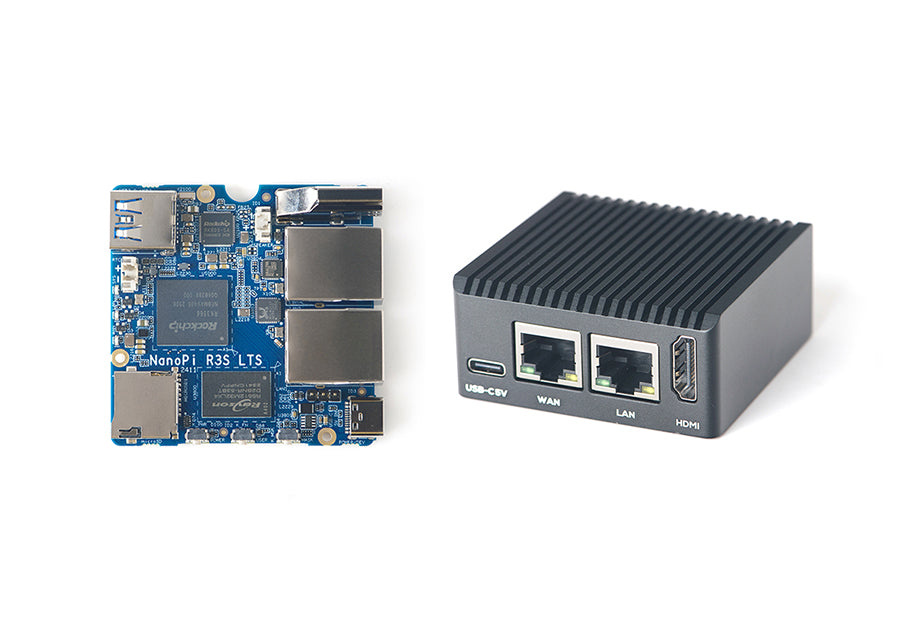

- 1 × NanoPi R3S-LTS Combo: NanoPi R3S-LTS board with CNC anodized aluminum metal case (RAM/eMMC per selected option)
NOTES
- Variants differ only in memory and storage: 1GB RAM with no eMMC, or 2GB RAM with 32GB onboard eMMC. Both include the metal case.
- The 1GB RAM / no eMMC version boots from a microSD card. FriendlyElec recommends a Class 10 or faster microSD card of 8GB or larger.
- Power: USB-C 5V input (non-PD). FriendlyElec recommends a 5V/3A USB-C power adapter. A power supply and microSD card are not listed as included.
- Serial console settings: 1500000 baud, 8 data bits, no parity, 1 stop bit, no flow control.
- Compared with the original NanoPi R3S, the R3S-LTS adds HDMI output, a speaker interface and a power button.
- Firmware is continuously updated. OS images, documentation and support are provided by FriendlyElec at wiki.friendlyelec.com.
