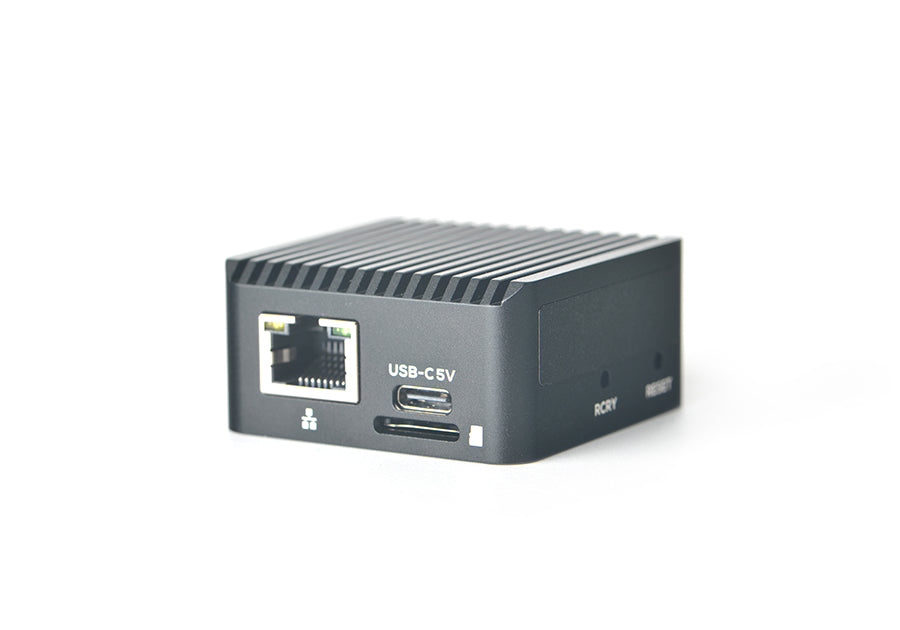

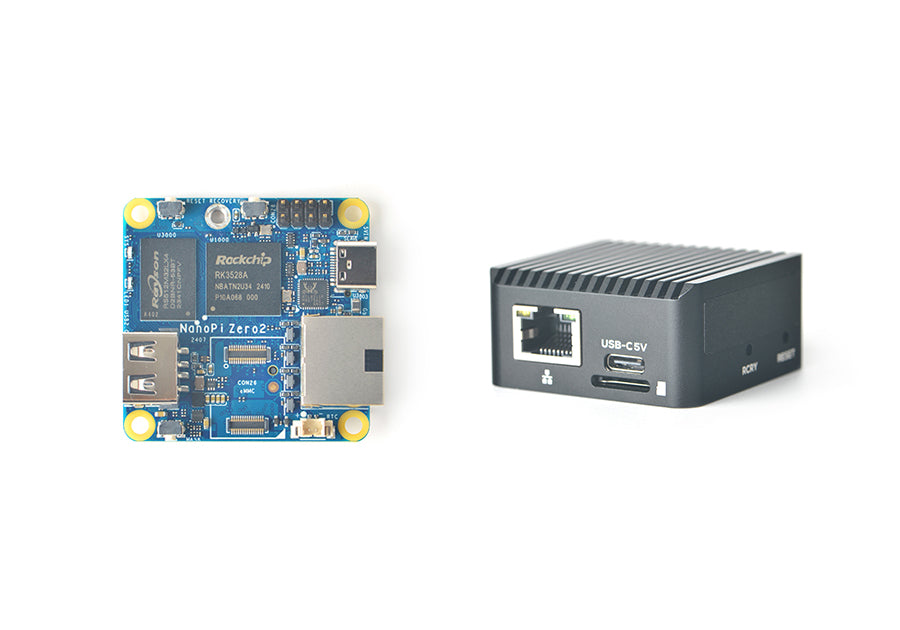

NanoPi Zero2 + Metal Case

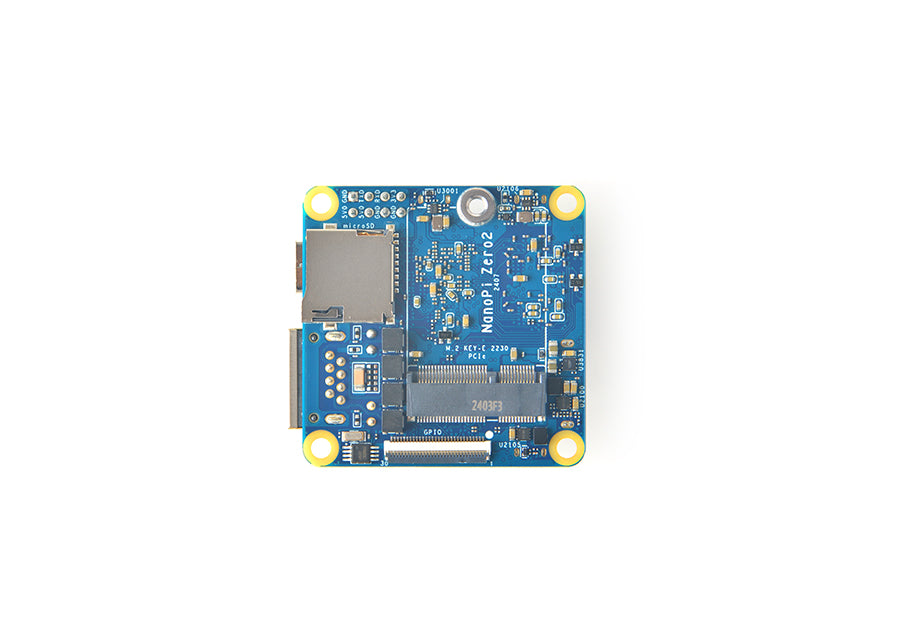

FriendlyELEC NanoPi Zero2 — RK3528A Mini SBC (1GB / 2GB RAM)

The NanoPi Zero2 is a compact and capable single-board computer from FriendlyELEC, powered by the Rockchip RK3528A quad-core Cortex-A53 processor. Measuring just 45 × 45 mm, it offers Gigabit Ethernet, 4K video decoding, M.2 Wi-Fi expansion, and strong software support including FriendlyWrt, Debian, Ubuntu, and more. Available in both 1GB and 2GB LPDDR4/LPDDR4X RAM variants.

KEY FEATURES

• Rockchip RK3528A: Quad-core ARM Cortex-A53 up to 1.8 GHz
• ARM Mali-450 GPU with 4K H.265/H.264 60fps decoding
• 1GB or 2GB LPDDR4/LPDDR4X RAM options
• Native Gigabit Ethernet (RTL8211F)
• M.2 E-Key Slot: PCIe 2.1 for Wi-Fi modules
• Compact Size: Only 45 × 45 mm
• USB 2.0 Host + USB-C
• microSD Slot + support for eMMC modules
• 30-pin FPC GPIO for expansion
• Strong OS Support: FriendlyWrt, Debian, Ubuntu, OpenMediaVault, Proxmox, and more

SPECIFICATIONS

Processor & Graphics:

• SoC: Rockchip RK3528A
• CPU: Quad-core ARM Cortex-A53, up to 1.8 GHz
• GPU: ARM Mali-450
• VPU: 4K H.265/H.264 60fps decoding

Memory & Storage:

• RAM: 1GB or 2GB LPDDR4/LPDDR4X (customer selectable)
• microSD slot (up to 128GB)
• Supports eMMC module

Networking:

• 1 × Gigabit Ethernet (RTL8211F)
• 1 × M.2 E-Key (PCIe 2.1) for Wi-Fi modules (WiFi Module Not Included)

USB & I/O:

• 1 × USB 2.0 Host (Type-A)
• 1 × USB-C (USB 2.0 Device / power / eMMC upgrade)
• 1 × 30-pin FPC GPIO connector
• 1 × Serial Debug Port (3-pin header, 3.3V TTL)
• RTC battery connector
• RESET, RECOVERY, and MASK buttons
• Status LEDs

Power:

• DC 5V / 2A via USB-C or 2.54mm header

Physical:

• Board Dimensions: 45 × 45 × 1.2 mm
• Weight: Approx. 16.1 g (board only)
• Working Temperature: 0°C to 80°C

Software Support:

• FriendlyWrt
• Debian
• Ubuntu
• OpenMediaVault
• Proxmox VE
• Alpine Linux, Buildroot, and others
• Linux 6.1 LTS kernel

What's Included:

• 1 × NanoPi Zero2 board (1GB or 2GB RAM version)

NOTES

• Available in 1GB and 2GB RAM variants — select your preferred version on the product page
• Case is included
• Excellent choice for lightweight routers, IoT gateways, media players, NAS, and embedded projects
• Strong community and official Wiki support from FriendlyELEC
