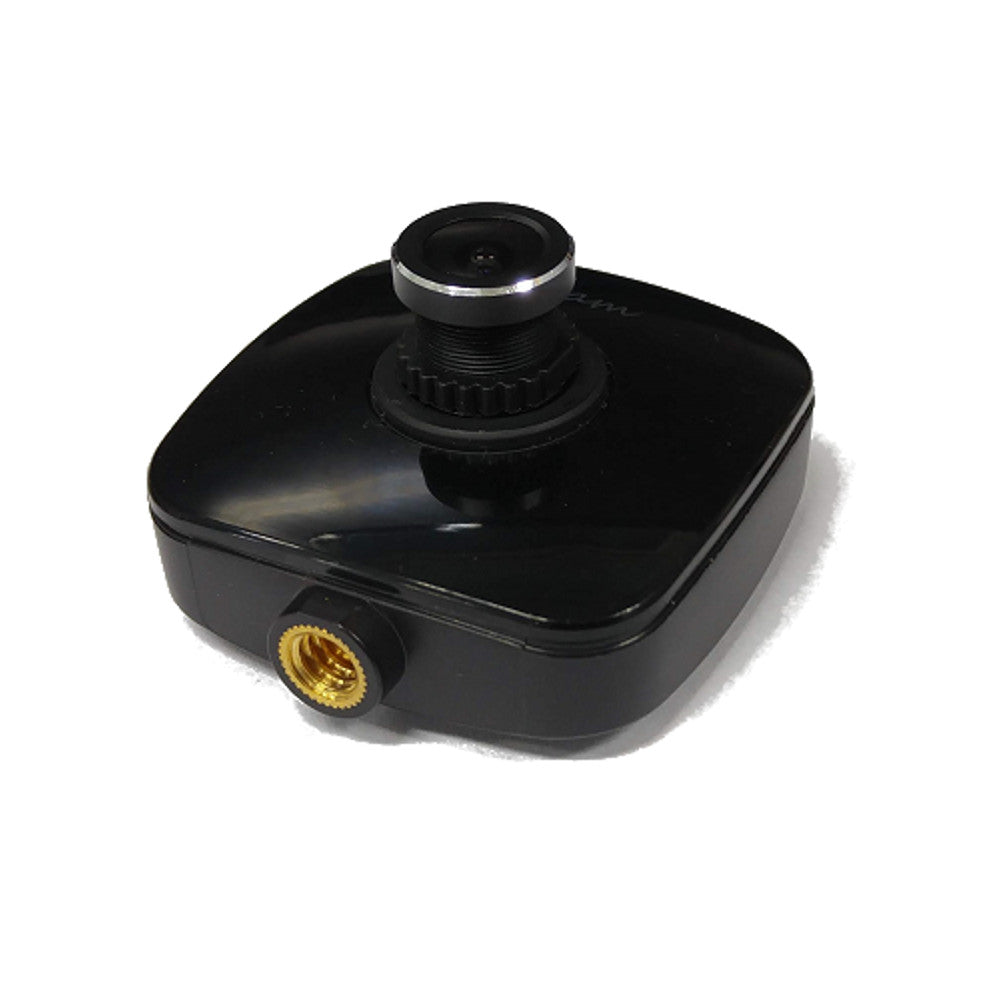

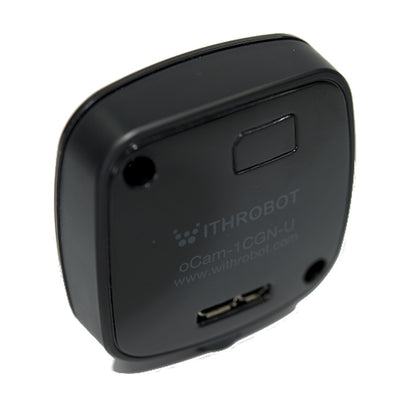

oCam-1CGN-U Plus 1MP USB 3.0 Color Global Shutter Camera

Out of Stock, can be pre-ordered

Out of stock

The oCam 1CGN-U Plus is a global shutter color camera with high speed capture up to 160fps @ 320x240. It is UVC compliant and has a changeable standard M12 lens.

USB 3.0 cable is NOT INCLUDED. If needed, please add a USB 3.0 cable from the "Recommended Accessories" section.


  • Sensor: OnSemi AR0134 CMOS image sensor
  • Color output via Bayer GRBG format
  • Lens: Standard M12 Lens with focal length of 3.6mm (changeable)
  • FOV: 65 Degree at full resolution of 1280x960, 640x480 is the same FOV due to binning (images of less resolution (1280x720m 320x240) are cropped from the full resolution image, and therefore have a narrower FOV)
  • Image sensor size: 0.33inch
  • Shutter: Electric Global Shutter
  • Interface: USB 3.0 Super-Speed
  • Supported OS: Linux, Plug-and-Play by UVC(USB Video Class) Protocol.
  • Power: USB BUS Power (Rating : 5V/180mA)
  • Operating Temperature: 0°C ~ + 70°C
  • Camera Control: Gain, White Balance Blue, White Balance Red, Exposure
  • Frame Rate: USB3.0 - 1280x960@45fps, 1280x720@60fps, 640x480@80fps, 320x240@160fps; USB2.0 - 1280x960@22.5fps, 1280x720@30fps, 640x480@80fps, 320x240@160fps
  • PCB Size: 39 x 39mm
  • Case Size: 42 x 42 x 17mm
  • Weight: 33.5gram approx. (Including protective case)

Warranty is valid for two weeks, starting upon date of receipt.
