ODROID-M1S Lite 2GB

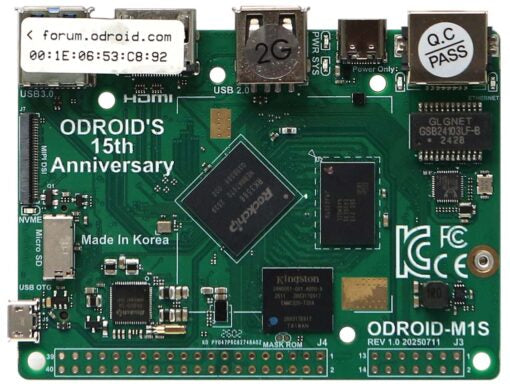

The ODROID-M1S Lite is a slimmer, lower-power RK3566 single-board computer with 2GB LPDDR4 RAM and soldered 32GB eMMC. It keeps the practical M1S layout — Gigabit Ethernet, HDMI 2.0, M.2 NVMe, USB 3.0, and extra GPIO — at a lower entry price. Case and power adapter are not included. Hardkernel plans to supply this platform until at least 2036. GPIO pins can be added for $5 extra, just reach out to us.
KEY FEATURES
- Rockchip RK3566 quad-core Cortex-A55 at 1.8 GHz
- 2GB LPDDR4 RAM
- 32GB eMMC soldered on board
- M.2 NVMe slot (PCIe 2.1 x1)
- Gigabit Ethernet
- HDMI 2.0 up to 4K@60Hz
- USB 3.0 + USB 2.0 + micro USB OTG
- 0.8 TOPS NPU
- Low power — about 1.1W idle, about 3.5W under CPU stress
- Long-term availability through at least 2036
SPECIFICATIONS
| Category | Details |
|---|---|
| Form Factor | 90 × 65 × 16 mm Weight: 52 g including heatsink |
| Processor | Rockchip RK3566 Quad-core Cortex-A55 @ 1.8 GHz ARMv8-A with Neon and Crypto extensions Mali-G52 GPU, 2 execution engines @ 800 MHz |
| NPU | 0.8 TOPS @ INT8 RKNN NPU Supports Caffe / TensorFlow / TFLite / ONNX / PyTorch / Keras / Darknet |
| Memory | 2GB LPDDR4, 32-bit bus 2112 MT/s, up to 1,055 MHz |
| Storage | 32GB eMMC soldered on the PCB 1 × microSD slot (UHS-I SDR104; boot priority higher than eMMC) 1 × M.2 M-Key NVMe (PCIe 2.1 x1) |
| Networking | 1 × Gigabit Ethernet (RTL8211F) 10/100/1000 Mbps |
| Video | 1 × HDMI 2.0 (up to 4K@60Hz with HDR) 1 × MIPI DSI (30-pin, 4-lane) |
| External I/O | 1 × USB 2.0 host 1 × USB 3.0 host 1 × USB 2.0 micro OTG 1 × Debug UART 40-pin GPIO and 14-pin GPIO (optional headers) |
| Other | RTC backup battery connector Power LED (red) and Alive LED (blue) |
| Power | USB-C power only, 4.9V–5.3V 5V / 3A adapter recommended Idle ≈ 1.1W CPU stress ≈ 3.52W Power off ≈ 0W |
What's Included:

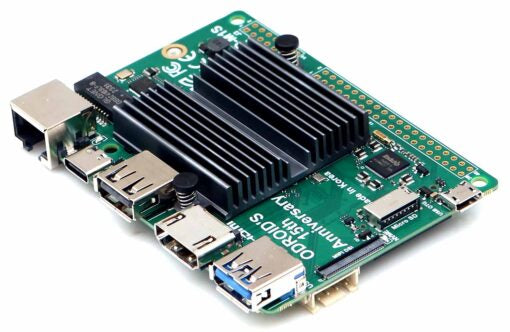

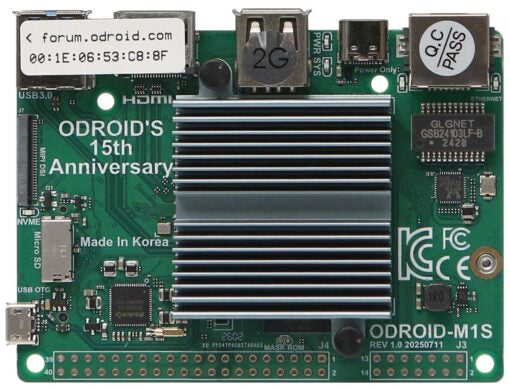

- 1 × ODROID-M1S Lite board (2GB RAM / 32GB eMMC) with heatsink
NOTES
- This is the Lite version: 2GB RAM and 32GB eMMC
- Case and power adapter are not included
- GPIO pin headers are optional
- The M.2 slot supports NVMe / PCIe only — M.2 SATA drives are not supported
- A 5V / 3A USB-C power adapter is recommended
- ODROID-M1 OS images are not drop-in compatible; M1S images are required
- Some Silicon Power NVMe drives may not be fully compatible
