OKdo DEBIX Infinity SBC
OKdo DEBIX Infinity SBC
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Description ▼

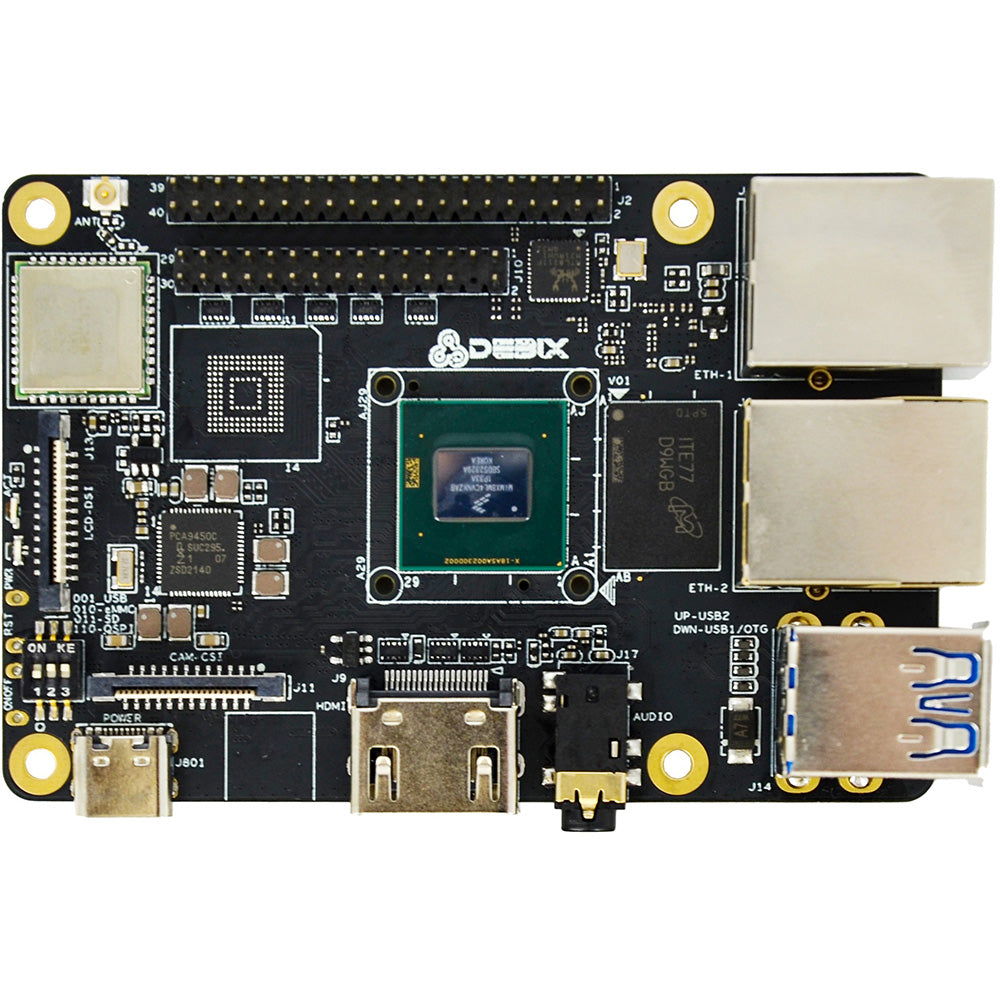

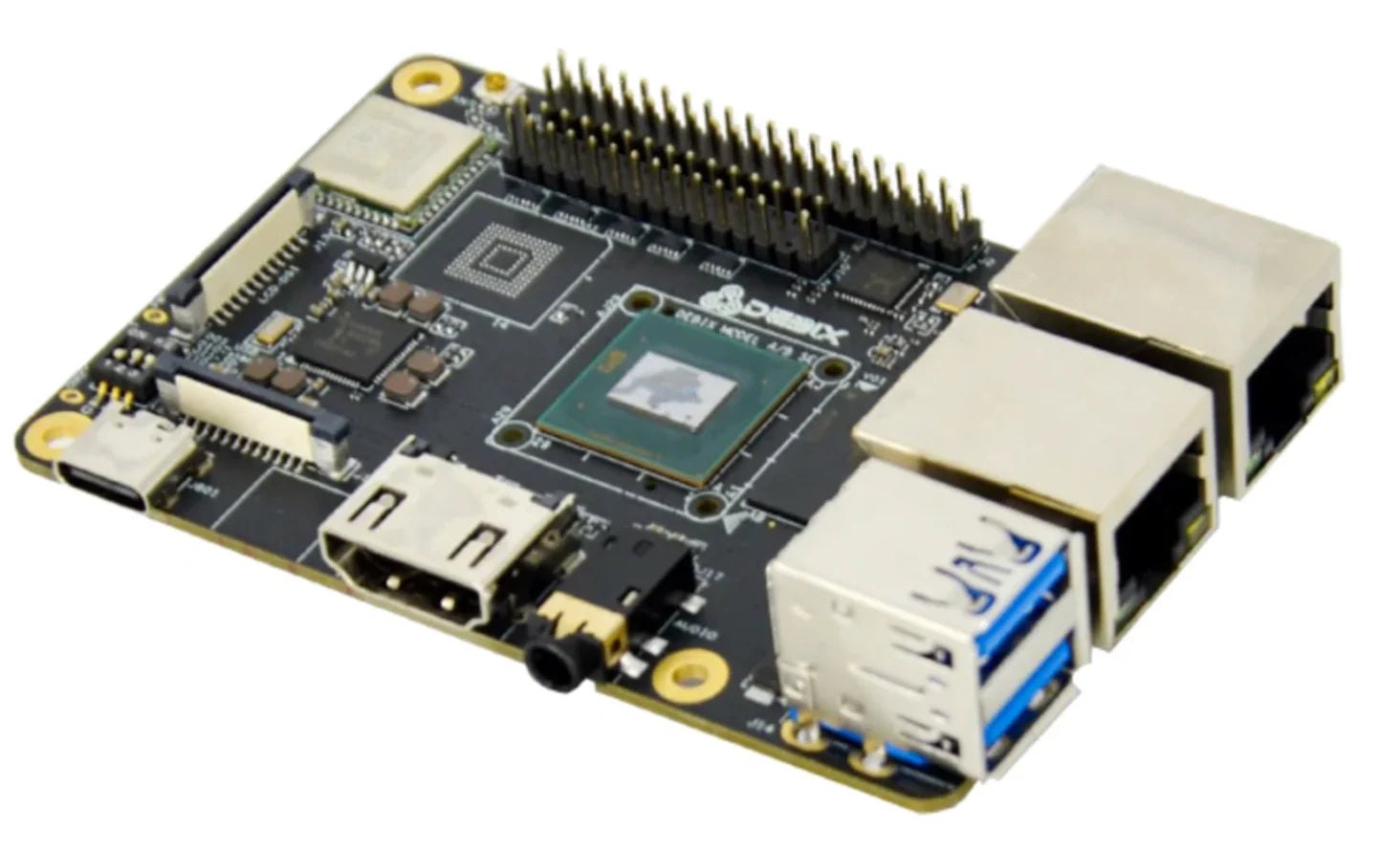

The OKdo INFINITY D4E32 (DEBIX Infinity) is a robust industrial single board computer based on the NXP i.MX 8M Plus Quad Lite processor. Designed for demanding applications such as Industry 4.0, edge computing, smart robotics, IoT gateways, and real-time control systems, it delivers a perfect balance of performance, connectivity, and industrial-grade reliability.
This model features 4GB LPDDR4 RAM and 32GB eMMC storage, dual Gigabit Ethernet (one with TSN support), Wi-Fi 6 + Bluetooth 5.2, USB 3.0, HDMI, and multiple industrial interfaces including CAN FD — all in a compact 85mm × 56mm form factor with wide operating temperature support.
KEY FEATURES
- Powerful Processing: NXP i.MX 8M Plus Quad Lite with 4× Arm Cortex-A53 cores up to 1.6 GHz and integrated Cortex-M7 for real-time control.
- Industrial-Grade Reliability: Wide temperature range design, suitable for harsh environments in automation, transportation, and industrial control.
- Rich Connectivity: Dual Gigabit Ethernet (one with TSN and PoE support), Wi-Fi 6 (2.4/5 GHz) + Bluetooth 5.2, 2× USB 3.0, HDMI output.
- Expansion Flexibility: PCIe Gen3, MIPI CSI/DSI, LVDS, multiple UART/I2C/SPI/CAN/GPIO interfaces, and 40-pin header compatibility.
- Onboard Storage: 32GB eMMC + microSD slot for flexible storage options.
- Versatile OS Support: Android, Ubuntu, Debian, Yocto, Windows 10 IoT Enterprise, and more.
SPECIFICATIONS
| Product Name | OKdo INFINITY D4E32 (DEBIX Infinity) |
| CPU | NXP i.MX 8M Plus Quad Lite – 4× Cortex-A53 @ 1.6 GHz + Cortex-M7 core |
| Memory | 4 GB LPDDR4 |
| Storage | 32 GB eMMC + microSD card slot |
| Graphics | Integrated GC7000UL 3D GPU |
| Networking | 2× Gigabit Ethernet (1× with TSN support, PoE ready with optional module) |
| Wireless | Wi-Fi 6 (2.4 GHz & 5 GHz) + Bluetooth 5.2 (NXP 88W8987) with external IPEX antenna connector |
| USB | 2× USB 3.0 Host Type-A (one configurable as OTG) |
| Video Output | 1× HDMI, 1× LVDS (single/dual channel), 1× MIPI DSI (4-lane) |
| Camera Input | 1× MIPI CSI (4-lane) |
| Expansion | 1× PCIe Gen3 x1, 40-pin GPIO header, multiple UART/I2C/SPI/CAN FD |
| Audio | 1× 3.5mm headphone + mic combo jack |
| Power Supply | DC 5V / 3A via USB Type-C |
| Dimensions | 85.0 mm × 56.0 mm (±0.5 mm) |
| Operating Temperature | -20°C to +70°C (wider range optional on some variants) |
| OS Support | Ubuntu, Debian, Yocto, Android 11, Windows 10 IoT Enterprise, OpenWRT, FreeRTOS |
WHAT'S INCLUDED
- 1 × OKdo INFINITY D4E32 Single Board Computer
- Wi-Fi antenna (IPEX)
- User Guide / Documentation
NOTES
- Ideal for industrial automation, edge AI, gateways, and real-time control applications.
- PoE functionality requires an optional PoE module.
- Excellent thermal design and robust I/O make it suitable for 24/7 operation in demanding environments.
