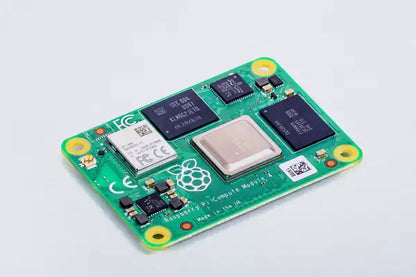

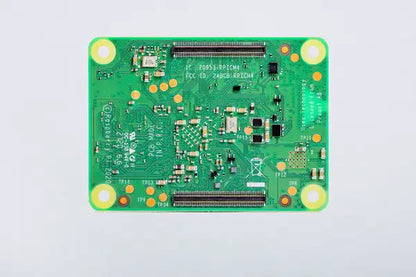

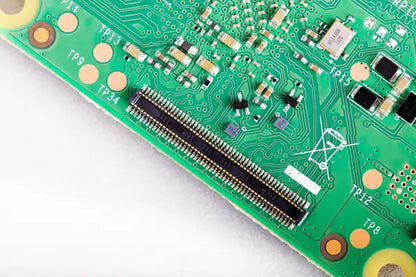

Raspberry Pi Compute Module 4 (CM4)

Raspberry Pi Compute Module 4 (CM4)

$54.95 - $129.95
$54.95
$54.95 - $129.95
$54.95
Availability:
In-Stock
Availability:
Low stock
Availability:
In-Stock
Availability:
In-Stock

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.

SPECIFICATIONS

Specification Details
Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory 1GB LPDDR4
Connectivity
  • Onboard Gigabit Ethernet PHY supporting IEEE1588
  • 1 × USB 2.0 interface
  • PCIe Gen 2 x1 interface
  • 28 GPIO signals
  • SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
Video
  • Dual HDMI interface (up to 4Kp60 supported)
  • 2-lane MIPI DSI display interface
  • 2-lane MIPI CSI camera interface
  • 4-lane MIPI DSI display interface
  • 4-lane MIPI CSI camera interface
Multimedia H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power 5V DC
Operating temperature 0 to +80°C
Dimensions 55 mm × 40 mm
Production lifetime Raspberry Pi Compute Module 4 will remain in production until at least January 2028
Compliance For a full list of local and regional product approvals, please visit:
www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
SKU C0151
RAM: 2GB
eMMC: 8GB
Wireless: No WiFi/BT
