ROCK 4SE 4GB
ROCK 4SE 4GB
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

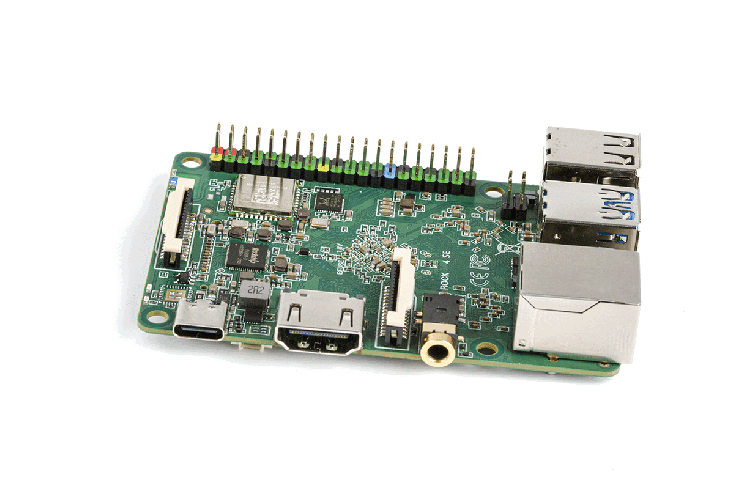

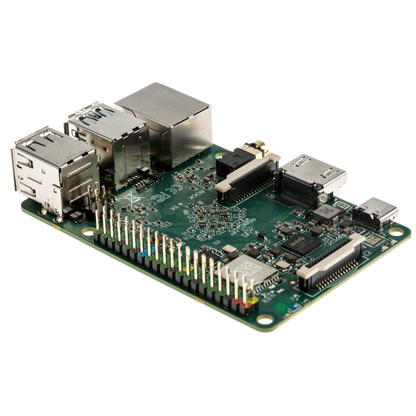

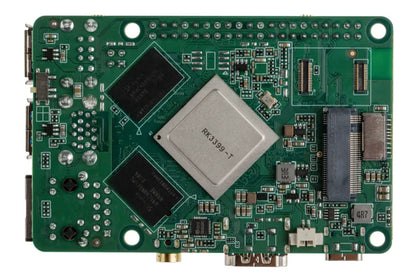

The ROCK 4 SE 4GB is a powerful Single Board Computer, equipped with a Rockchip RK3399-T ARM Cortex-A72 + Cortex-A53 chipset and 4GB RAM. This cutting-edge processor allows for blazingly fast performance, while the 4GB RAM provides the multitasking abilities necessary for smooth operation. Enjoy incredible power and efficiency with the ROCK 4 SE 4GB.
FEATURES
- ROCK 4 SE - a robust, versatile special edition single-board computer
- Based on a high-performing Hexa-core Rockchip RK3399-T processor
- Hexa-core processor with big.LITTLE™ Arm® Dual Cortex-A72® CPU, Quad-core Cortex-A53 and Arm Mali™ - T860MP4 GPU
- Available in a 4GB 64bit LPDDR4 RAM option
- Expandable with eMMC module or SSD through m.2 connector
- Onboard RTC, WiFi, Bluetooth, Antenna, Audio jack (headphone and headset), 4K HDMI port
SPECIFICATIONS
| ROCK 4 SE Board | |
| SOC | Rockchip RK3399-T |
| Processor | Arm® big.LITTLE™ technology (Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz) |
| GPU | Arm Mali™ – T860MP4 GPU, supporting OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11 |
| Memory | Dual channel (64bit) 4GB LPDDR4 RAM |
| Power Req | USB Type-C™ PD/QC 9-12V |
| HDMI | 1 x 4k@60fps HDMI |
| USB | 2 x USB 2.0 1 x USB 3.0, 1 x USB 3.0 OTG (Switchable) |
| Audio Ports | 3.5mm jack, analogue stereo output, microphone input |
| Connectivity | WiFi 5/BT 5.0, BLE, Gigabit Ethernet |
| MIPI | 1 x 2 lane DSI/1 x 2 lane CSI |
| Storage | Micro SD / M.2 (M key) / eMMC |
| EMMC | B2B connector |
| UARTS | 2 x UART |
| RTC | YES (support for external battery) |
| Software | ARMv8 Instruction Set
Debian/Ubuntu Linux support Android 7.1/Android 9.0/Android 10/Android 11 support GPU-enabled AI stack such as Caffe Hardware access/control library for Linux/Android |
| Temperature | Operation Temperature: 0~50 ℃/ Storage Temperature: -20~80 ℃ |
NOTES
- Note: We recommend using a PD or QC power supply with a maximum output of 9V or 12V.
- ameriDroid offers a 30 day warranty for this product. Manufacturer warranty might be longer and we can facilitate communication with them.
