ROCK 5 T

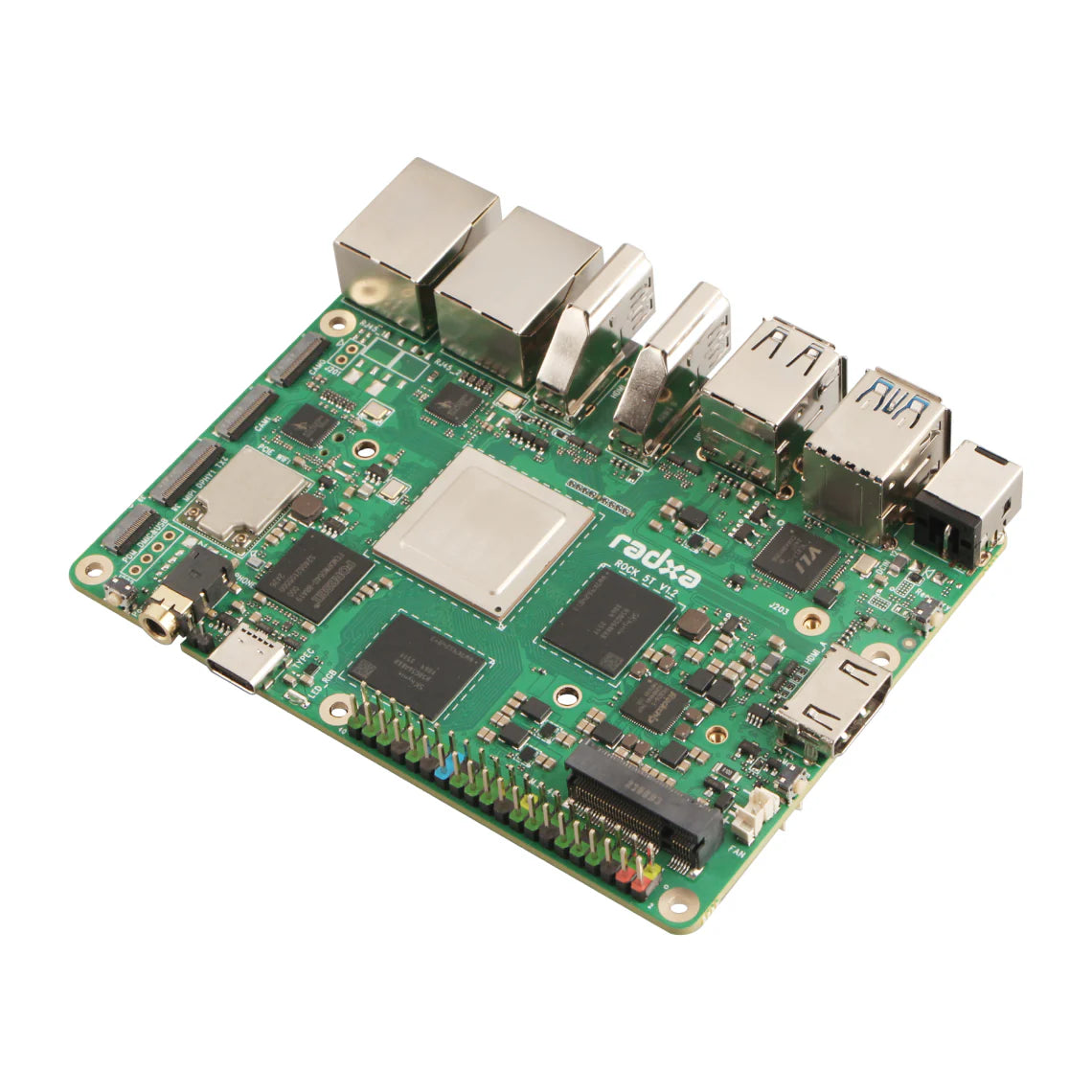

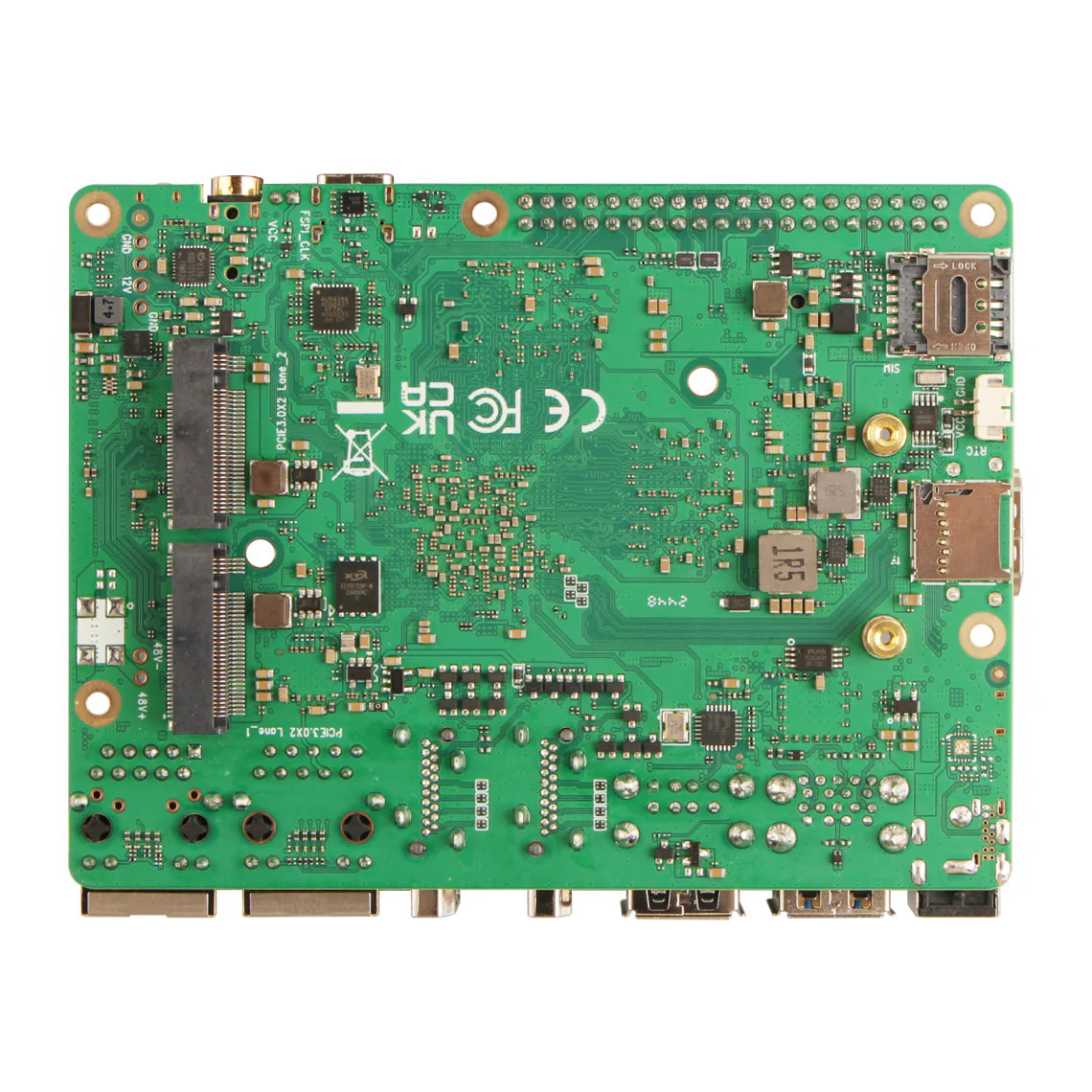

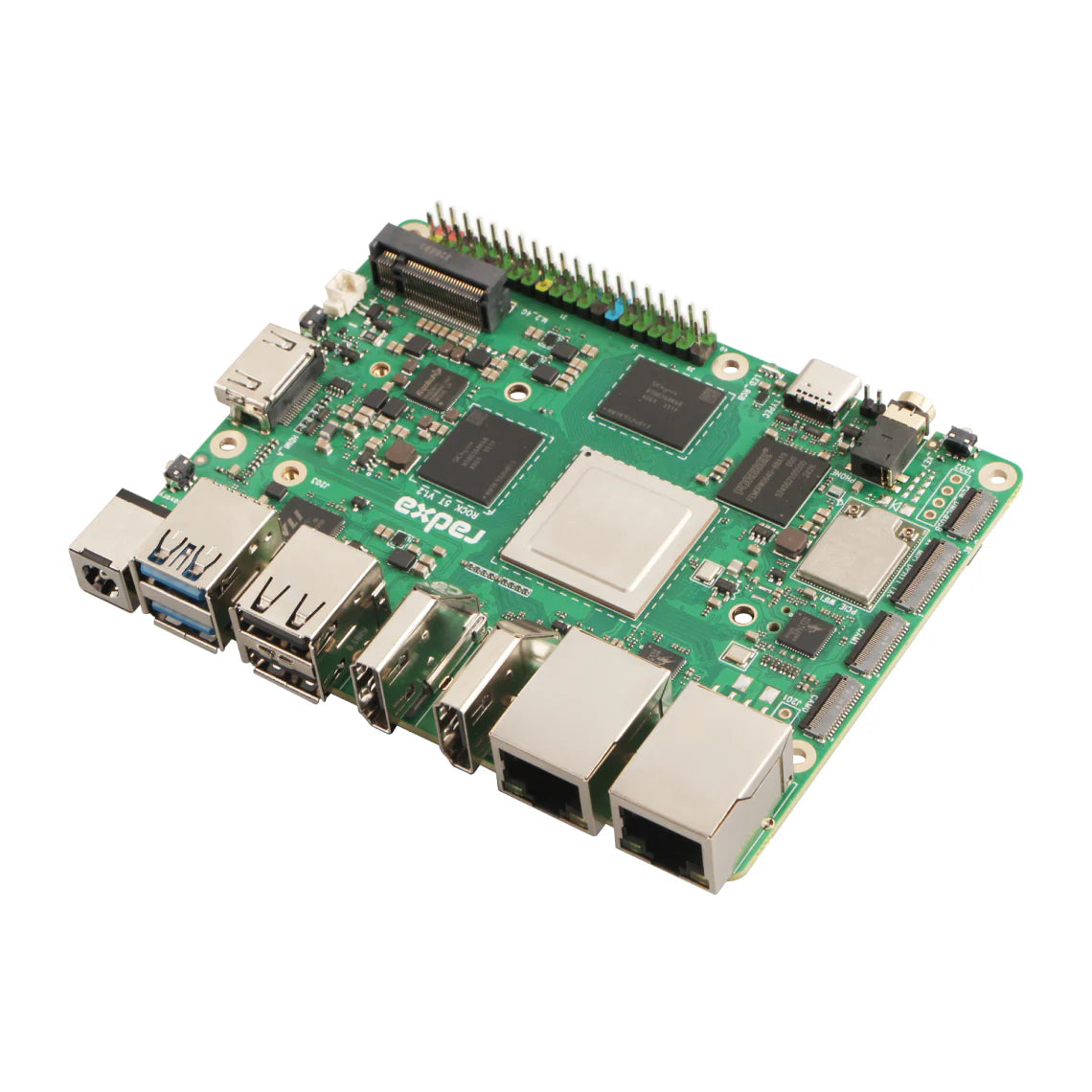

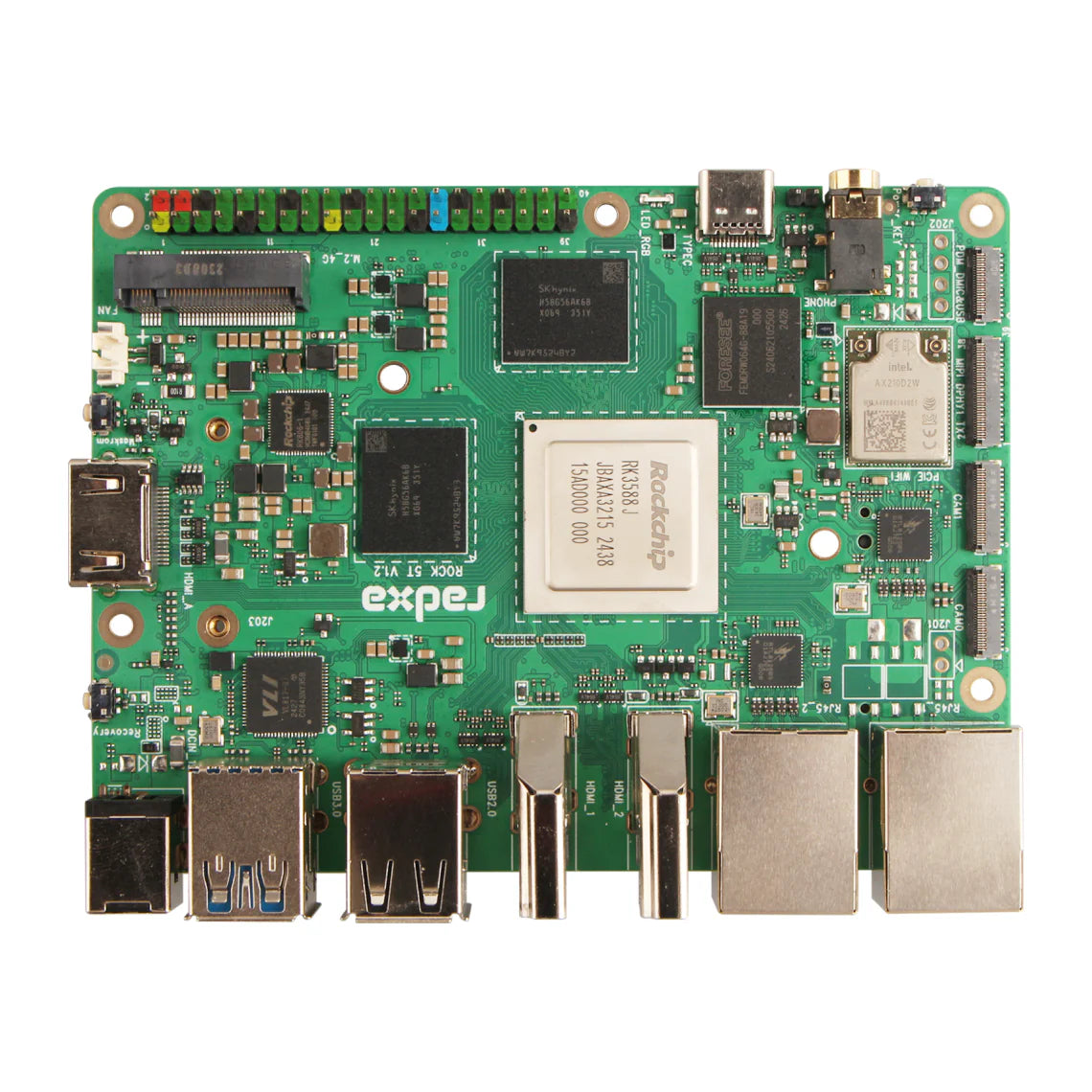

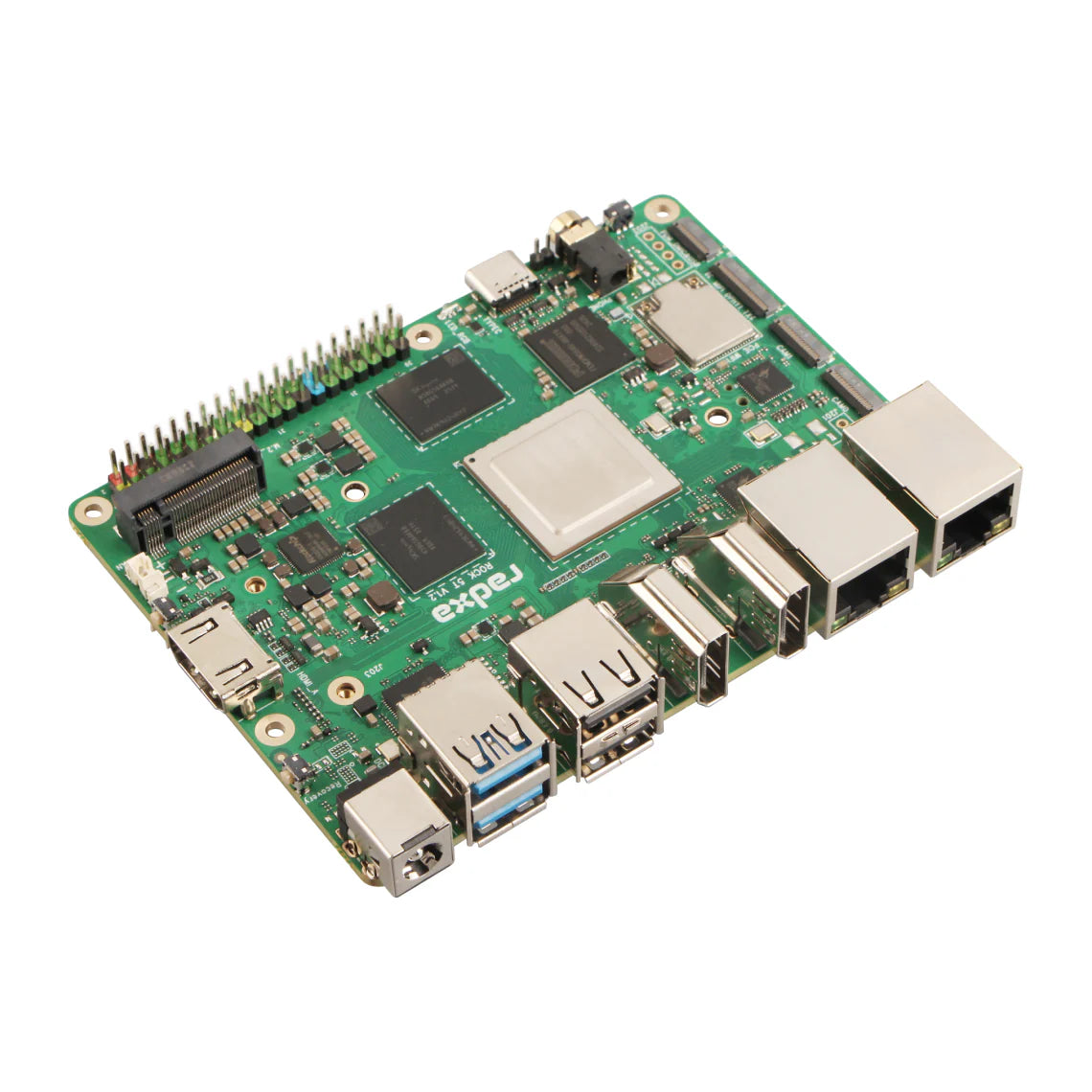

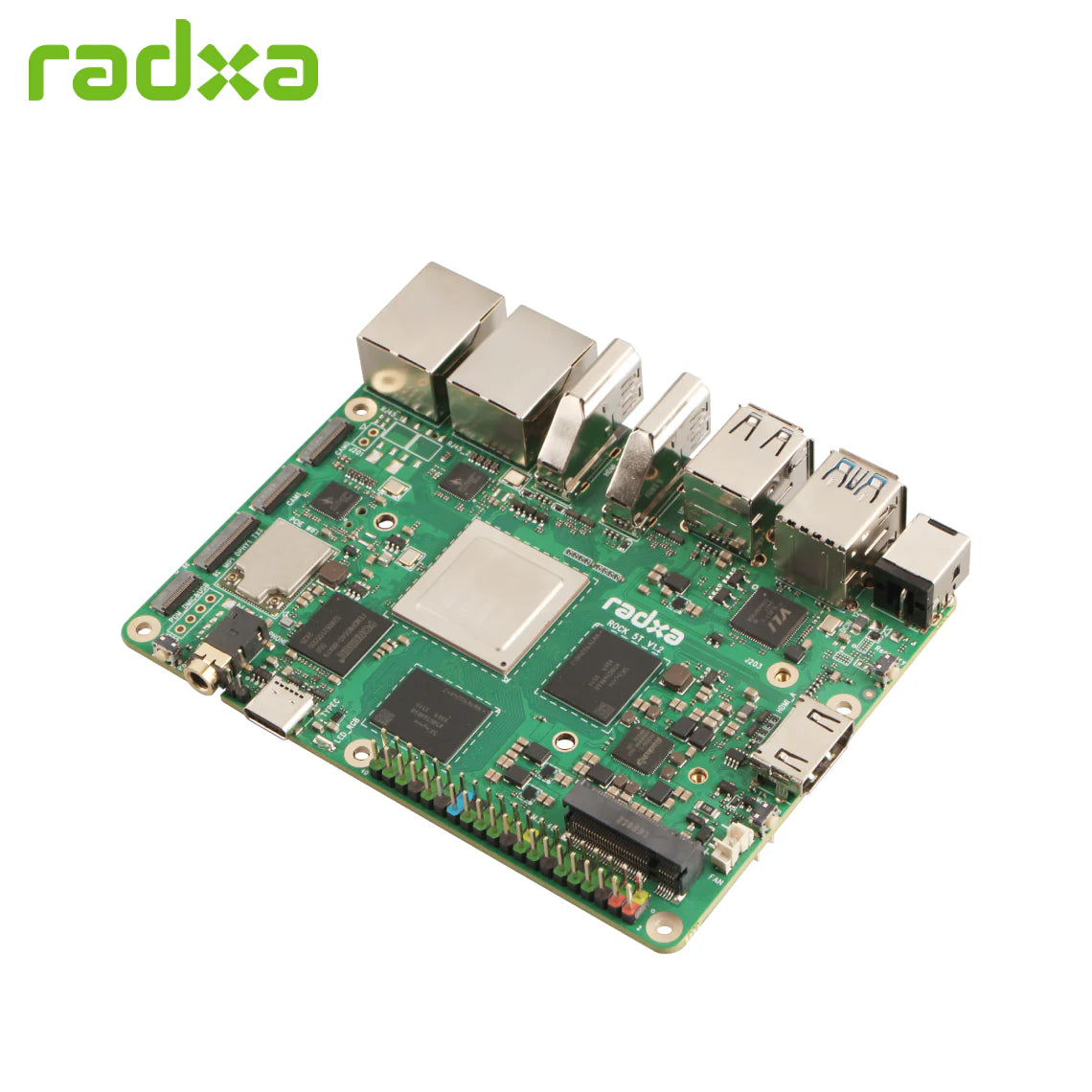

Radxa ROCK 5T (8GB RAM) — Commercial Grade RK3588 Single Board Computer

The Radxa ROCK 5T is a high-performance single board computer powered by the Rockchip RK3588 SoC. This commercial-grade variant comes with 8GB LPDDR5 RAM, no onboard eMMC, and no PoE module. It delivers desktop-class performance with dual 2.5GbE networking, dual M.2 NVMe slots, excellent multi-display support (including 8K), a 6 TOPS NPU, and rich expansion options in a compact 110 × 82 mm form factor. Ideal for edge AI, media centers, networking appliances, digital signage, and advanced maker projects.

KEY FEATURES

• Powerful RK3588 SoC: 4× Cortex-A76 (up to 2.4 GHz) + 4× Cortex-A55 (up to 1.8 GHz) for excellent multi-core performance
• 6 TOPS NPU: Hardware AI acceleration supporting INT4/INT8/INT16/FP16/BF16/TF32
• Mali-G610 MP4 GPU: Strong graphics with OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2 support
• Dual 2.5 Gigabit Ethernet: High-speed networking (PoE support available via optional HAT — not included)
• Dual M.2 NVMe Slots: Two M.2 M-Key connectors (PCIe 3.0 x2 each) for high-speed storage
• Multi-Display Ready: Up to 8K@60 + 4K@60 + additional outputs simultaneously
• HDMI Input: Capture up to 4K@60 video
• Onboard WiFi 6 + Bluetooth 5.2
• 4G/5G Ready: M.2 B-Key + SIM card slot (module sold separately)
• 40-pin GPIO compatible with Raspberry Pi HATs

SPECIFICATIONS

Processor:

• Rockchip RK3588 (Commercial Grade)
• 4× ARM Cortex-A76 up to 2.4 GHz
• 4× ARM Cortex-A55 up to 1.8 GHz

GPU & NPU:

• Arm Mali-G610 MP4
• 6 TOPS NPU (INT4/INT8/INT16/FP16/BF16/TF32)

Memory:

• 8GB 64-bit LPDDR5 (soldered)

Storage:

• No onboard eMMC (this variant)
• microSD card slot
• 2× M.2 M-Key (2280) for NVMe SSD (PCIe 3.0 x2 each)
• SPI Flash for bootloader

Networking:

• 2× 2.5 Gigabit Ethernet (RTL8125)
• One port supports optional PoE (HAT required — not included)
• Onboard WiFi 6 + Bluetooth 5.2 with antenna connectors
• M.2 B-Key + nano-SIM slot for 4G/5G modules (module not included)

Display Outputs:

• 1× HDMI 2.1 up to 8K@60
• 1× HDMI up to 4K@60
• 1× DisplayPort via USB-C (up to 4K@60)
• 1× 4-lane MIPI DSI (up to 1080p@60)
• Supports simultaneous multi-display output (up to 4 displays)

Video Input & Camera:

• 1× HDMI Input (up to 4K@60)
• 2× 4-lane MIPI CSI camera interfaces

USB & Expansion:

• 1× USB-C (USB 3.0 + DisplayPort Alt Mode + Power Delivery)
• 2× USB 3.0 Type-A
• 2× USB 2.0 Type-A
• 40-pin GPIO header (Raspberry Pi compatible)
• 3.5mm audio jack with microphone
• RTC battery connector
• PWM fan connector

Power:

• 12V DC jack (primary)
• USB-C Power Delivery supported

Dimensions & Environment:

• 110 × 82 mm
• Commercial temperature range: 0°C to 60°C

Operating System Support:

• Official Radxa OS (Debian-based)
• Ubuntu, Armbian, Android, and other community images

NOTES

• This is the commercial grade variant with 8GB LPDDR5 RAM, no onboard eMMC, and no PoE module
• Boot from microSD or NVMe SSD
• WiFi antennas, 4G/5G module, PoE HAT, and eMMC modules are optional and sold separately
• Requires a suitable 12V power supply or USB-C PD adapter
• Excellent choice for edge AI, NAS, media servers, multi-display digital signage, and high-performance embedded projects
