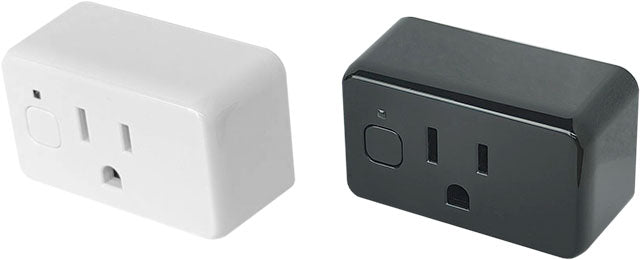

Shelly Plug Gen 4 US

Physical

Size (HxWxD):

38x64x51 mm / 1.50x2.52x2.01 inch

Weight:

64 g / 2.25 oz

Compatible plugs:

NEMA 5-15 (Type-B)

Compatible sockets:

NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)

Shell material:

Plastic

Shell color:

• White

• Black

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Glow-wire temperature:

750 °C

Pollution degree:

2

Required forced cooling:

No

Electrical

Power supply:

120 V~ 60 Hz

Power consumption:

< 1.5 W

Rated impulse-withstand voltage:

1500 V

Output circuits ratings

Max. switching voltage:

120 V~

Max. switching current:

15 A

Max. output power:

1800 W (resistive load only)

Number of switching cycles:

10000

Overvoltage category:

II

Duty-type:

S1

Switch type:

One-way

Switch configuration:

SPNO (single-pole, normally-open)

Type of circuit disconnection:

Micro

Sensors, meters

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Power and energy meters:

Yes

Internal-temperature sensor:

Yes

Light sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2401 - 2473 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5 (LE)

RF band:

2402 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocol:

802.15.4

RF bands:

2405 to 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8 MB

Firmware capabilities

Schedules:

20

Advanced schedules:

Yes

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

UDP:

Yes

Encryption:

Yes

KVS (Key-Value Store):

Yes
