StarFive VisionFive 2 w/Hailo-8L AI module
StarFive VisionFive 2 w/Hailo-8L AI module
Thank you for supporting a US-based small business!
Out of Stock! If you see a Pre-order badge and/or an Add to Cart/Preorder Now button, you can place a pre-order now!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included.
Description ▼

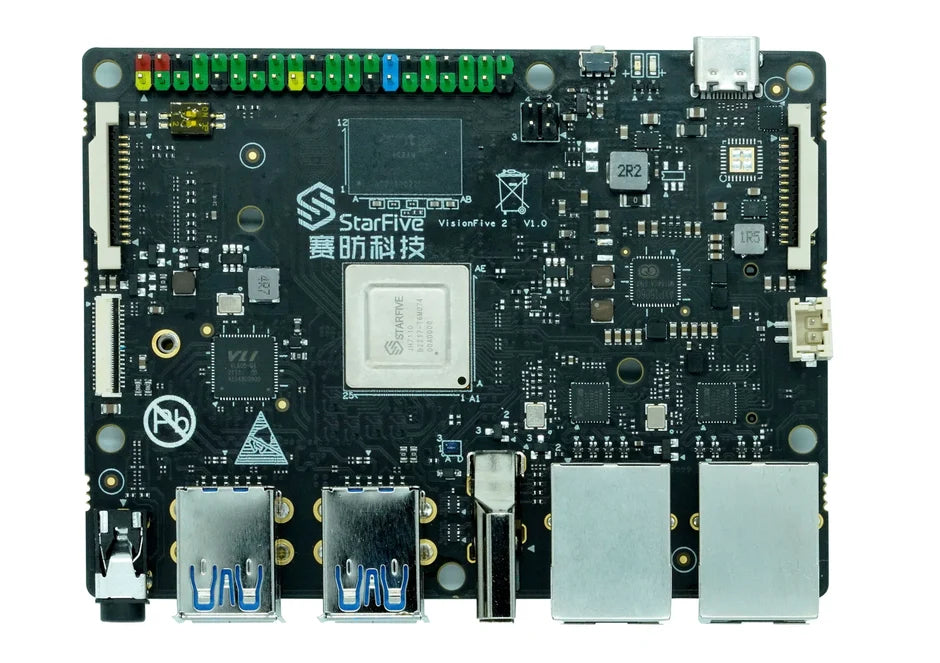

The StarFive VisionFive 2 is a quad-core RISC-V single-board computer with a built-in GPU. This unit has 8 GB LPDDR4, a Wi-Fi module with antenna, and a Hailo-8L AI accelerator (13 TOPS) fitted in the M.2 slot.
KEY FEATURES
- StarFive JH7110: four U74 RISC-V cores (RV64GC), up to 1.5 GHz, plus an S7 monitor core and 2 MB L2 cache
- IMG BXE-4-32 GPU: OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2, up to 600 MHz
- 8 GB LPDDR4
- Hailo-8L M.2 module, 13 TOPS, for local inference
- Wi-Fi module and u.FL antenna included
- HDMI 2.0 up to 4K30 or 2K60, plus MIPI DSI and a MIPI CSI camera port
- H.264/H.265 decode up to 4K60, H.265 encode up to 1080p30
- 4× USB 3.0, dual Ethernet, 40-pin GPIO, microSD, eMMC socket, 3.5 mm audio
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | StarFive VisionFive 2 (VF202080-A0-WH) |
| CPU | JH7110, 4× U74 RV64GC, up to 1.5 GHz, 2 MB L2, S7 monitor core |
| GPU | IMG BXE-4-32 MC1, up to 600 MHz |
| AI | Hailo-8L, 13 TOPS, in the M.2 slot |
| Memory | 8 GB LPDDR4 |
| Storage | microSD slot eMMC socket (module not included) M.2 used by the Hailo-8L |
| Wireless | Wi-Fi module and antenna |
| Video | HDMI 2.0, up to 4K30 or 2K60 2-lane MIPI DSI, up to 1080p30 4-lane MIPI DSI, up to 2K30 |
| Camera | 2-lane MIPI CSI, up to 4K30 |
| USB | 4× USB 3.0 USB-C for power (device mode shared with this port) |
| Network | 2× RJ45 Ethernet |
| Other | 40-pin GPIO 3.5 mm audio 2-pin fan header Reset and power buttons |
| Power | 5 V USB-C with PD, up to 30 W (supply not included) |
| Size | 100 × 72 mm |
| OS | Debian and other images from StarFive (rvspace.org) |
What's Included:
- 1 × VisionFive 2, 8 GB
- 1 × Hailo-8L AI module
- 1 × Wi-Fi module and u.FL antenna
NOTES
- This listing is the 8 GB board with Wi-Fi and the Hailo-8L module

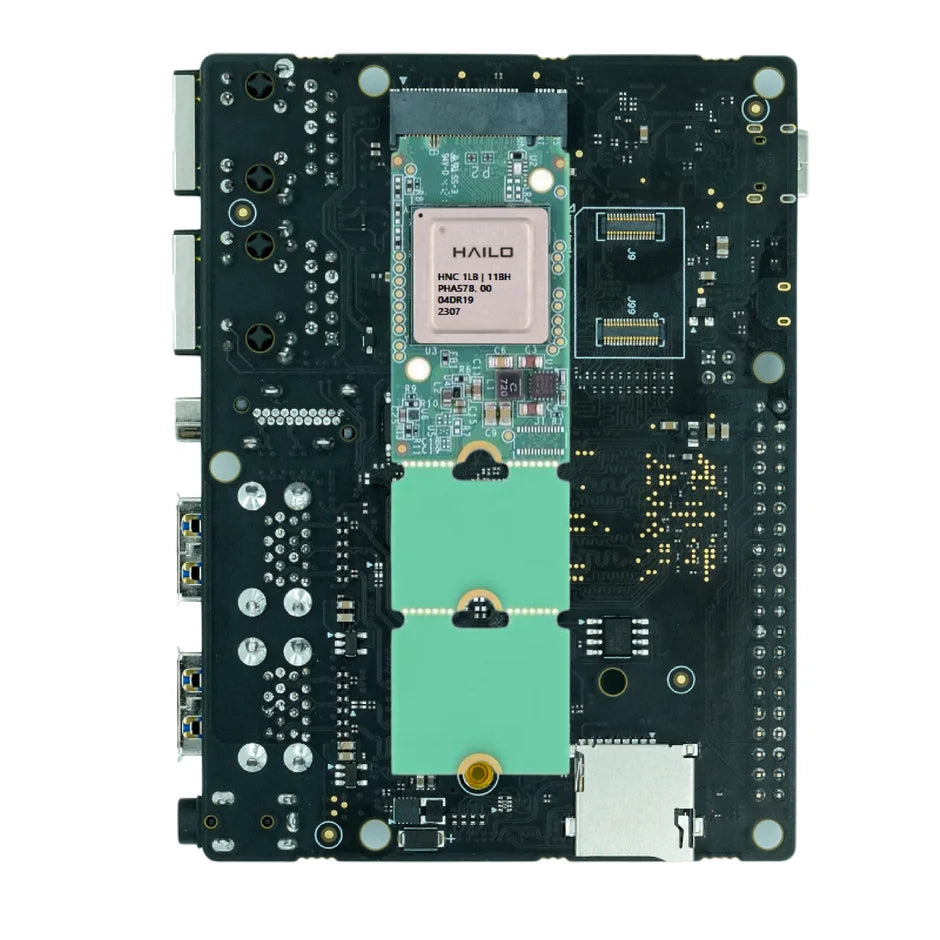

- The Hailo-8L occupies the M.2 slot, so that slot is not free for an NVMe SSD unless the module is removed
- eMMC module, microSD card, and power supply are not included
- Only one MIPI DSI port can be used for a display at a time
- PoE needs a separate HAT. It is not included
