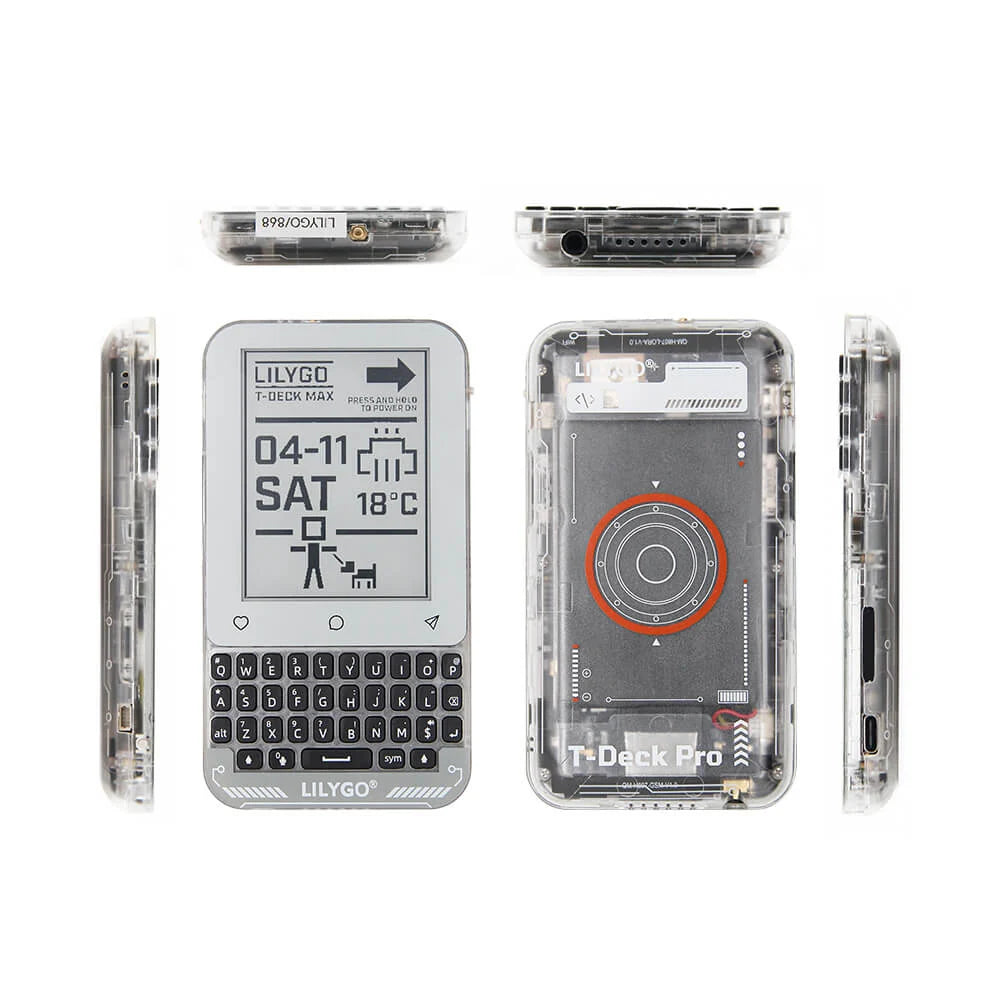

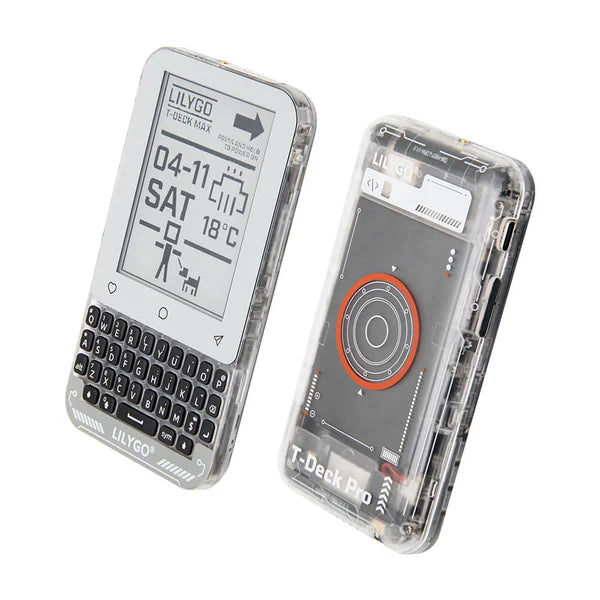

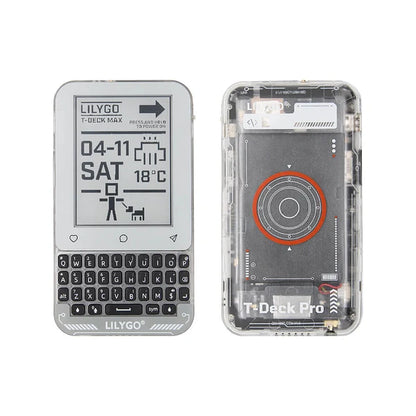

The LILYGO T-Deck Max is a keyboard handheld with an ESP32-S3, a 3.1-inch front-lit E-Paper touch screen, SX1262 LoRa, built-in 4G (A7682E), GPS, and a QWERTY keyboard. This unit is the 915 MHz [H807-01] with LILYGO firmware. The hardware is the same across firmware builds, so it can be reflashed over USB-C with LILYGO Spark or the Espressif tools.
KEY FEATURES
- ESP32-S3: dual-core LX7, 16 MB flash, 8 MB PSRAM, 2.4 GHz Wi-Fi, Bluetooth 5 LE
- 3.1" E-Paper: 320×240, front light, touch (CST3530)
- QWERTY keyboard (TCA8418), plus a haptic motor (DRV2605)
- SX1262 LoRa, 915 MHz, up to +22 dBm, internal antenna by default, switchable to an external antenna
- A7682E 4G LTE Cat 1 and MIA-M10Q GPS on the board
- Microphone, speaker, and ES8311 audio codec
- Bosch BHI260AP IMU, microSD / SIM slot, USB-C, about 1400 mAh battery
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | LILYGO T-Deck Max, 915 MHz [H807-01] |
| MCU | ESP32-S3, dual-core LX7 |
| Memory | 16 MB flash, 8 MB PSRAM |
| Display | 3.1" front-lit E-Paper, 320×240 (GDEQ031T10), touch |
| Keyboard | QWERTY |
| LoRa | SX1262, 915 MHz, up to +22 dBm, internal antenna by default |
| Cellular | A7682E 4G LTE Cat 1 |
| GNSS | MIA-M10Q |
| Audio | ES8311, microphone, speaker |
| Sensor | Bosch BHI260AP |
| Other | XL9555 IO expander, DRV2605 haptic driver |
| Battery | 3.7 V, about 1400 mAh |
| Firmware | LILYGO factory firmware (reflashable) |
What's Included:
- 1 × T-Deck Max, 915 MHz [H807-01], LILYGO firmware

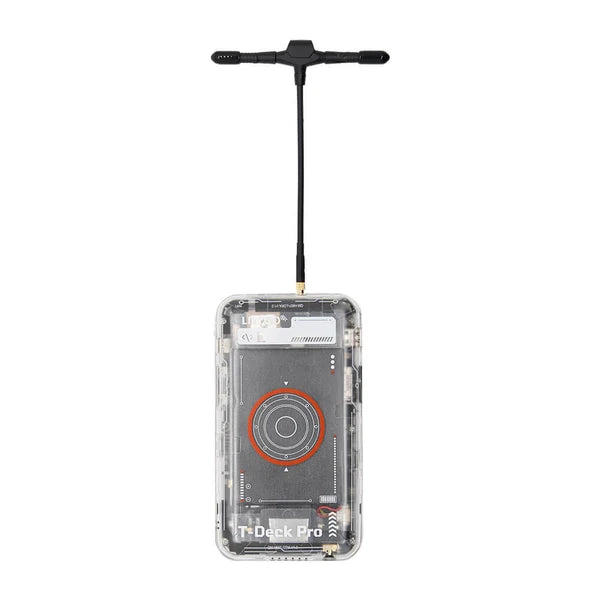

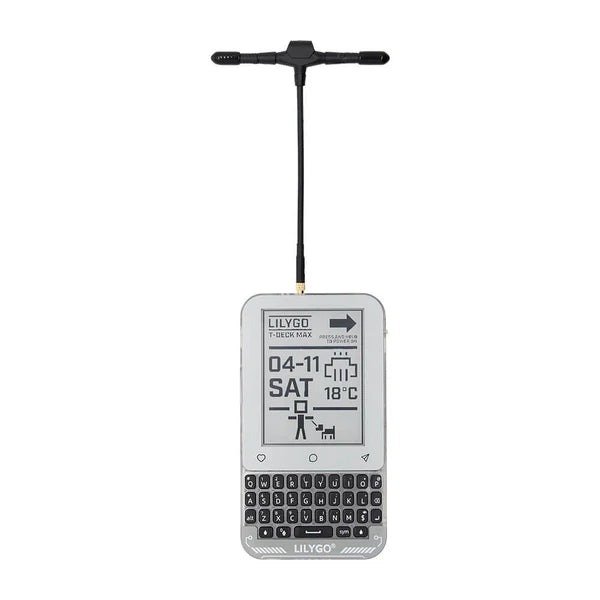

- 1 × External Antenna
NOTES
- This listing is the 915 MHz [H807-01] unit with LILYGO firmware. It is not preloaded with Meshtastic
- It can be reflashed. Hold BOOT, tap RST, release BOOT, then flash with LILYGO Spark or the Espressif download tool. Examples and pin maps are on the T-Deck MAX GitHub
- A SIM card is not included for the 4G module
- The LoRa antenna defaults to the internal antenna
