T-Deck Pro

Note: Choose the variant on this product page. We offer the T-Deck Pro at 915 MHz in three configurations: Meshtastic with the internal antenna, Meshtastic with an external antenna, and the LILYGO firmware version with an internal antenna.

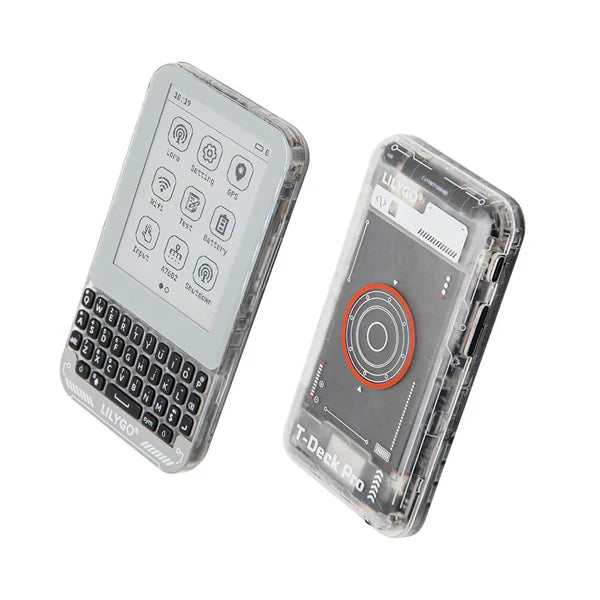

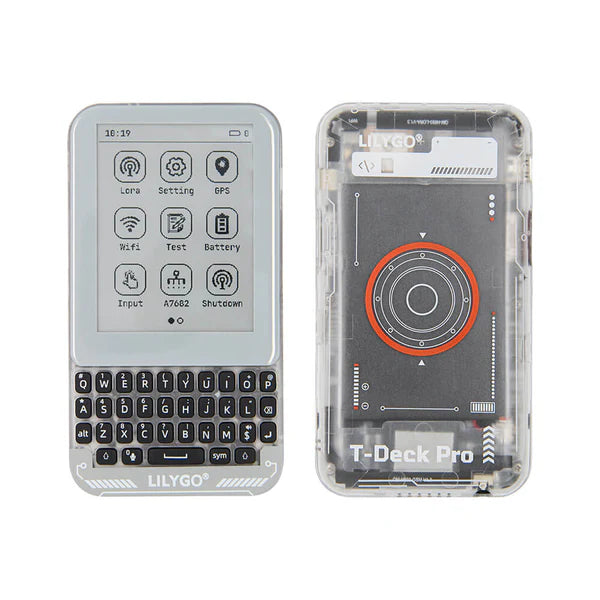

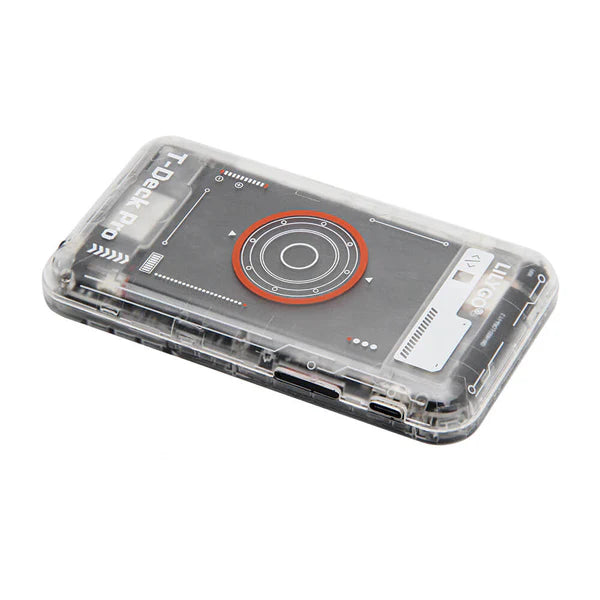

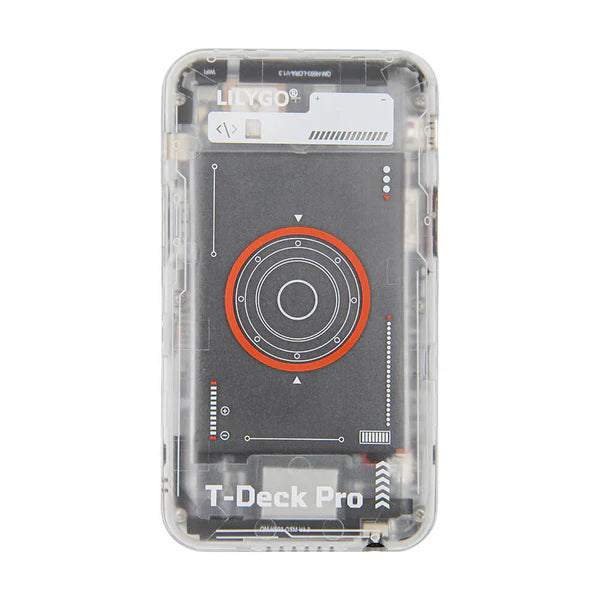

The LILYGO T-Deck Pro is a keyboard handheld built around an ESP32-S3, a 3.1-inch E-Paper touch screen, a QWERTY keyboard, and an SX1262 LoRa radio. It also has 4G (A7682E), GPS, a Bosch BHI260AP AI IMU, a microphone, a speaker, and a TF card slot. The Meshtastic variants ship with Meshtastic already installed. The LILYGO variant ships with LILYGO firmware instead.

KEY FEATURES

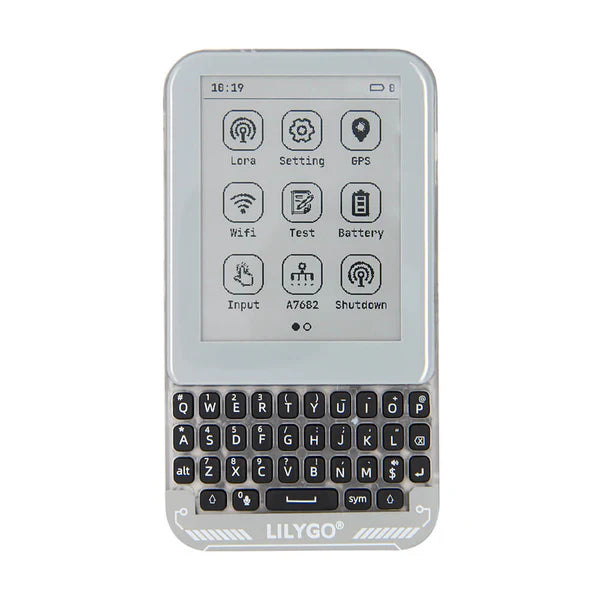

• 3.1" E-Paper Touch Display: 320×240 sunlight-readable screen with touch.
• Full QWERTY Keyboard: Physical keyboard for messages and commands.
• ESP32-S3: Dual-core, with 2.4 GHz Wi-Fi and Bluetooth 5 LE. 16 MB flash and 8 MB PSRAM.
• SX1262 LoRa, 915 MHz: Internal antenna, or an external antenna on the other two variants.
• 4G: A7682E module for cellular backup.
• GPS and AI IMU: Built-in GPS and Bosch BHI260AP.
• Audio and storage: Microphone, speaker, 3.5 mm jack, TF card slot, and a Qwiic expansion port.
• 1400 mAh battery built in.

VARIANTS

• Meshtastic, 915 MHz, internal antenna: Meshtastic pre-installed. No external antenna in the box.

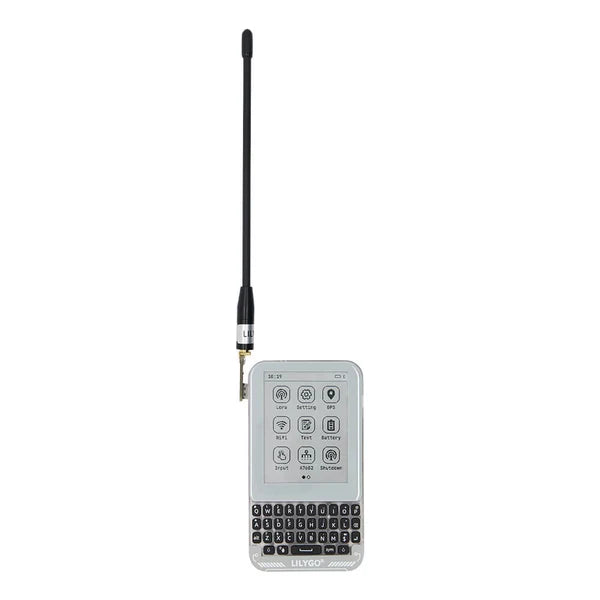

• Meshtastic, 915 MHz, external antenna: Meshtastic pre-installed, with an external LoRa antenna.
• LILYGO firmware, 915 MHz, internal antenna: LILYGO firmware, not Meshtastic (Can be reflashed to Meshtastic). No external antenna in the box..

SPECIFICATIONS

WHAT'S INCLUDED

• 1 × LILYGO T-Deck Pro (915 MHz, firmware and antenna type as selected)
• 1 × external LoRa antenna (external-antenna variants only)

NOTES

• Select the firmware and antenna on this product page.
• The internal-antenna Meshtastic/Lilygo unit does not include a separate antenna.
• A SIM is not included for the 4G module.
• Development is supported through Arduino, ESP-IDF, and the LILYGO GitHub examples.
