T5 E-Paper S3 Pro
T5 E-Paper S3 Pro
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

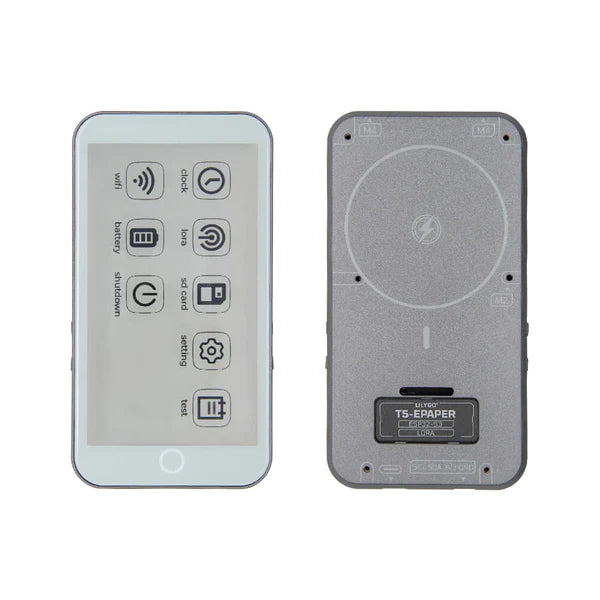

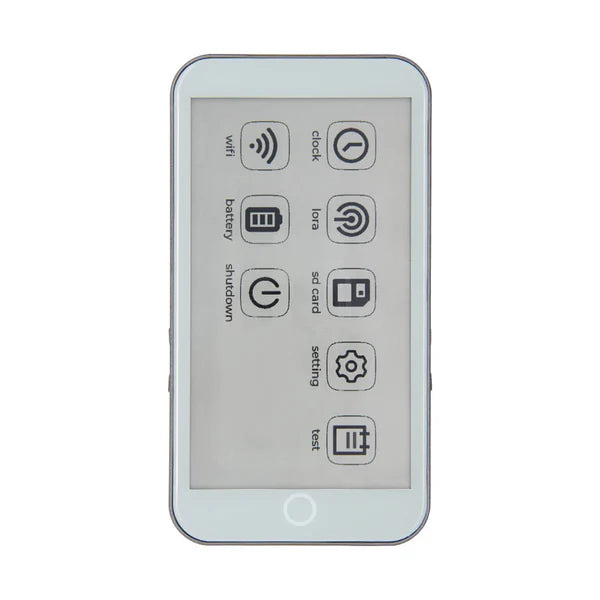

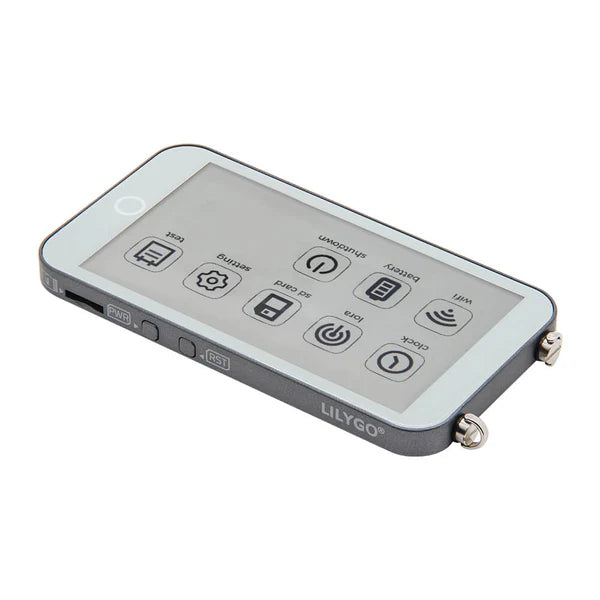

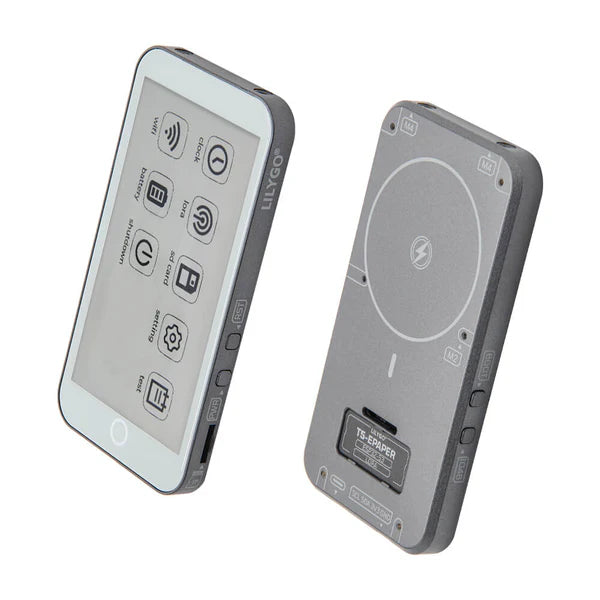

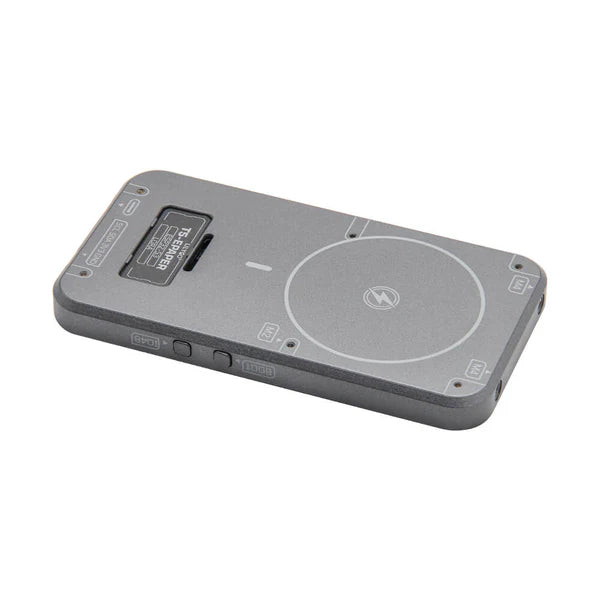

Note: This is the LILYGO T5 E-Paper S3 Pro (Lilygo firmware, 915MHz with GPS) — a powerful ESP32-S3 development board featuring a 4.7-inch E-Paper display, SX1262 LoRa, GPS, touch input, TF card slot, and RTC. Ideal for low-power IoT dashboards, digital signage, Meshtastic nodes, and e-paper projects.
The LILYGO T5 E-Paper S3 Pro is a high-performance e-paper development platform built on the ESP32-S3. It combines a large 4.7-inch touch E-Paper display, long-range SX1262 LoRa (915MHz), GPS positioning, rich storage options, and ultra-low power consumption — making it perfect for battery-powered IoT applications, digital signs, and advanced Meshtastic or MeshCore projects.
KEY FEATURES
- 4.7-inch E-Paper Display: High-resolution touch-enabled e-ink screen with excellent sunlight readability and ultra-low power.
- ESP32-S3 Processor: Powerful dual-core MCU with Wi-Fi and Bluetooth 5.0.
- SX1262 LoRa (915MHz): Long-range, low-power wireless communication.
- Built-in GPS: High-sensitivity GNSS module for accurate location tracking.
- Rich Peripherals: TF Card slot, RTC (PCF8563), capacitive touch, and battery management.
- Low Power Design: Ideal for long-term battery-powered deployments and e-paper applications.
- Expandable: Full support for Arduino IDE, ESP-IDF, and MicroPython.
SPECIFICATIONS
| Product Name | LILYGO T5 E-Paper S3 Pro (915MHz with GPS) |
| MCU | ESP32-S3 |
| Display | 4.7-inch E-Paper (Touch) |
| LoRa | SX1262 (915MHz) |
| GNSS | Built-in GPS module |
| Memory | 16MB Flash + 8MB PSRAM |
| Storage | TF Card Slot |
| RTC | PCF8563 |
| Wireless | Wi-Fi 802.11 b/g/n + Bluetooth 5.0 |
| Touch | Capacitive Touch (GT911 or similar) |
| Power | Battery management with charging support |
| Compatibility | Arduino IDE, ESP-IDF, MicroPython |
WHAT'S INCLUDED
NOTES
- Excellent for low-power e-paper dashboards, digital signage, GPS tracking, and Meshtastic/MeshCore applications.
- Ultra-low power E-Paper makes it ideal for always-on battery-powered displays.
- Full development support via Arduino, ESP-IDF, and MicroPython.
