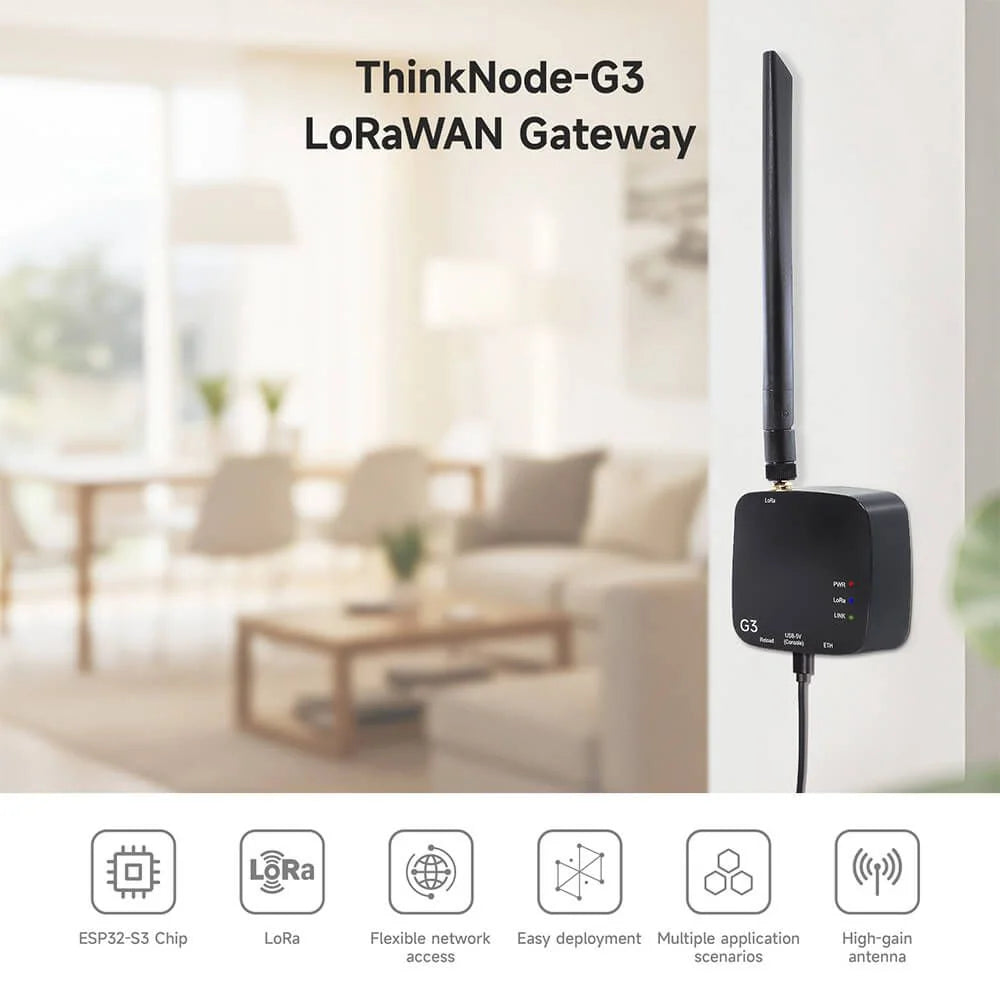

Compact single-channel LoRaWAN gateway for smart home and IoT – ThinkNode G3! This powerful yet affordable gateway combines the ESP32-S3 dual-core processor with a Semtech SX1262 LoRa transceiver to bridge LoRa devices to the internet via WiFi or Ethernet. With stable long-range communication, easy web-based configuration, and flexible mounting options, it’s the ideal entry-level LoRaWAN gateway for smart homes, agriculture, environmental monitoring, industrial IoT, and custom projects. Convert LoRa sensor data to IP seamlessly and connect your devices to the cloud without complexity.
The ThinkNode G3 is designed for LoRaWAN applications, offering:
- Single-Channel LoRaWAN Gateway: Semtech SX1262 transceiver with TCXO for high frequency stability, supporting EU868 / US915 frequencies and long-range, low-power communication.
- Powerful ESP32-S3 Core: Dual-core Xtensa LX7 processor up to 240 MHz with 8 MB PSRAM and 8 MB Flash for fast data processing and protocol conversion between LoRa and IP.

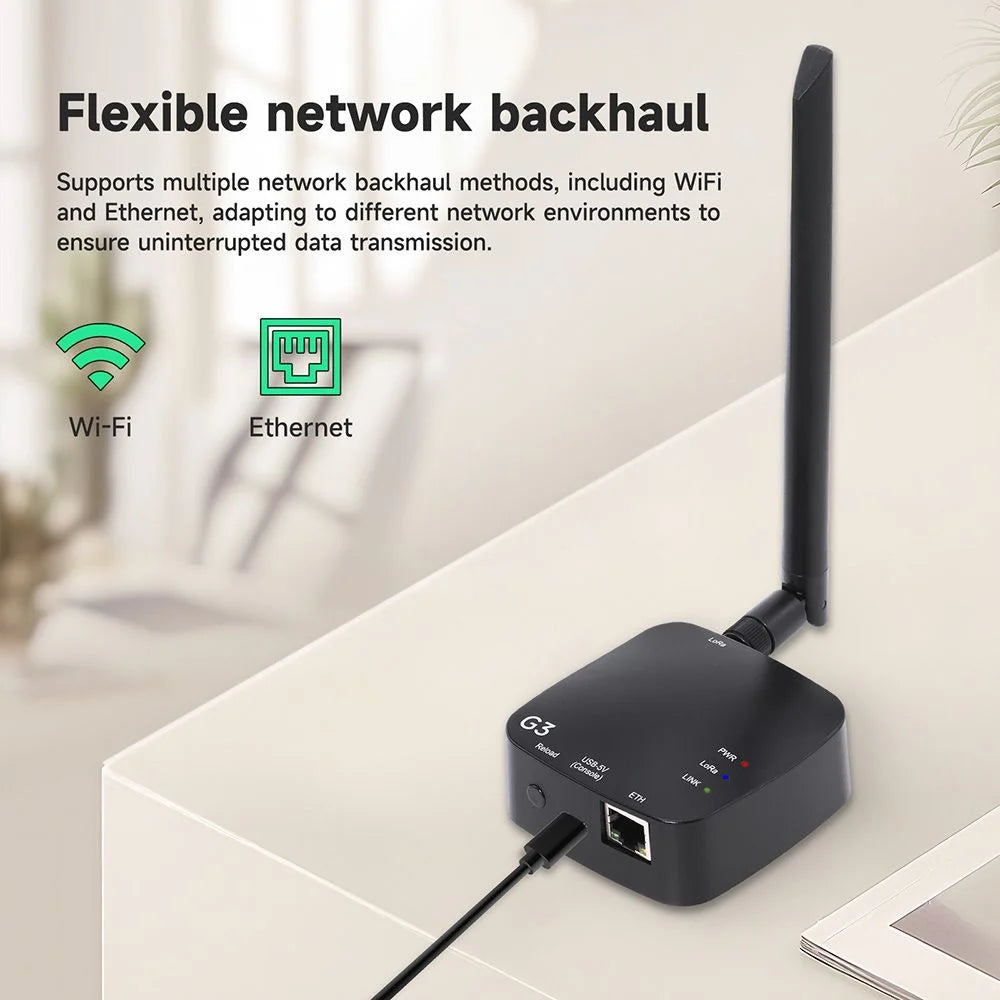

- Flexible Network Backhaul: WiFi (2.4 GHz) and Ethernet (RJ45 10/100 Mbps) connectivity for reliable internet uplink. Optional 4G module support (not yet released).

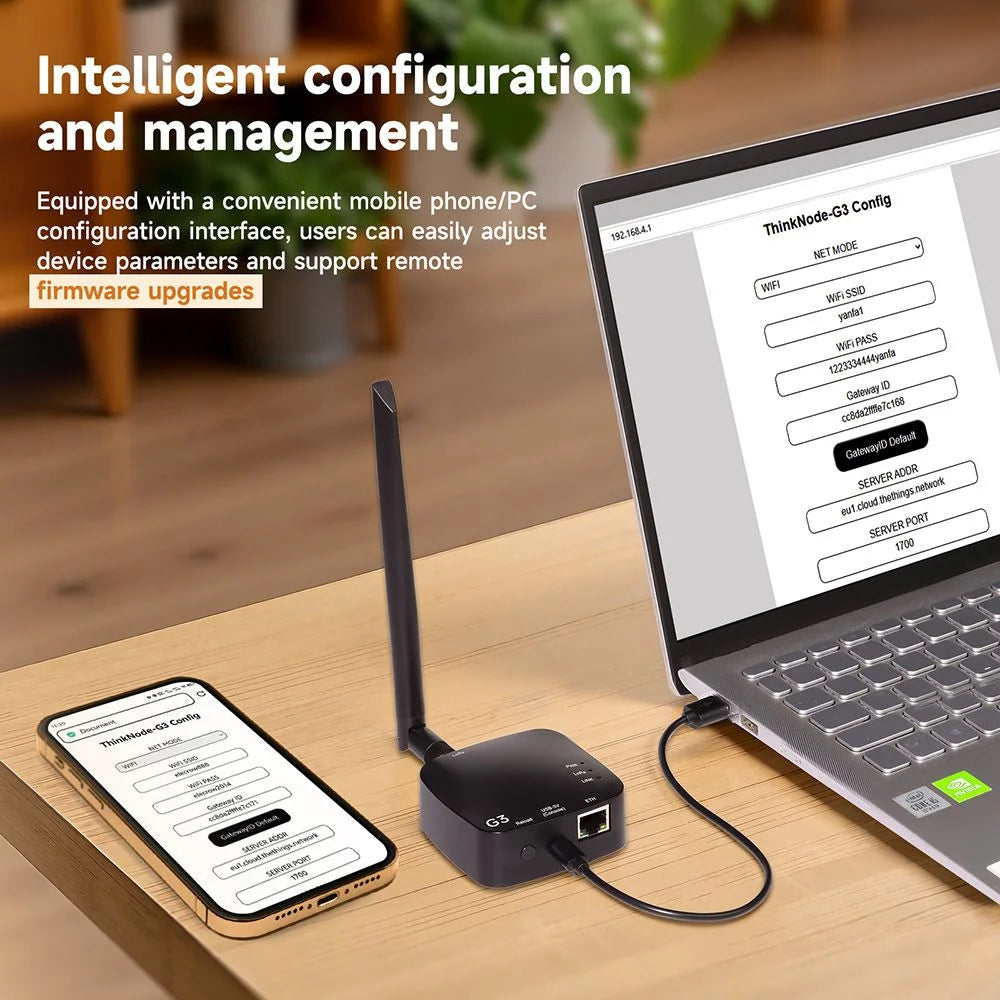

- Easy Configuration & Management: User-friendly web console accessible via phone or PC for quick LoRa parameter setup, network configuration, and remote OTA firmware upgrades.

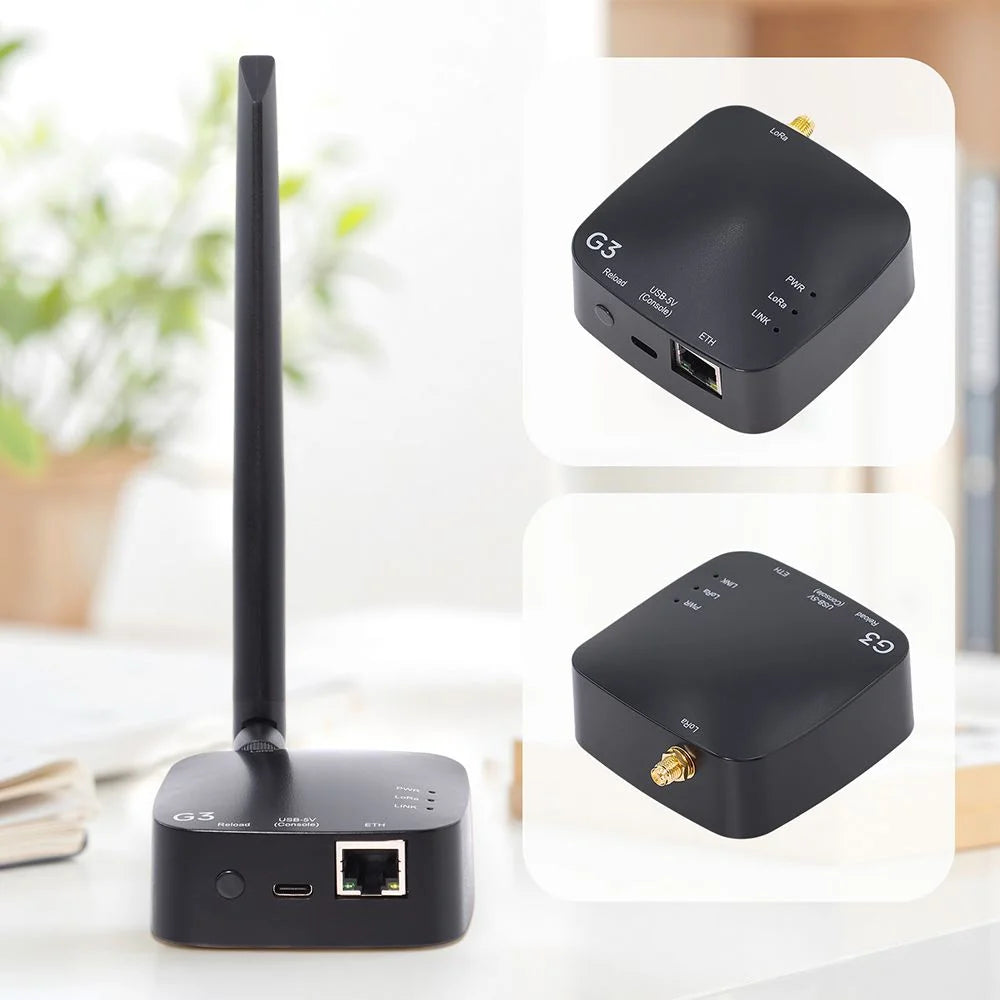

- Multi-Mount Design: Modern ABS enclosure with multi-functional fixed base/stand supporting wall mounting, desktop placement, or back-hanging installation.
- Low Power Consumption: Only ~110 mA at 5V (MCU + LoRa), making it suitable for continuous operation with USB or lithium battery power.
- Development Friendly: Full support for Arduino IDE, ESP-IDF, and MicroPython/C/C++ — perfect for custom firmware and advanced IoT projects.
- Multiple Applications: Ideal for smart home automation, smart agriculture, environmental monitoring, logistics tracking, industrial sensors, and building a private LoRaWAN network.
Specifications
| Feature | Specification |
|---|---|
| Main Processor | ESP32-S3-WROOM-1-N8R8 (Xtensa 32-bit LX7 dual-core, up to 240 MHz) |
| Memory | 512 KB SRAM, 8 MB PSRAM, 8 MB Flash, 384 KB ROM |
| LoRa Chip | Semtech SX1262 with TCXO |
| LoRa Frequency | EU868 / US915 |
| LoRa TX Power | Up to +22 dBm |
| LoRa Sensitivity | -125 dBm @125K/SF7, -139 dBm @125K/SF12 |
| Wireless Connectivity | WiFi 802.11 b/g/n (2.4 GHz), Bluetooth 5.0 + BLE |
| Network Backhaul | WiFi + Ethernet (RJ45 10/100 Mbps), optional 4G (reserved) |
| Antenna | External LoRa rubber stick antenna (RP-SMA), reserved 4G antenna port |

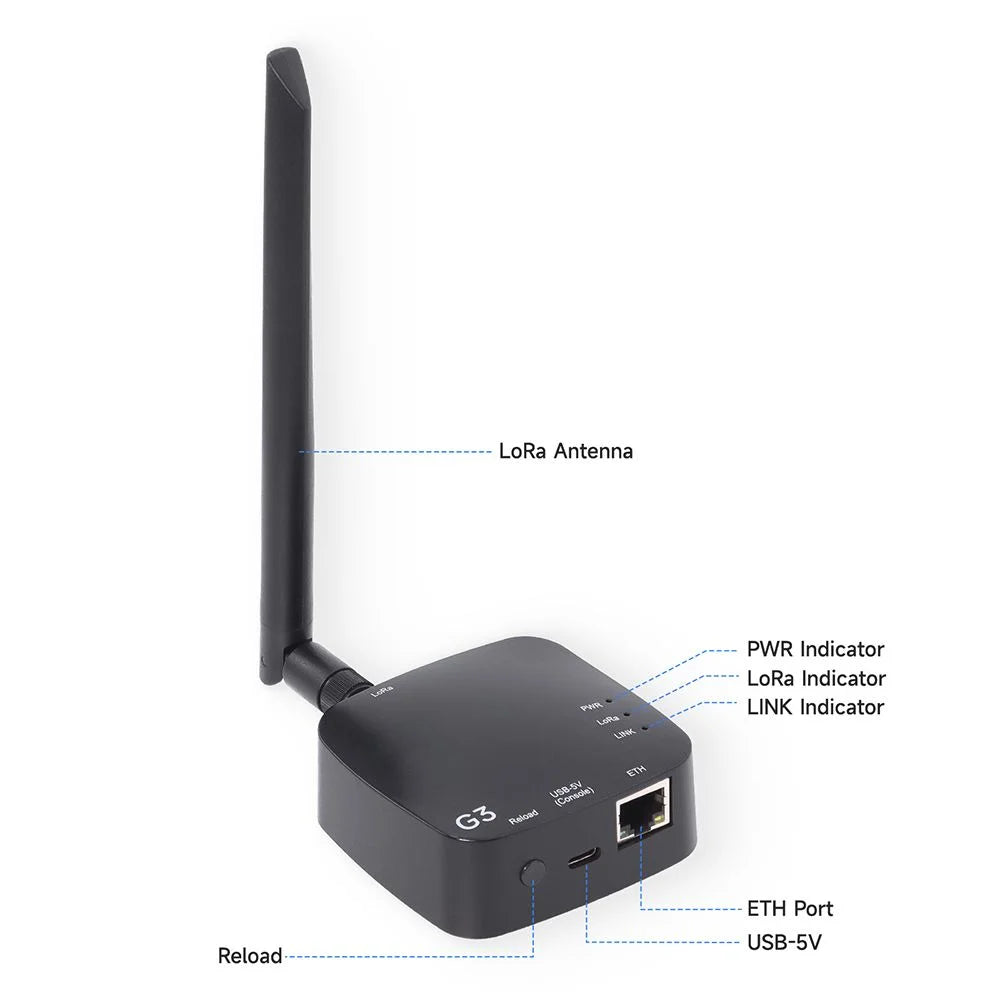

| Interfaces | USB-C (5V/1A power & debugging), RJ45 Ethernet, RP-SMA LoRa antenna |
| Buttons & Indicators | Reload button (restart/factory reset), Power / LoRa / LINK status LEDs |
| Power Supply | 5V/1A via USB-C, supports lithium battery |
| Power Consumption | ~110 mA @5V (MCU + LoRa transceiver) |
| Material | ABS enclosure |
| Size | 75 × 75 × 30 mm |
| Net Weight | 66 g |
| Operating Temperature | -20°C to +70°C |

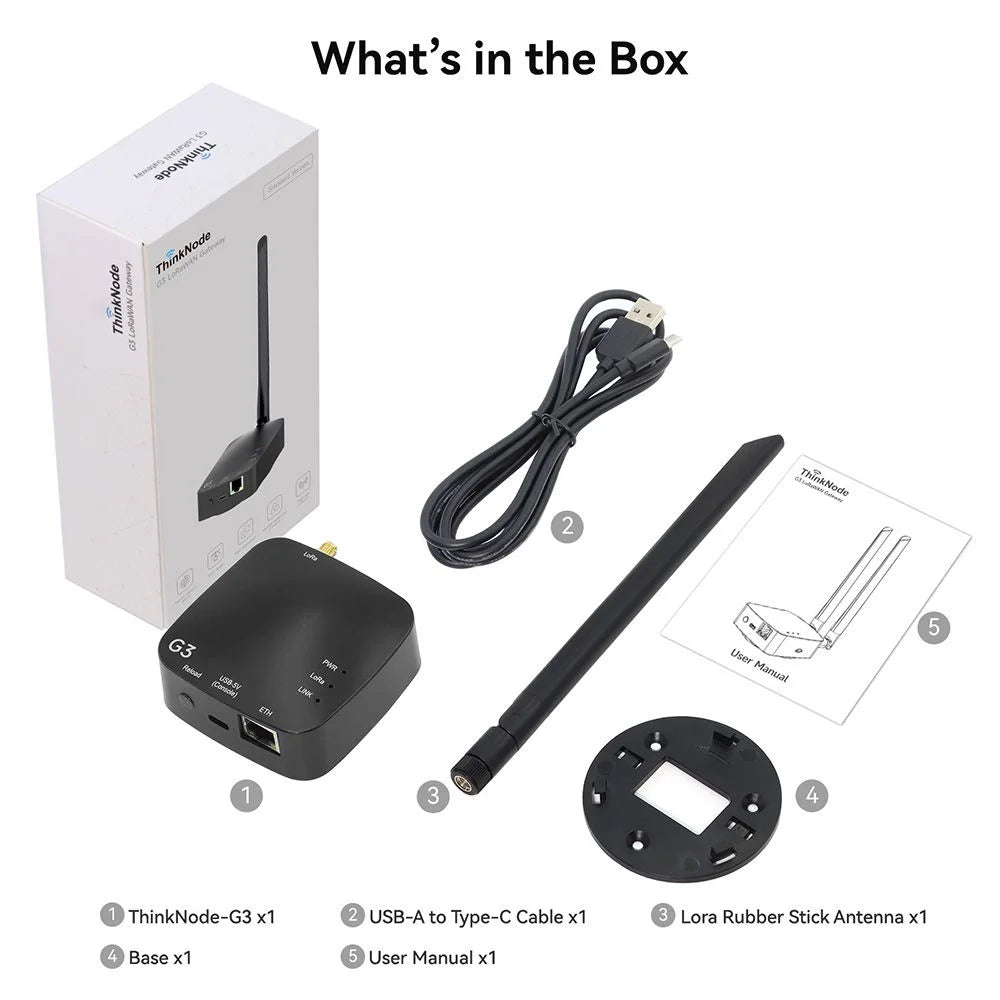

Package List:
- 1x ThinkNode G3 Single-Channel LoRaWAN Gateway
- 1x USB-A to USB-C Cable
- 1x Multi-functional Stand / Fixed Base
- 1x LoRa Rubber Stick Antenna (RP-SMA)
- 1x User Manual
