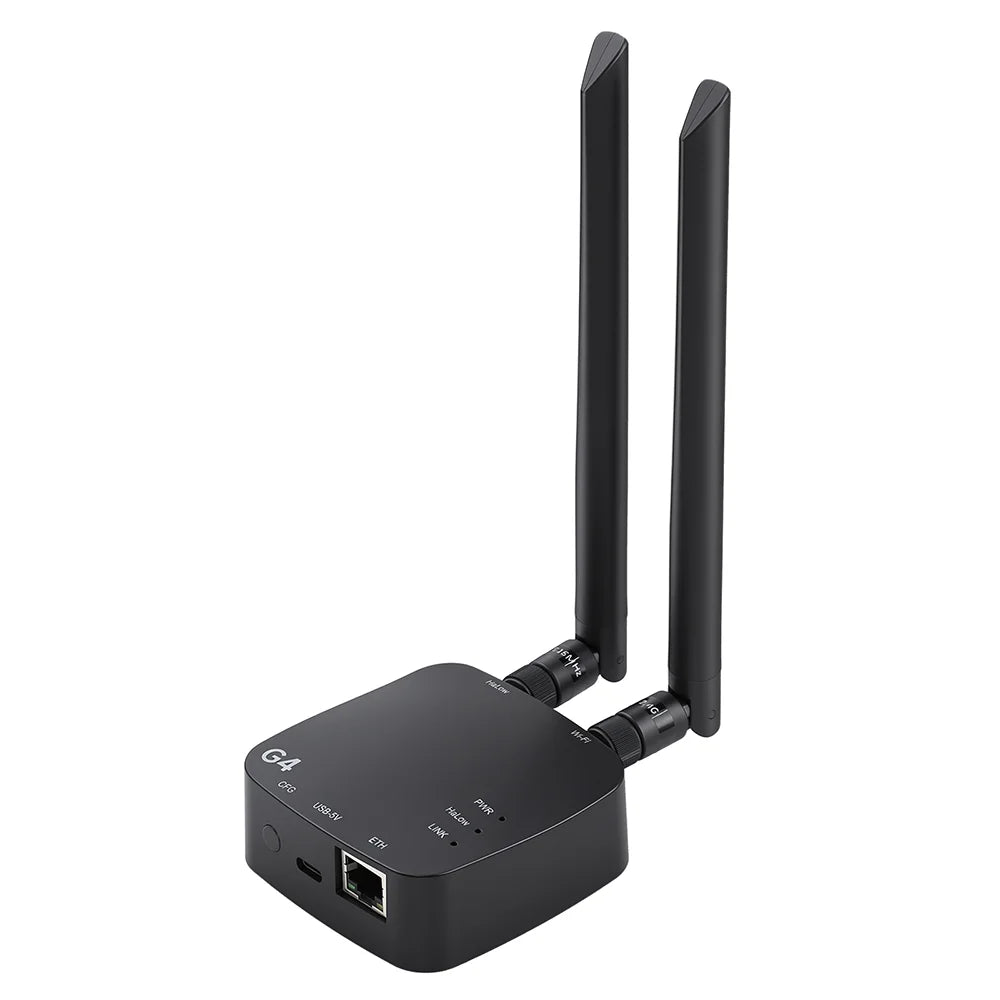

ThinkNode G4 Wi-Fi HaLow Gateway
ThinkNode G4 Wi-Fi HaLow Gateway
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
Note: This is the ThinkNode G4 Wi-Fi HaLow Gateway (915MHz) — a long-range, high-speed IoT gateway supporting Wi-Fi HaLow (Sub-1GHz), 2.4GHz Wi-Fi, and Ethernet. Perfect for extending network coverage in smart homes, industrial IoT, smart agriculture, and large-scale device deployments with strong penetration and Mesh support.

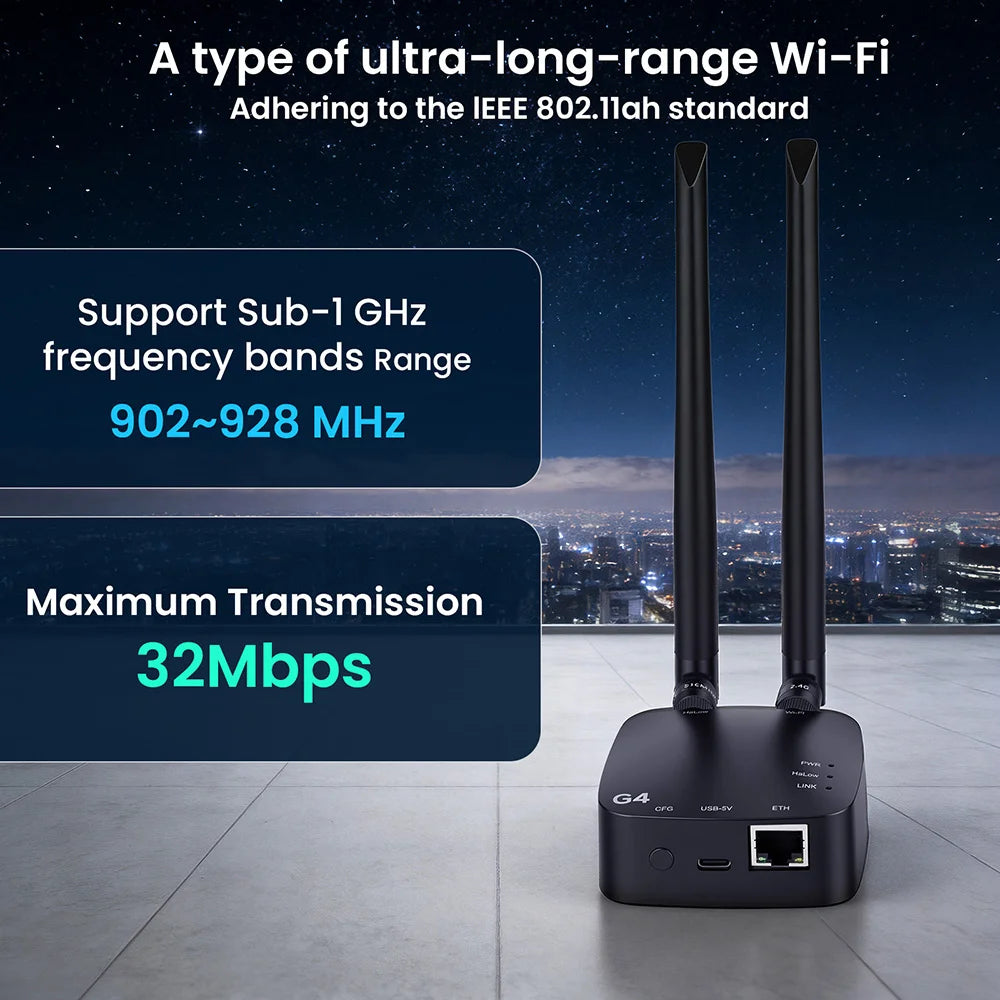

The ThinkNode G4 Wi-Fi HaLow Gateway leverages IEEE 802.11ah Wi-Fi HaLow technology for long-distance (up to 1km+), high-speed (up to 32Mbps) wireless communication in the Sub-1GHz band. It combines dual-band wireless with Ethernet for flexible networking (AP/STA/Mesh), making it an ideal bridge for IoT devices, remote monitoring, and network blind spot coverage.
KEY FEATURES
- Wi-Fi HaLow Technology: Long-range Sub-1GHz (850~950 MHz) with strong penetration and low power consumption.
- Dual-Band Support: Wi-Fi HaLow + 2.4GHz Wi-Fi for flexible and high-capacity networking.
- Ethernet Connectivity: RJ45 port for stable wired integration into existing networks.
- Advanced Networking: Supports AP, STA, and Mesh modes with massive device access (4x+ traditional Wi-Fi).

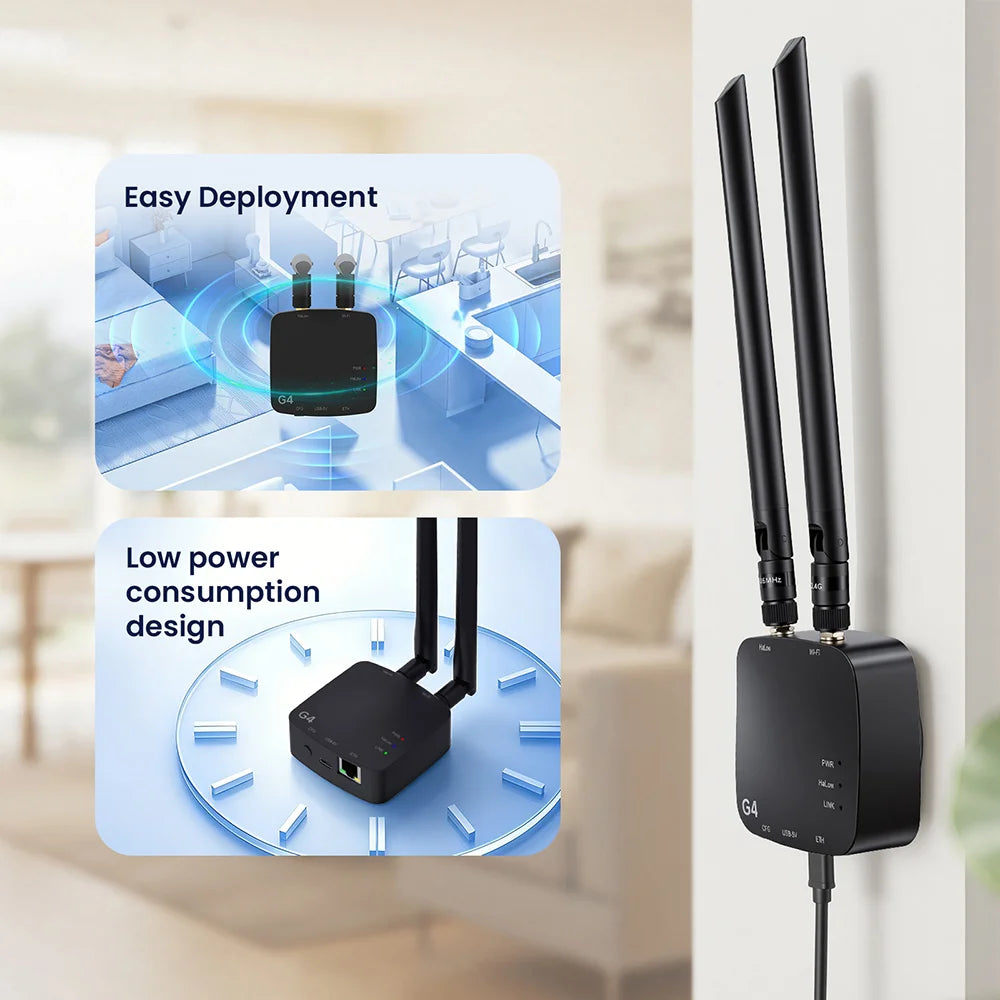

- Industrial Design: Wide operating temperature (-20°C to +70°C) and wall-mount friendly.
- Easy Management: Web UI configuration and OTA remote upgrades.
SPECIFICATIONS
| Product Name | ThinkNode G4 Wi-Fi HaLow Gateway (915MHz) |
| Main SoC | HLK-7628N Module (MIPS, up to 580 MHz) |
| Memory | 128 MB DDR2 |
| Storage | 32 MB Flash |
| Wi-Fi HaLow | FGH100M Chip, IEEE 802.11ah, 850~950 MHz, up to 32.5 Mbps |
| 2.4GHz Wi-Fi | 802.11 b/g/n |
| Ethernet | 10/100 Mbps RJ45 |

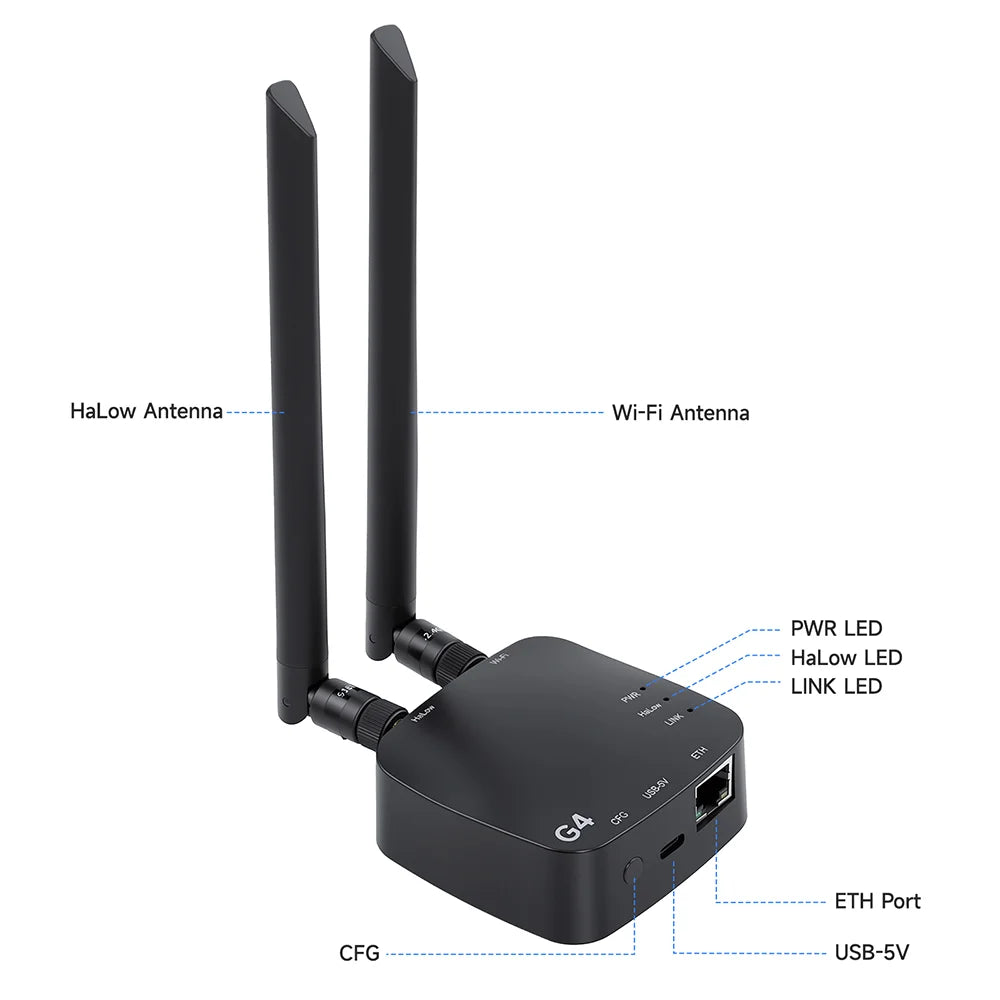

| Antennas | External Wi-Fi HaLow Antenna + 2.4GHz Antenna |
| Power Supply | 5V via USB-C |
| Dimensions | 75 × 75 × 30 mm (excluding antennas) |
| Weight | 80 g |
| Operating Temperature | -20°C ~ +70°C |
| Compatibility | Web UI, OTA upgrades, IoT devices |

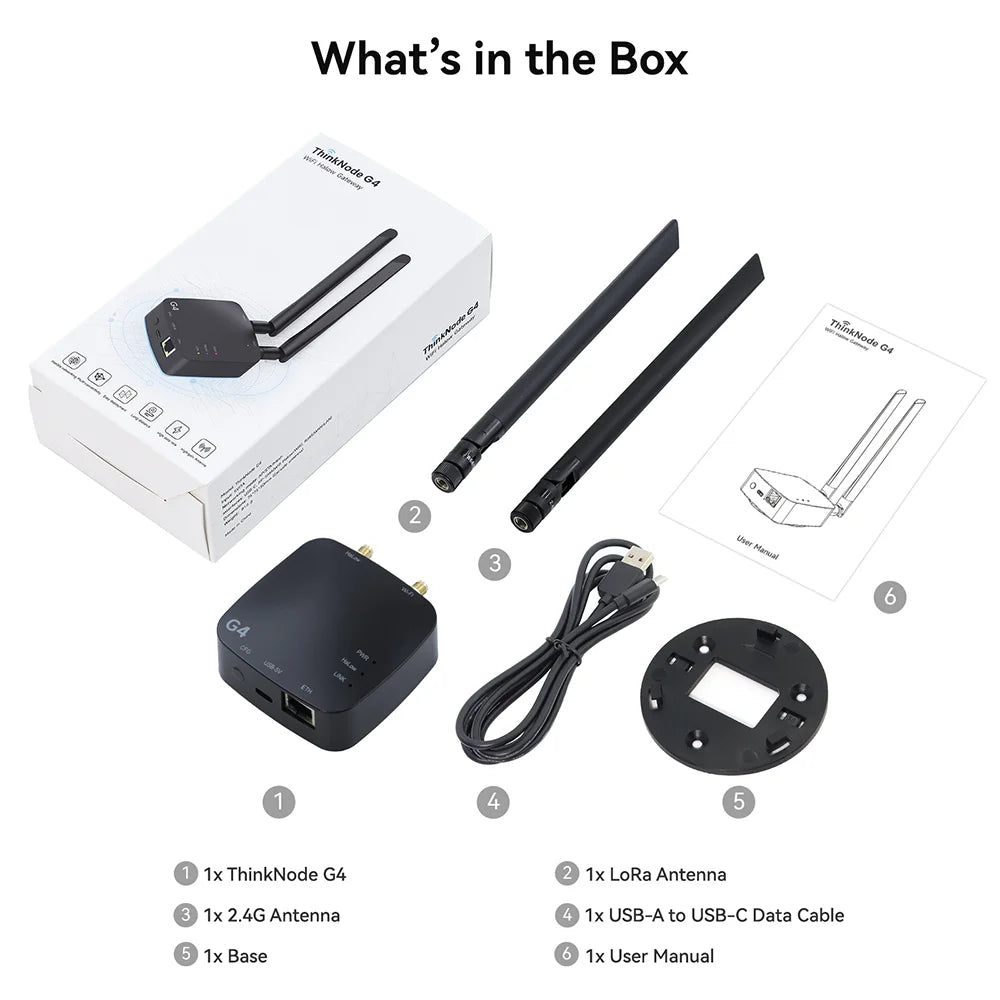

WHAT'S INCLUDED
- 1 × ThinkNode G4 Wi-Fi HaLow Gateway
- 1 × Wi-Fi HaLow Antenna
- 1 × 2.4GHz Antenna
- 1 × USB-C Cable
- 1 × Mounting Base
NOTES
- Excellent for long-range IoT networks, rural internet, industrial automation, and smart city applications.
- Supports AP/STA/Mesh networking modes for flexible deployment.
- Strong wall penetration and massive device connectivity make it superior to traditional Wi-Fi in challenging environments.
