WiFi Module RTL8822CE
WiFi Module RTL8822CE
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Description ▼

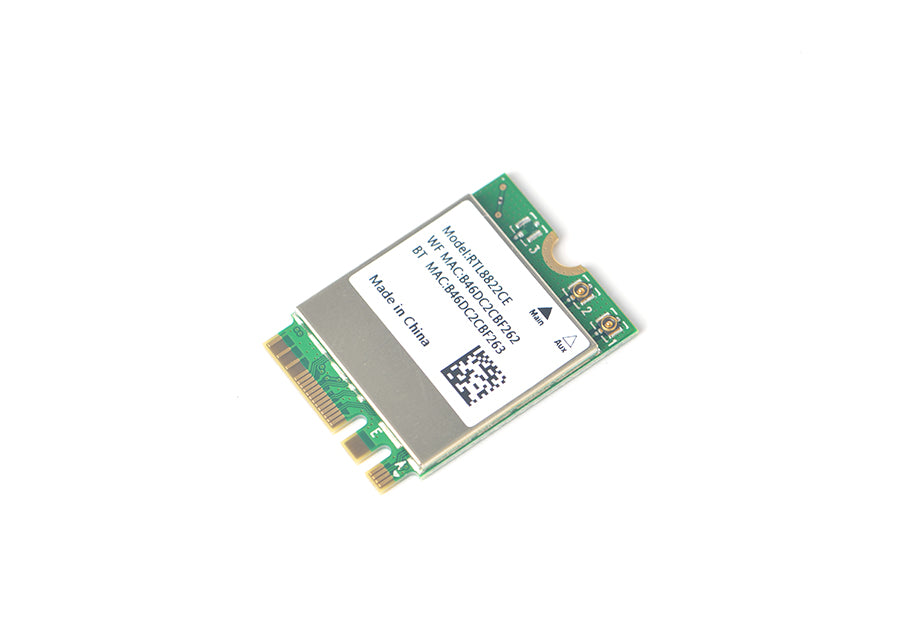

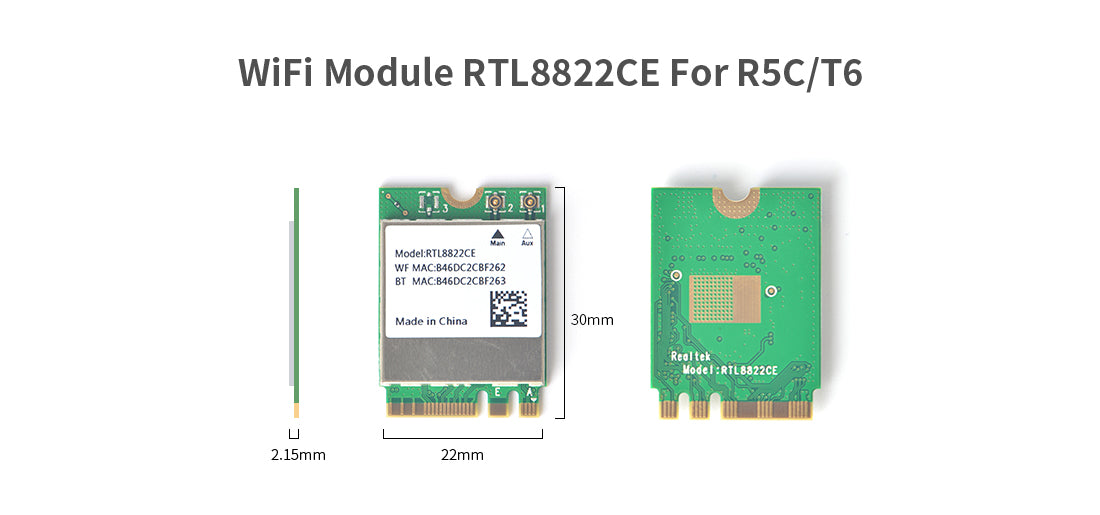

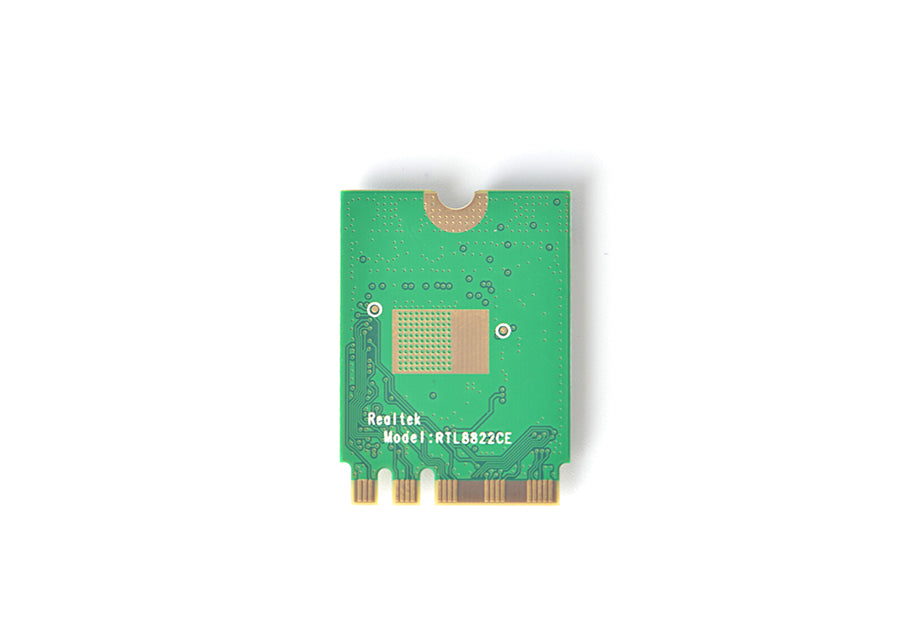

FriendlyELEC M.2 WiFi Bluetooth Card
This is the official M.2 Wi-Fi + Bluetooth module for FriendlyELEC NanoPi / NanoPC boards with an M.2 E-key slot. It adds dual-band Wi-Fi 5 and Bluetooth to boards such as the NanoPi R5C, NanoPC-T6 LTS, and other compatible FriendlyELEC systems.
KEY FEATURES
- Dual-band Wi-Fi 5 (2.4 GHz + 5 GHz)
- Bluetooth 5.0
- Realtek RTL8822CE chipset
- M.2 2230 A/E-key form factor
- 2×2 MIMO, up to 867 Mbps
- Designed for FriendlyELEC NanoPi / NanoPC boards
SPECIFICATIONS
| Category | Details |
|---|---|
| Chipset | Realtek RTL8822CE |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac Dual-band 2.4 GHz / 5 GHz 2×2 MIMO Up to 300 Mbps (2.4 GHz) / 867 Mbps (5 GHz) |
| Bluetooth | Bluetooth 5.0 Compatible with Bluetooth 2.1 + EDR |
| Interface | M.2 2230 A/E-key Wi-Fi: PCIe Bluetooth: USB |
| Antenna | 2 × IPEX / MHF4 connectors |
| Form Factor | M.2 2230 |
| OS Support | Linux / FriendlyWrt / OpenWrt Windows 10 / 11 |
| Compatibility | FriendlyELEC boards with M.2 E-key Wi-Fi slot, including NanoPi R5C, NanoPC-T6 LTS, and other compatible models |
What's Included:
- 1 × M.2 WiFi Bluetooth Card
NOTES
- This listing is for the module only
- Requires a compatible M.2 E-key slot
- Antennas are not included but it does come with Pigtails.
