Youyeetoo K1, Palm-Sized x86 Edge Computer | Intel 12th Gen N100 Mini PC

Youyeetoo K1 x86 Edge Computer

The Youyeetoo K1 is a compact modular x86 edge computer built around an Intel 12th Gen N100 processor. This unit includes the core board plus carrier/base board, with 8GB LPDDR5 RAM, 128GB eMMC, Wi-Fi 6, and a US power adapter. Dual Gigabit Ethernet, dual 4K HDMI, M.2 storage expansion, and industrial I/O make it a strong option for edge computing, HMI, digital signage, gateways, and embedded projects.

KEY FEATURES

• Intel N100 (4 cores / 4 threads, up to 3.4 GHz, 6W TDP)
• 8GB LPDDR5 RAM
• 128GB eMMC onboard storage
• Wi-Fi 6 + Bluetooth 5.2
• Dual Gigabit Ethernet
• Dual HDMI 2.0 up to 4K@60Hz

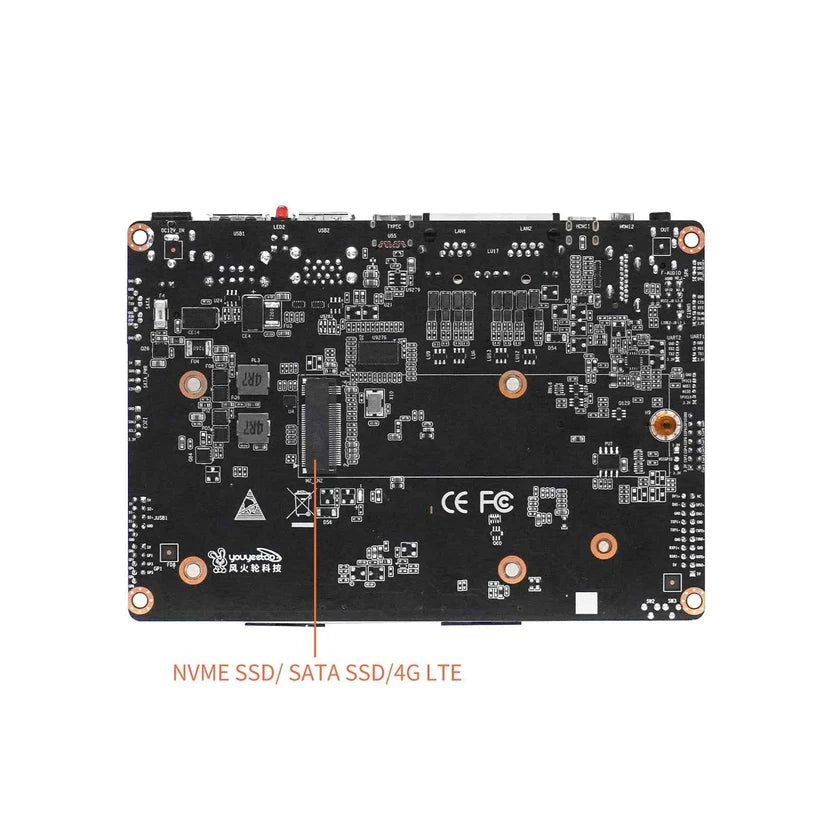

• M.2 2280 NVMe / SATA expansion + SATA 3.0
• Industrial I/O: UART, I2C, SPI, GPIO
• Includes carrier / base board and US power adapter
• Windows and Linux ready

SPECIFICATIONS

Processor & Memory:

• CPU: Intel Processor N100 (Alder Lake-N)
• Cores / Threads: 4 / 4
• Turbo: up to 3.4 GHz
• GPU: Intel UHD Graphics (24 EU, up to 750 MHz)
• RAM: 8GB LPDDR5

Storage:

• 128GB eMMC onboard
• M.2 2280 slot for NVMe or SATA SSD
• SATA 3.0 port for additional drive

Networking:

• 2 × Gigabit Ethernet
• Wi-Fi 6
• Bluetooth 5.2

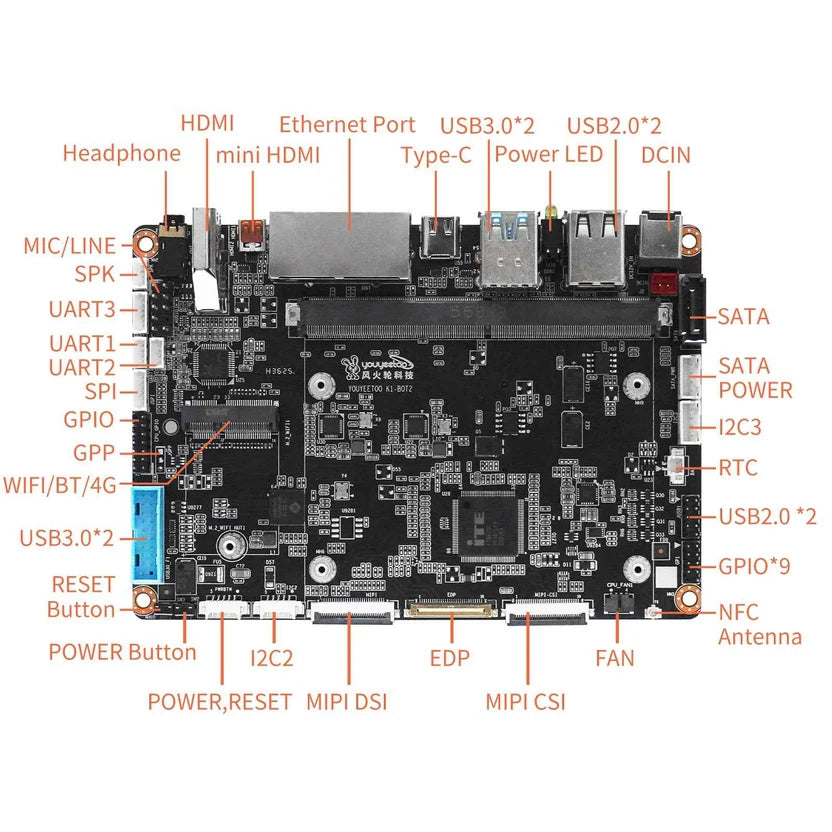

Display & I/O:

• 2 × HDMI 2.0 (up to 4K@60Hz)
• MIPI DSI / eDP support on the carrier board
• 2 × USB 3.0
• 2 × USB 2.0
• 1 × USB-C
• 4 × UART, 3 × I2C, SPI, 27 × GPIO

Power:

• 12V DC input
• US power adapter included
• Fanless low-power design

Physical:

• Core board: 82 × 71 mm
• Carrier / base board: 134 × 92 mm

Software:

• Windows 10 / 11
• Ubuntu / Debian
• OpenWrt and other x86 Linux systems

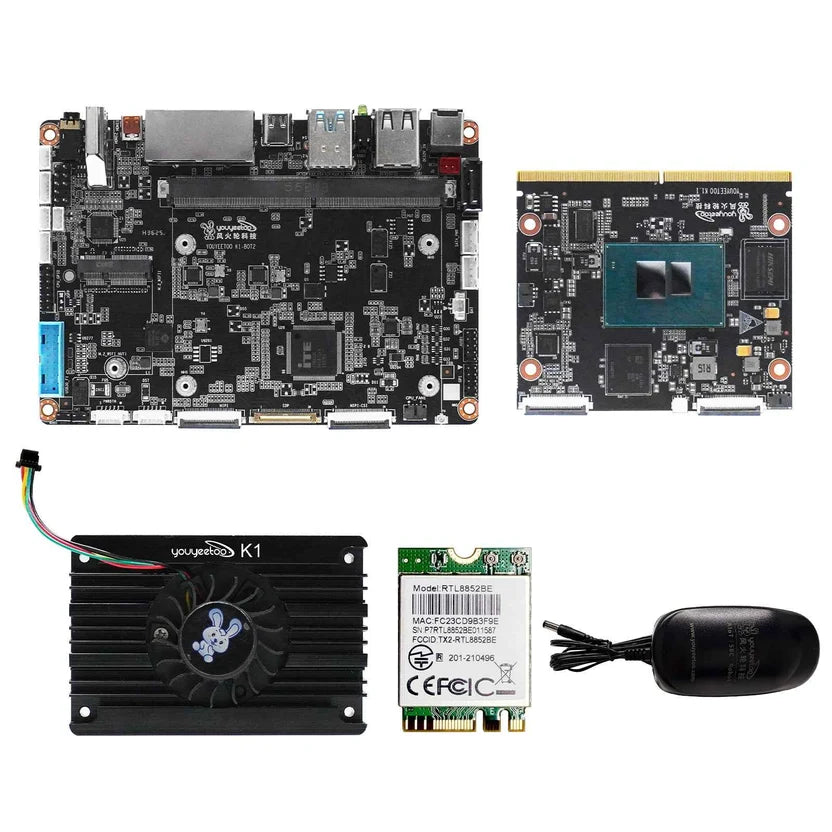

What's Included:

• 1 × Youyeetoo K1 core board (8GB LPDDR5 / 128GB eMMC)
• 1 × Carrier / base board
• 1 × Wi-Fi 6 module
• 1 × US power adapter

NOTES

• This is the V1.0 US kit with Wi-Fi 6, carrier/base board, and US power adapter
• Ideal for edge computing, industrial HMI, digital signage, soft routing, and compact x86 projects
• M.2 / SATA drives are not included
