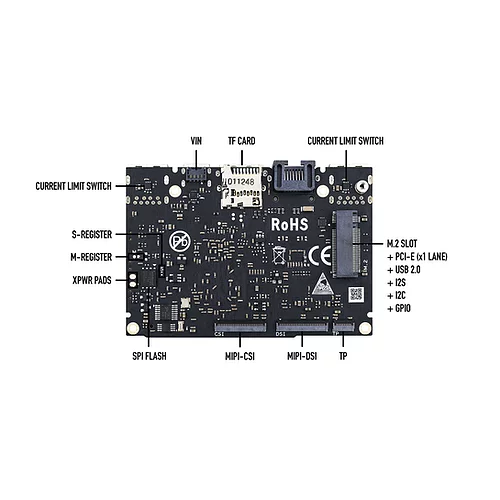

Khadas VIM3L
Khadas VIM3L
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
KEY FEATURES
- Amlogic S905D3
- 2T2R AC Wi-Fi with RSDB Features
- Bluetooth 5.0
- USB 3.0 Available (when PCI-E not in use)
- Gigabit Ethernet with WOL support
- 2GB LPDDR4/X
- 16GB eMMC
- M.2 Connector
ADDITIONAL FEATURES
- 12nm process for low heat & high efficiency
- USB-C Power Delivery for heavy applications
- NPU: Supports a maximum frequency of 800MHz at 1.2 TOPS
- INT8 inference up to 1536 MAC
- Internal L2 cache (512KB) and system workspace buffer (1MB)
- Supports all major deep learning frameworks including TensorFlow and Caffe
- Stackable Design
- Programmable MCU
- 3 Programmable LEDs (Blue, Red and White)
- XPWR for external Power button
- Onboard SPI Flash
- Khadas TST
- Khadas KBI
- 3D CAD Files
- Dual independent displays with GSensor
- H.264 / H.265 Encoding
- Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps
- VIN Power Input
- 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
- 8-ch I2S for Microphone Array application (over M.2 Connector)
- MIPI-DSI
- MIPI-CSI
- Designed with GPIO Extender Chip
Includes two Wi-Fi antennae. Other accessories sold separately.
Warranty is valid for 12 months, starting upon date of receipt.
LINKS
- How to reflash eMMC: https://ameridroid.com/blogs/ameriblogs/how-to-reimage-the-built-in-emmc-on-khadas-vim3
- Compatible images: https://docs.khadas.com/linux/firmware/Vim3lUbuntuFirmware.html
