NanoPi M6V2 8GB + Metal Case

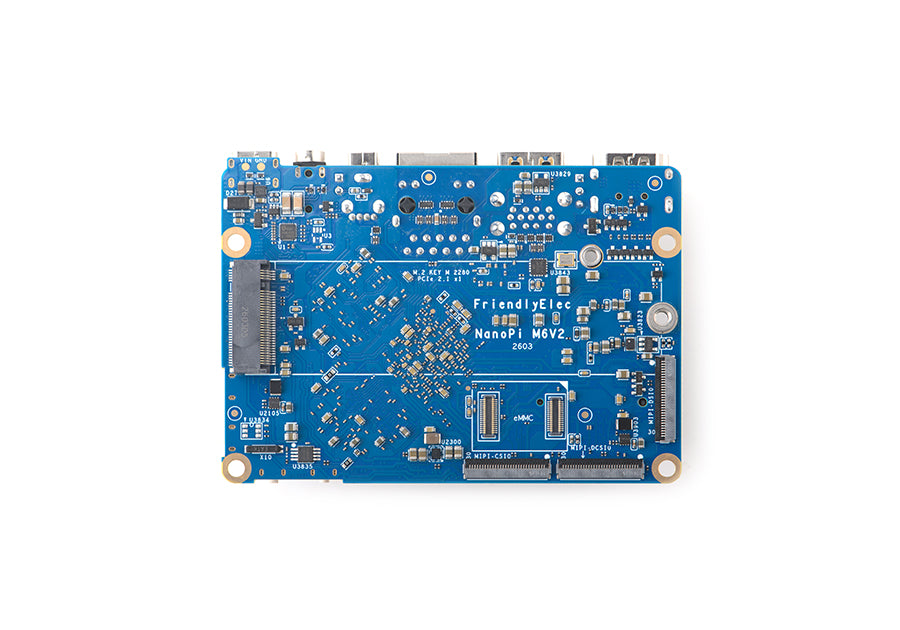

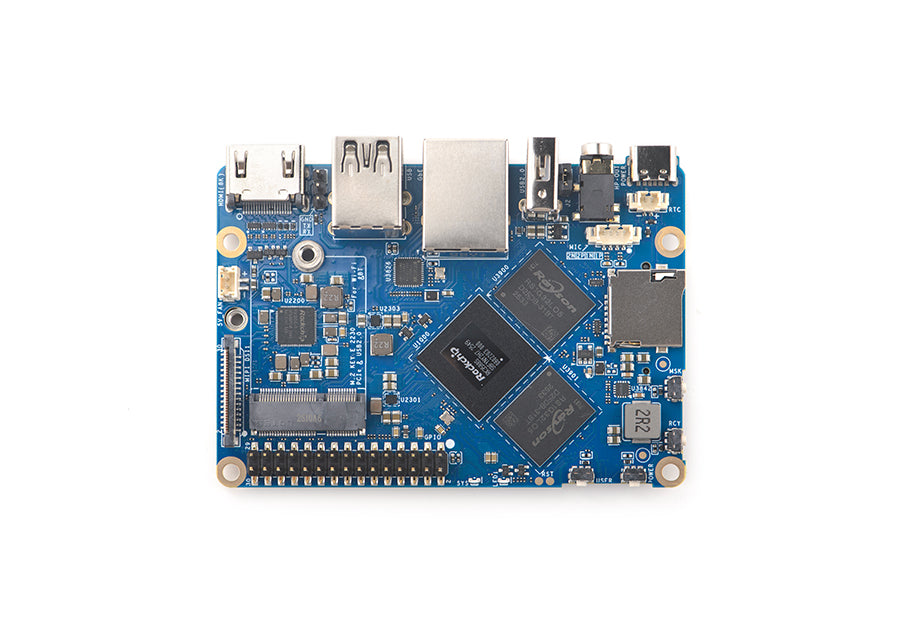

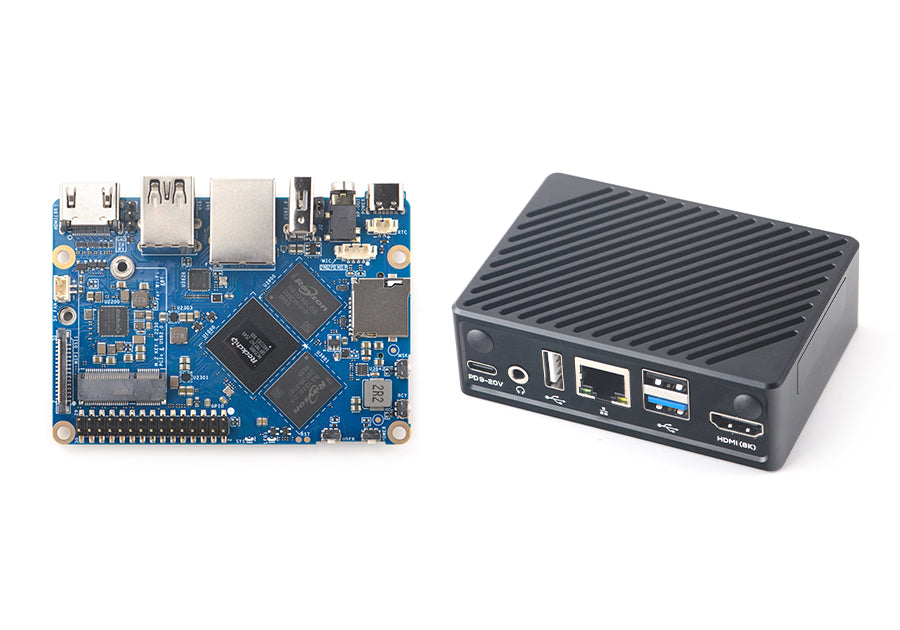

FriendlyELEC NanoPi M6V2 — RK3588S High-Performance SBC (with Case)

The NanoPi M6V2 is a powerful single-board computer based on the Rockchip RK3588S octa-core processor. It delivers excellent multi-core performance, 8K video capabilities, a 6 TOPS NPU for AI acceleration, and flexible expansion options including M.2 NVMe and WiFi. This version comes with the official metal case.

KEY FEATURES

• Rockchip RK3588S: 4× Cortex-A76 (up to 2.4 GHz) + 4× Cortex-A55 (up to 1.8 GHz)
• 8GB LPDDR5 RAM
• 6 TOPS NPU for AI acceleration
• Mali-G610 MP4 GPU
• 8K Video Support: HDMI 2.1 up to 8K@60Hz
• M.2 NVMe Support (2280)
• eMMC Module Socket + microSD slot
• Gigabit Ethernet
• M.2 E-Key for WiFi/Bluetooth modules

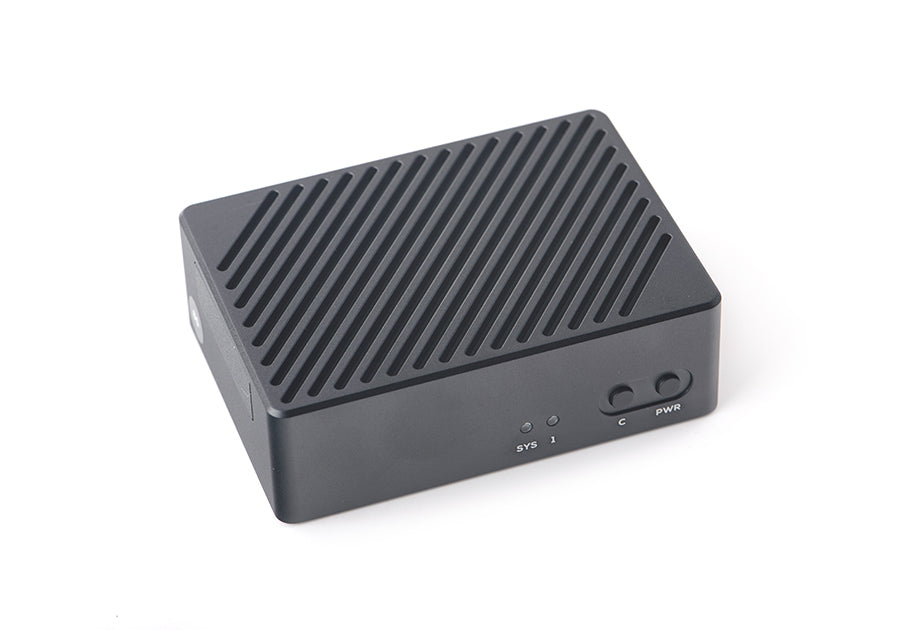

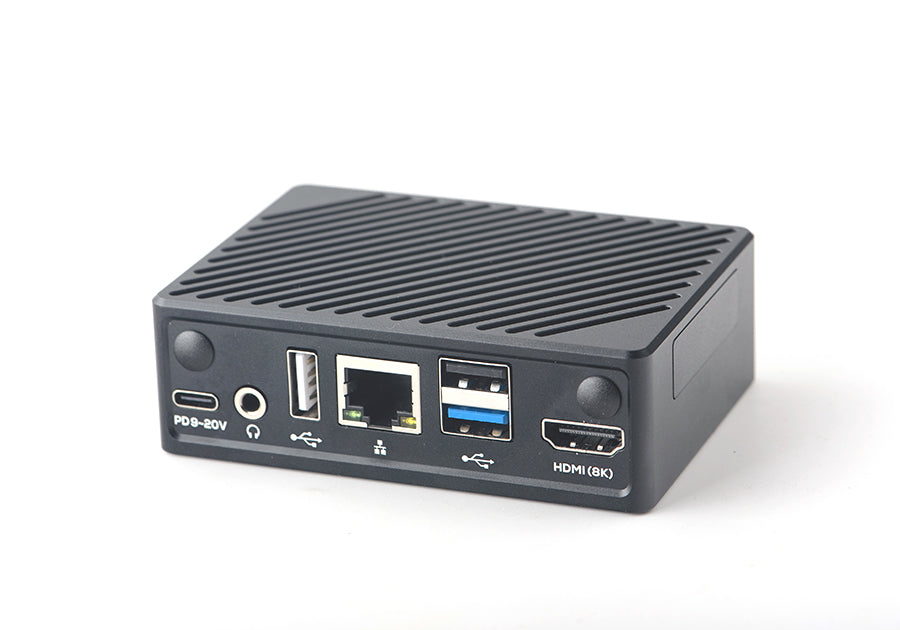

• Metal Case Included
• Rich I/O: USB 3.0, dual MIPI-DSI, dual MIPI-CSI, 30-pin GPIO

SPECIFICATIONS

Processor & AI:

• SoC: Rockchip RK3588S
• CPU: 4× Cortex-A76 + 4× Cortex-A55
• GPU: Mali-G610 MP4
• NPU: 6 TOPS (INT4/INT8/INT16/FP16)
• VPU: 8K@60fps H.265/VP9 decode, 8K@30fps H.264 decode, 8K@30fps encode

Memory:

• 8GB LPDDR5

Storage:

• eMMC module socket (HS400)
• microSD slot (SDR104)
• M.2 M-Key 2280 for NVMe SSD (PCIe 2.1 x1)

Display & Camera:

• 1 × HDMI 2.1 (up to 8K@60Hz)
• 2 × 4-lane MIPI-DSI
• 2 × 4-lane MIPI-CSI

Networking:

• 1 × Gigabit Ethernet
• M.2 E-Key slot for WiFi/Bluetooth modules

USB & I/O:

• 1 × USB 3.0 Type-A
• 2 × USB 2.0 Type-A
• 30-pin GPIO header
• 3.5mm audio jack + dual analog microphone input
• Debug UART, RTC connector, fan connector

Power:

• USB-C PD / DC input (6V–20V)

Physical:

• Board size: 90 × 62 mm
• With case: Approx. 94.5 × 68 × 30 mm
• Metal case included

Software Support:

• Android 14
• Debian / Ubuntu
• FriendlyWrt
• OpenMediaVault
• Armbian and others

What's Included:

• 1 × NanoPi M6V2 board (8GB RAM)
• 1 × Official Metal Case

NOTES

• This listing includes the metal case
• eMMC module and WiFi module are optional and sold separately
• Excellent choice for edge AI, 8K media centers, mini PCs, NAS, and high-performance embedded projects
• Strong software support from FriendlyELEC and the community
