FriendlyELEC NanoPi R28S

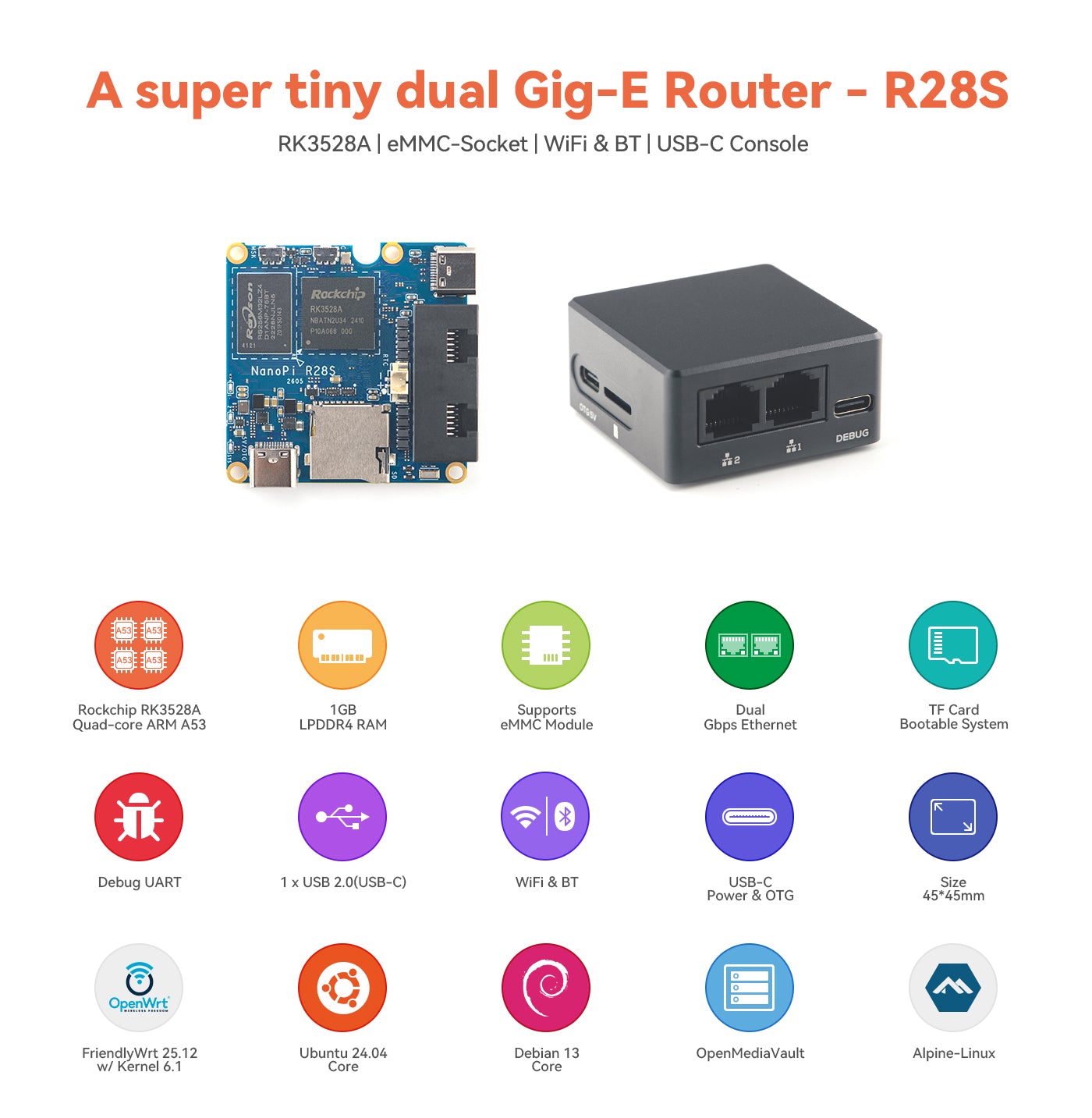

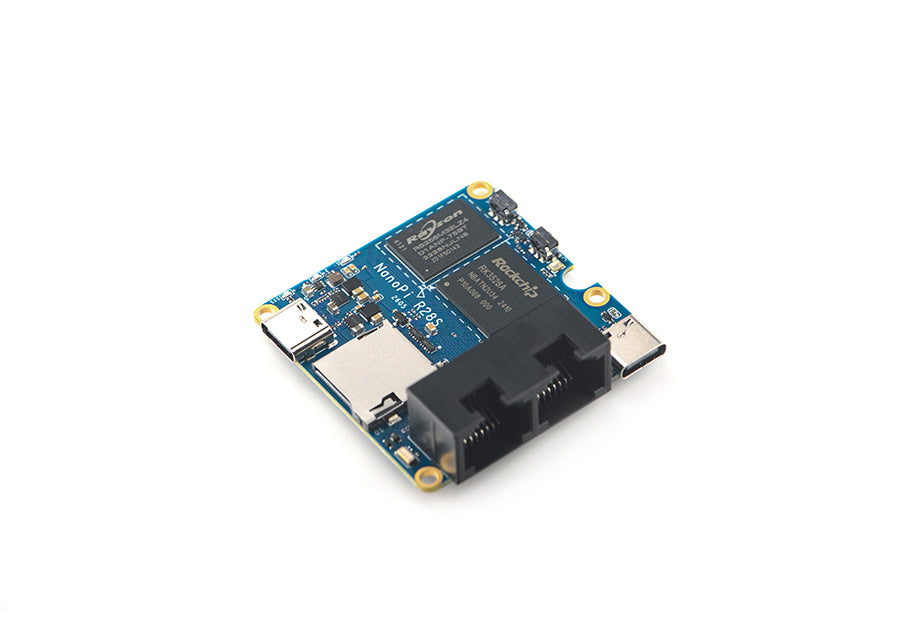

The NanoPi R28S is an ultra-compact dual-Gigabit router board based on the Rockchip RK3528A. It includes onboard Wi-Fi 6, Bluetooth 5.3, 1GB LPDDR4, and a protective case. With FriendlyWrt and other Linux images, it is a strong tiny gateway, travel router, or always-on homelab node.
KEY FEATURES
- Rockchip RK3528A quad-core Cortex-A53, up to 1.8 GHz
- 1GB LPDDR4
- Dual Gigabit Ethernet (RTL8211F + RTL8111H)
- Onboard Wi-Fi 6 + Bluetooth 5.3

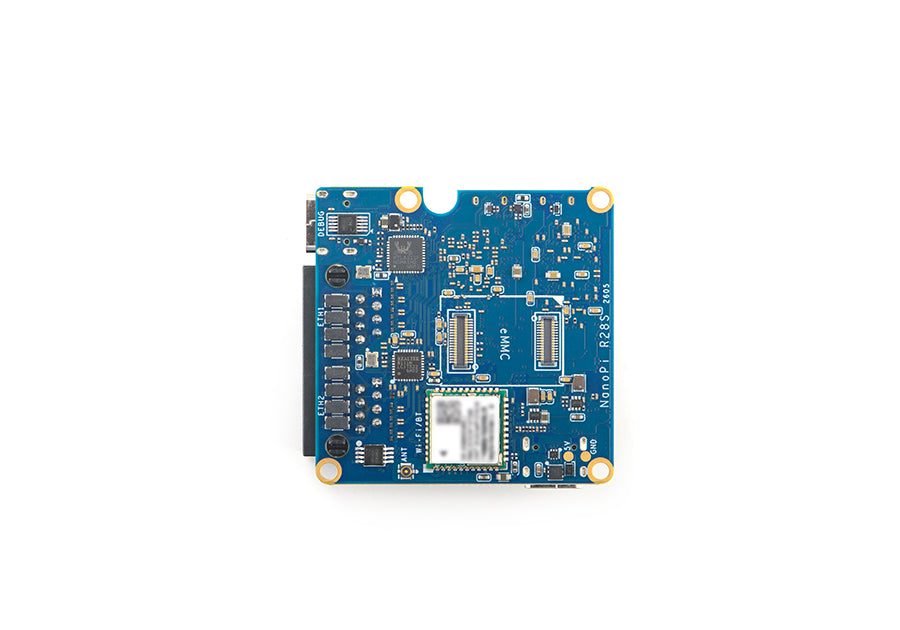

- microSD slot and eMMC module support
- USB-C power and USB-C debug UART
- Includes case
- FriendlyWrt, Debian, Ubuntu, OpenMediaVault, and Proxmox support
SPECIFICATIONS
| Category | Details |
|---|---|
| CPU | Model: Rockchip RK3528A Number of Cores: Quad-core Frequency: 4 × ARM Cortex-A53 up to 1.8 GHz |
| GPU | ARM Mali-450 GPU |
| VPU | 4K H.265 / H.264 60fps decoding |
| Memory | RAM: 1GB LPDDR4 |
| Storage | Flash: Supports eMMC module 1 × microSD slot for external storage up to 128GB |

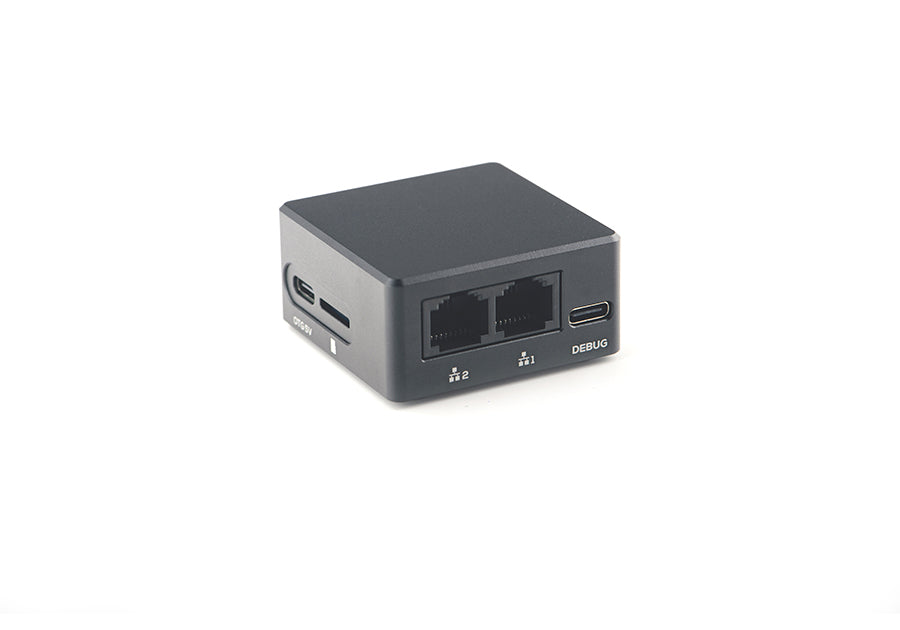

| Connectivity | Dual Gigabit Ethernet: RTL8211F and RTL8111H Onboard Wi-Fi 6 and Bluetooth 5.3 module |
| USB | 1 × USB-C 2.0 for eMMC upgrade and 5V power input 1 × USB-C to UART debug console |
| LED | 1 × SYS LED (Red) 2 × user LED (Green) |

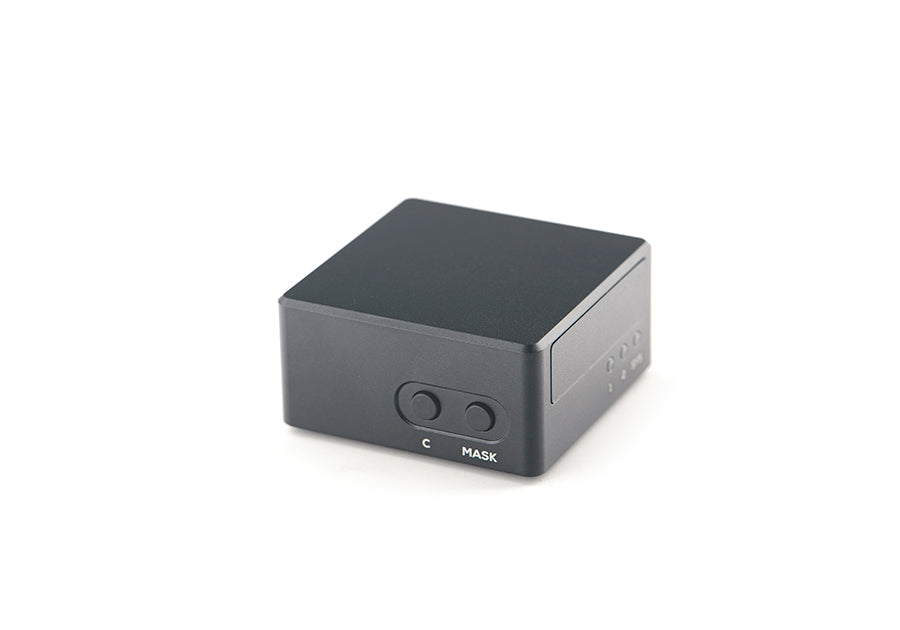

| Button | 1 × User/C button 1 × MASK button for eMMC upgrade |
| Others | RTC battery: 2-Pin 1.27/1.25mm RTC battery input connector for low-power RTC IC HYM8563TS Working temperature: 0℃ to 70℃ |
| Power | DC 5V/2A (non-PD) |
| OS Support | Alpine Linux 3.23 Buildroot - Weston (Wayland) Debian 13 Core FriendlyWrt 25.12 OpenMediaVault 8.0.6 Proxmox VE 8.2.7 Ubuntu 24.04 Core |
| Kernel | Linux-6.1-LTS U-boot-2017.09 *Firmware is continuously updated; refer to the actual version provided by the wiki |
| PCB | 8-layer |
| Dimensions | 45 × 45 × 1.2 mm (board) 49.5 × 49.5 × 24 mm (with case) |
| Weight | 14 g (board) 77.5 g (with case) |

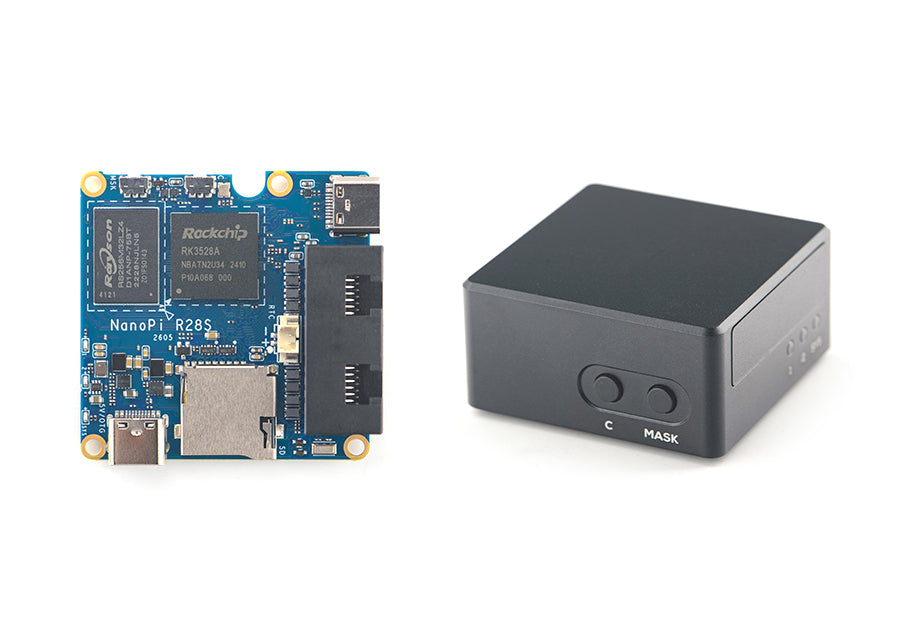

What's Included:
- 1 × NanoPi R28S board
- 1 × Case
NOTES
- This version includes the case
- A 5V / 2A USB-C power supply is required (non-PD)
- Great compact option for a travel router, dual-WAN gateway, or small always-on Linux node
