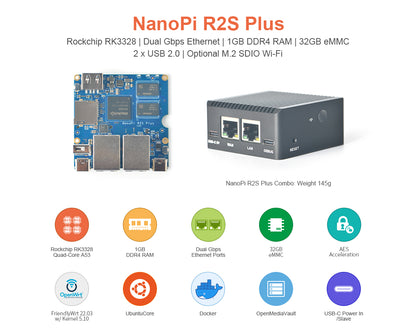

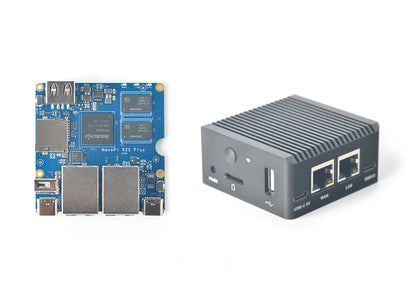

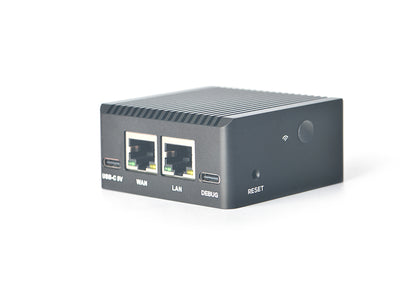

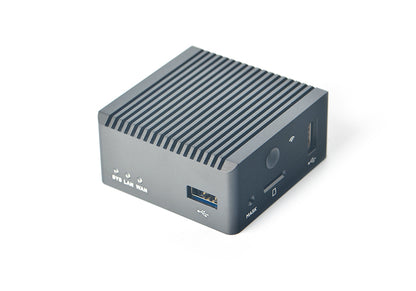

NanoPi R2S Plus + Metal Case
Reach out to us for more information
The NanoPi R2S PLUS is a FriendlyElec mini-router with edge-computing and dual Gbps Ethernet ports. The NanoPi R2S PLUS uses Rockchip's quad-core A53 RK3328 SoC with powerful performance. Its default frequency is 1.2GHz. The NanoPi R2S PLUS has 1GB RAM, 32G eMMC flash, dual Gbps Ethernet ports, a GPIO connector etc. It uses RK805 PMU chip and supports dynamic frequency scaling. It has two USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc. The NanoPi R2S Plus can be optionally equipped with an RTL8822CS WiFi module (SDIO Interface), which can work in AP mode or wireless repeater mode for wireless range expansion. The NanoPi R2S Plus suppors TF card booting. It works with FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core etc. These systems are based on Linux-6.1(LTS). The NanoPi R2S Plus is powered through USB Type-C. It is a good choice for applications that need to be deployed in compact space and need strong networking performance.
SPECIFICATION
| CPU | Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.4GHz |
| Memory | RAM: 1GB DDR4 |
| Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB Flash: 32GB eMMC 5.1 Flash |
| Connectivity | Ethernet: 1 x Internal Gbps Ethernet x 1，RTL8211F chip
1 x USB3.0 converted Gbps Ethernet.RTL8153B chip |
| USB | USB 2.0 Host x 1: USB Type A 1x USB-C :5V power input and USB update in maskrom mode 1 x USB-C : onboard USB to Debug UART converter, 1500000bps bauds |
| Pin-header | Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL) |
| LED | 1 x SYS LED(Red) 1 x WAN LED(Green) 1 x LAN LED(Green) |
| Button | 1 x GPIO Button 1 x Maskrom mode Button |
| Working Temperature | 0℃ to 70℃ |
| Power | DC 5V/2A |
| OS Support | FriendlyWrt 21.02 FriendlyWrt 23.05 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot Debian 11 Core OpenMediaVault Buildroot |
| Kernel version | Linux-6.1-LTS U-boot-2017.09 |
| PCB | 6 Layer |
| Weight | 145g（With Case) |
| Dimension | 62.5x63.5x30 mm(with Case) |
