ODROID-XU4Q with Passive Heatsink
ODROID-XU4Q with Passive Heatsink
Out of Stock! If you see a Pre-order badge and/or an Add to Cart button, you can place a pre-order now!
Couldn't load pickup availability
Description ▼
ODROID-XU4 has been discontinued, consider another ODROID boards:

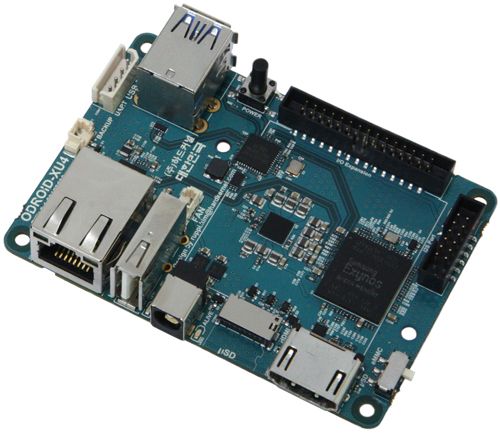

Big power in a small package! The ODROID-XU4Q packs an octa-core Heterogeneous Multi-Processing ARM CPU, 2GB of high-speed RAM, 2x full-sized USB3.0 ports, Gigabit Ethernet and more into one great solution!

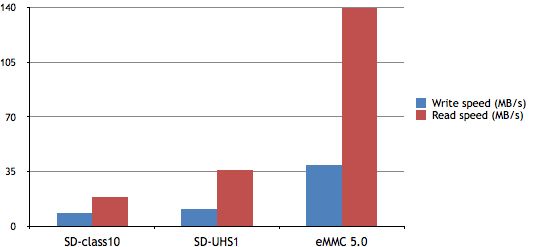

The ODROID-XU4Q is a new generation of single board computer with hardware that's more powerful, more energy-efficient and has a smaller form factor! Built on open-source software, the XU4Q supports various flavors of Linux including the latest Ubuntu 16.x running MATE desktop and Android 4.4 KitKat, 5.0 Lollipop, 6.x Marshmallow, and even 7.x Nougat. With the high-performance combination of eMMC 5.0, USB3.0 and Gigabit Ethernet, the ODROID-XU4Q boasts amazing data transfer speeds - speeds that are a necessity with many of today's computing tasks like intensive 3D applications, streaming, browsing and gaming.
Links to compliance documentation available at the bottom of this listing.
KEY FEATURES
- Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
- Mali-T628 MP6 (OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)
- 2GB LPDDR3 RAM PoP stacked
- eMMC5.0 HS400 Flash Storage
- 2 x USB 3.0 Host, 1 x USB 2.0 Host

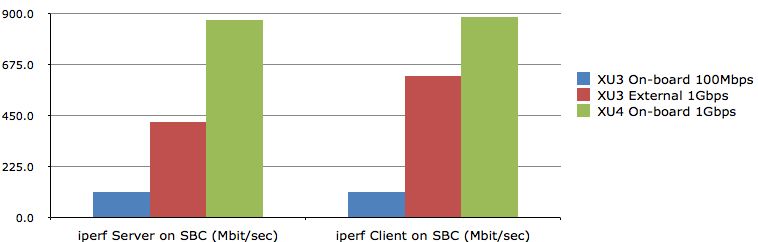

- Gigabit Ethernet port
- HDMI 1.4a for display
- Operating temperature range: approx. -10C to +45C
- Size: ~82 x 58 x 30 mm (including heat sink)
- Fully software compatible with ODROID-XU3 and XU3-Lite
- Low cost, small form factor, high performance!
INCLUDES
- ODROID-XU4Q Board

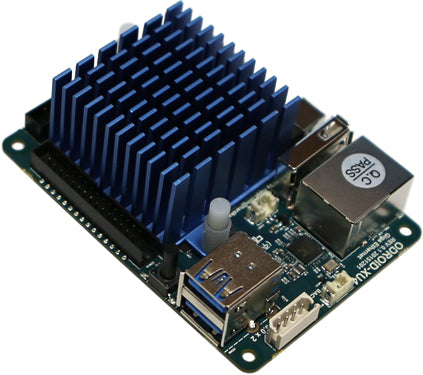

- Passive Heat Sink (mounted)
REQUIRES
- microSD or eMMC module to contain the operating system
RECOMMENDED
- Power Supply
- 5V/4A with 5.5mm/2.1mm barrel
or - 5V/6A with 5.5mm/2.1mm barrel (when using an external USB3.0 HDD)
- Full-sized HDMI cable (to connect to a display)
- Keyboard/mouse
- RTC battery
- Case
DISCUSS
LINKS
- XU4 User Manual - http://magazine.odroid.com/odroid-xu4
- XU4Q Thermal Analysis in Detail - http://odroid.com/dokuwiki/doku.php?id=en:xu4_benchmark_xu4_xu4q
- Technical Details - https://wiki.odroid.com/odroid-xu4/odroid-xu4
- Wiki - https://wiki.odroid.com/odroid-xu4/odroid-xu4
- Schematics - http://dn.odroid.com/5422/ODROID-XU3/Schematics/XU4_MAIN_REV0.1.pdf
- PCB Mechanical Drawings (AutoCAD format) - http://dn.odroid.com/homebackup/XU4_MAIN_REV0.1_DXF.DXF
- XU4 3D Model generated with caliper measurements (Solidworks format) - https://grabcad.com/library/odroid-xu4-mockup-1
- Official Case Design File - http://www.hardkernel.com/main/products/prdt_info.php?g_code=G143522987777
- Display Resolution Compatibility Chart - http://odroid.com/dokuwiki/doku.php?id=supported_resolutions
- How to change the MAC address - https://wiki.odroid.com/odroid-xu4/troubleshooting/change_mac
- Mikronauts Preview - http://www.mikronauts.com/hardkernel/hardkernel-odroid-xu4-preview/
- Mikronauts Review - http://www.mikronauts.com/hardkernel/hardkernel-odroid-xu4-review/
- CNX Software Review - http://www.cnx-software.com/2015/07/14/odroid-xu4-board-is-a-smaller-and-cheaper-version-of-odroid-xu3/
- Unlockpwd.com Review - http://www.unlockpwd.com/odroid-xu4-dev-board-official-to-74-but-it-is-very-similar-to-odroid-xu3/
- FCC - https://wiki.odroid.com/_media/en/xu4/en/fcc_odroid-xu4.pdf
- CE - https://wiki.odroid.com/_media/en/xu4/en/ce_odroid-xu4_2017.pdf
- RoHS - https://wiki.odroid.com/_media/odroid-xu4/hardware/doc_odroid-xu4_xu4q.pdf
- KCC - https://wiki.odroid.com/_media/en/xu4/en/kcc_odroid-xu4.pdf
Warranty is valid for thirty days, starting upon date of receipt.
