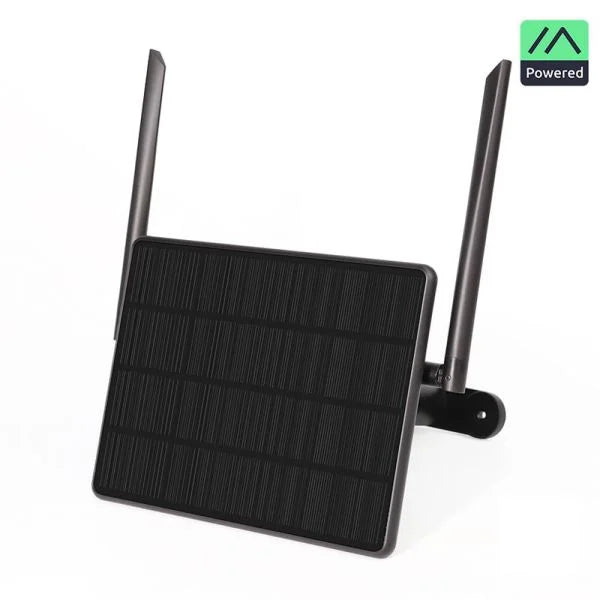

ThinkNode M6 Outdoor Solar Power for Meshtastic

Note: This device comes pre-flashed with Meshtastic firmware for immediate out-of-the-box use.

Discover the Elecrow ThinkNode M6 Outdoor Solar Power for Meshtastic—a rugged, self-sustaining Meshtastic node designed for harsh outdoor and industrial environments. Powered by the high-performance nRF52840 (with SX1262 LoRa transceiver) and built-in L76K GPS module, it enables long-range off-grid mesh communication, precise location sharing, and telemetry without internet or cell service. The integrated 6W monocrystalline solar panel with MPPT charging + 7000mAh lithium battery pack ensures ultra-long operation even in cloudy/rainy conditions. IP65 waterproof enclosure (operating -20°C to 60°C) with multiple mounting options makes it ideal for emergency response, remote monitoring, environmental tracking, mesh network expansion, or outdoor adventures. Pre-installed Meshtastic firmware and app compatibility for seamless setup—expand with sensors via dual waterproof SP11 interfaces.

KEY FEATURES

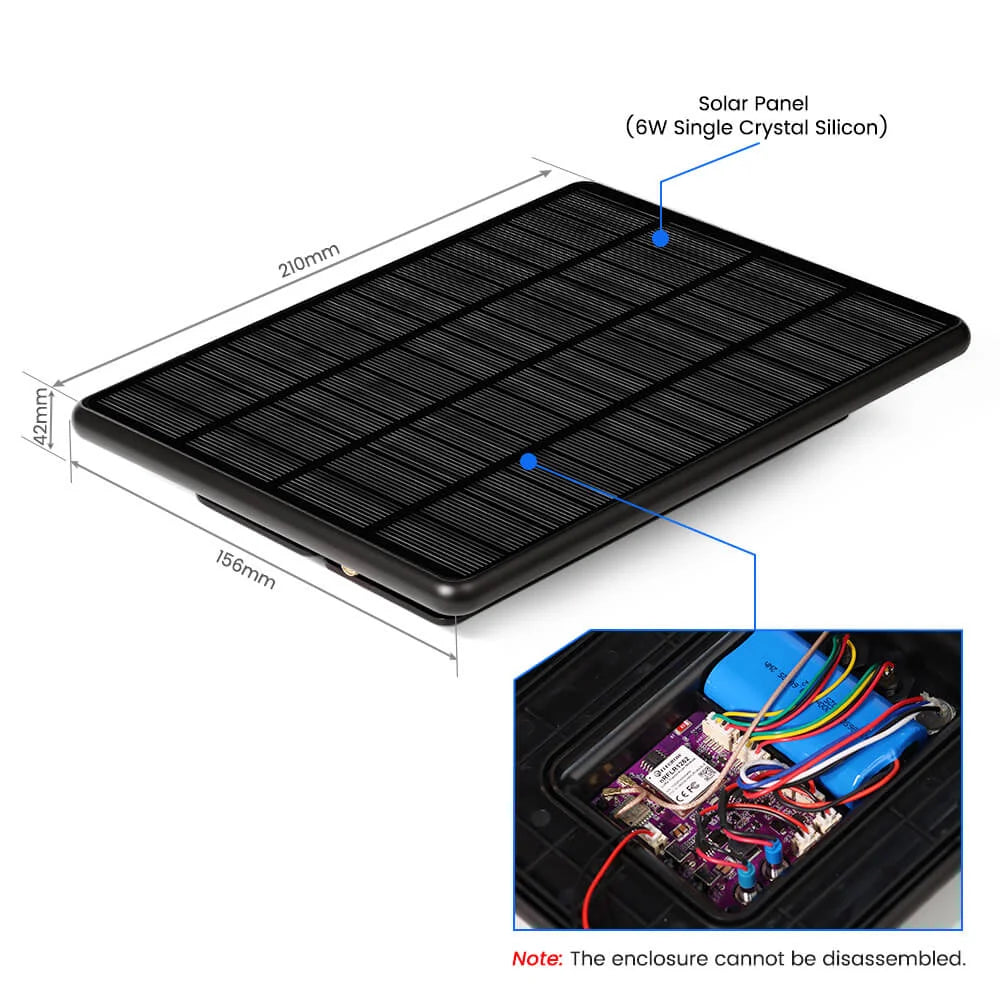

• All-Weather Solar Power System: 6W high-efficiency monocrystalline panel + MPPT intelligent charging maximizes energy harvest; 7000mAh lithium battery pack (2x 18650 Panasonic) with ultra-low power consumption (21µA idle) for stable, extended operation in continuous bad weather.
• High-Performance nRF52840 Core: 64MHz Arm Cortex-M4 with FPU/DSP for smooth complex algorithms; SX1262 LoRa transceiver (150-960MHz full band) + Bluetooth 5.4 (BLE) for low-power, fast configuration and reliable long-range mesh networking.
• High-Precision GPS Positioning: Built-in L76K module supports accurate real-time location sharing via Meshtastic/LoRa network—perfect for asset tracking, emergency rescue, or outdoor exploration.

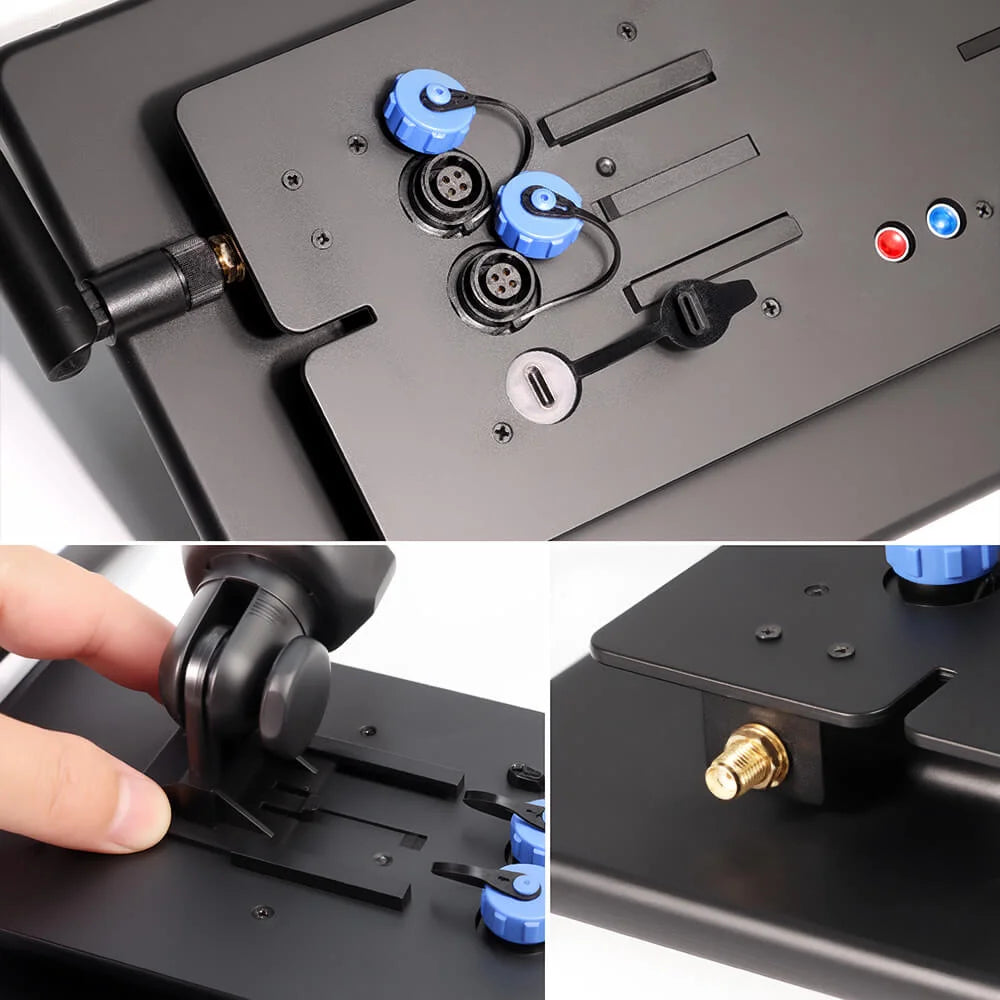

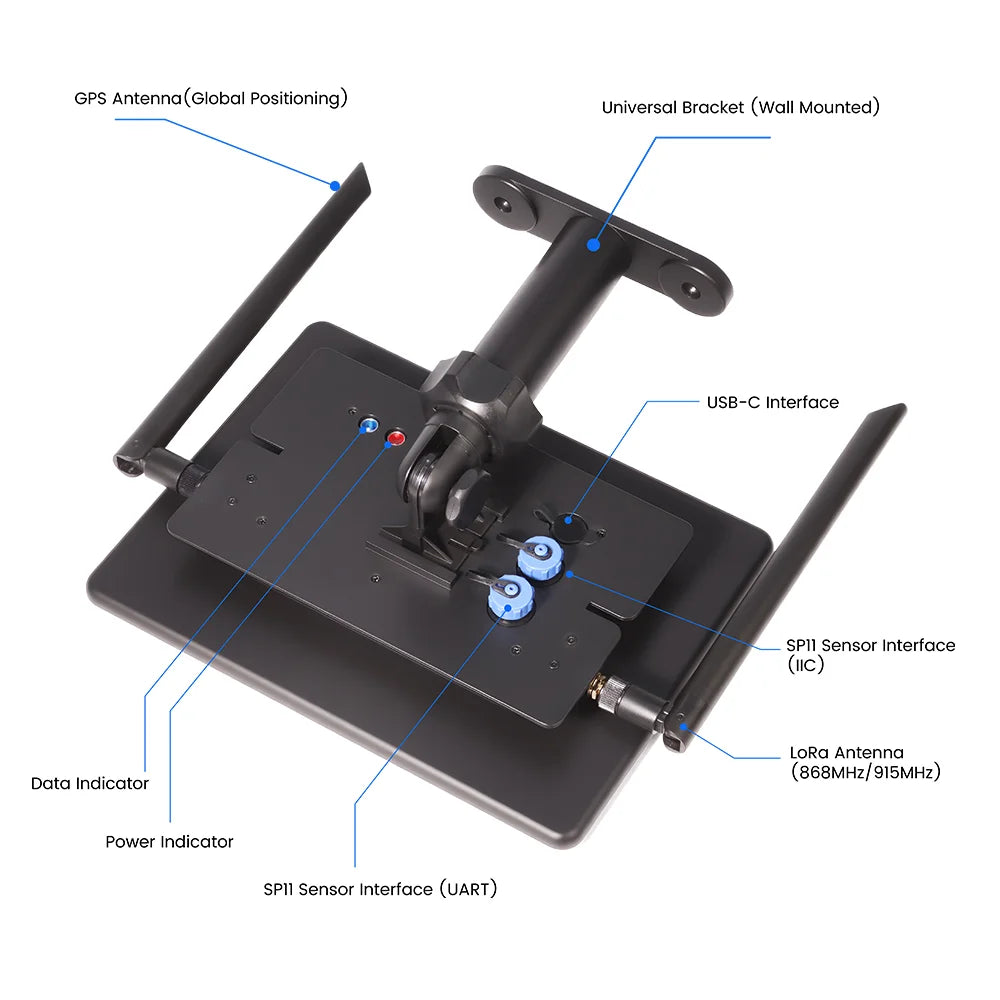

• Flexible Expansion & Edge Computing: Dual SP11 waterproof aviation interfaces (IIC + UART) for quick sensor integration (temperature, humidity, gas, soil, etc.); local data processing reduces cloud dependency, enhances privacy and response speed.

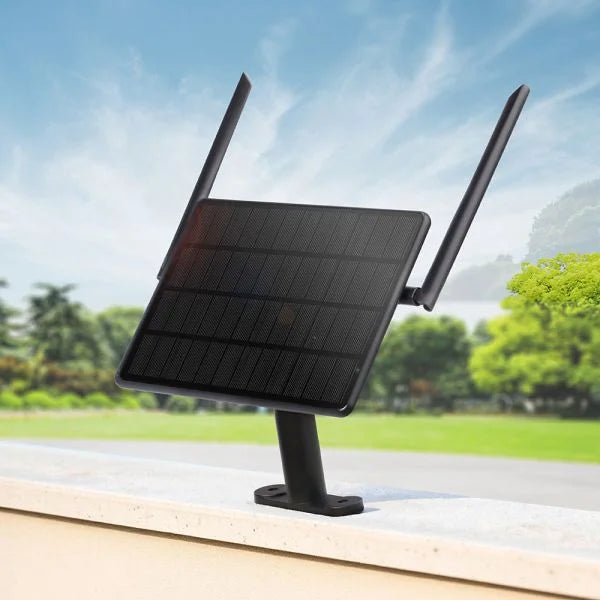

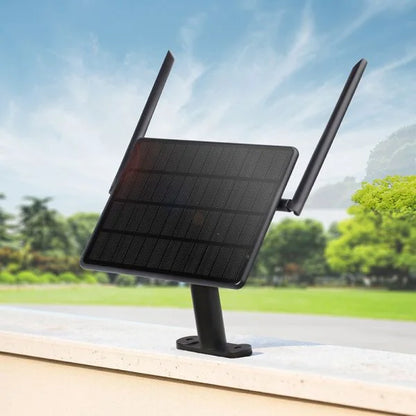

• Rugged IP65 Protection & Mounting: Fully sealed enclosure withstands extreme conditions (-20°C to 60°C); multiple options including wall mount, bracket, pole, U-shaped clamp—deploy anywhere reliably.
• Simple Deployment & Meshtastic Compatibility: Pre-installed Meshtastic firmware; supports official app for easy setup, ad-hoc networks, and roles like router/repeater—ready for off-grid comms, remote monitoring, or community mesh building.

SPECIFICATIONS

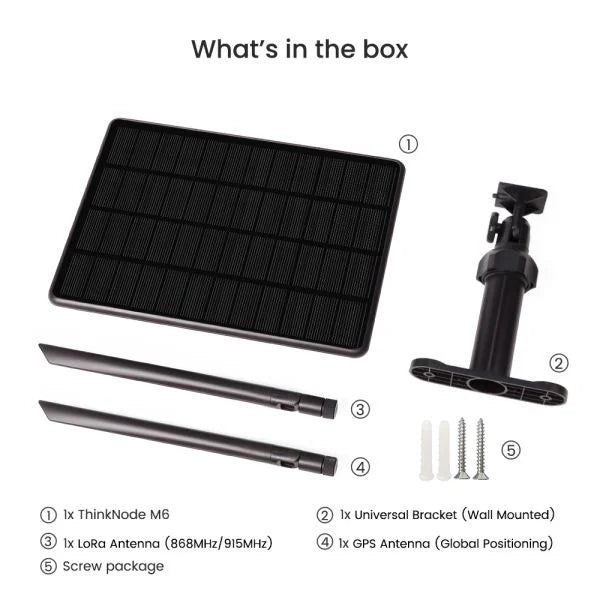

WHAT'S INCLUDED

• 1 × ThinkNode M6 Outdoor Solar Power Device
• 1 × LoRa Antenna (RP-SMA, regional frequency e.g., 915MHz)
• 1 × GPS Antenna (RP-SMA)

NOTES

• Compatible with Meshtastic app (iOS/Android/Web) for configuration, messaging, and node management—supports ad-hoc mesh networks out of the box.
• Regional frequency variants available (e.g., US915/915MHz)—select for compliance with local regulations.
• Expansion sensors (temperature, humidity, etc.) not included—use SP11 interfaces for easy plug-in additions.
