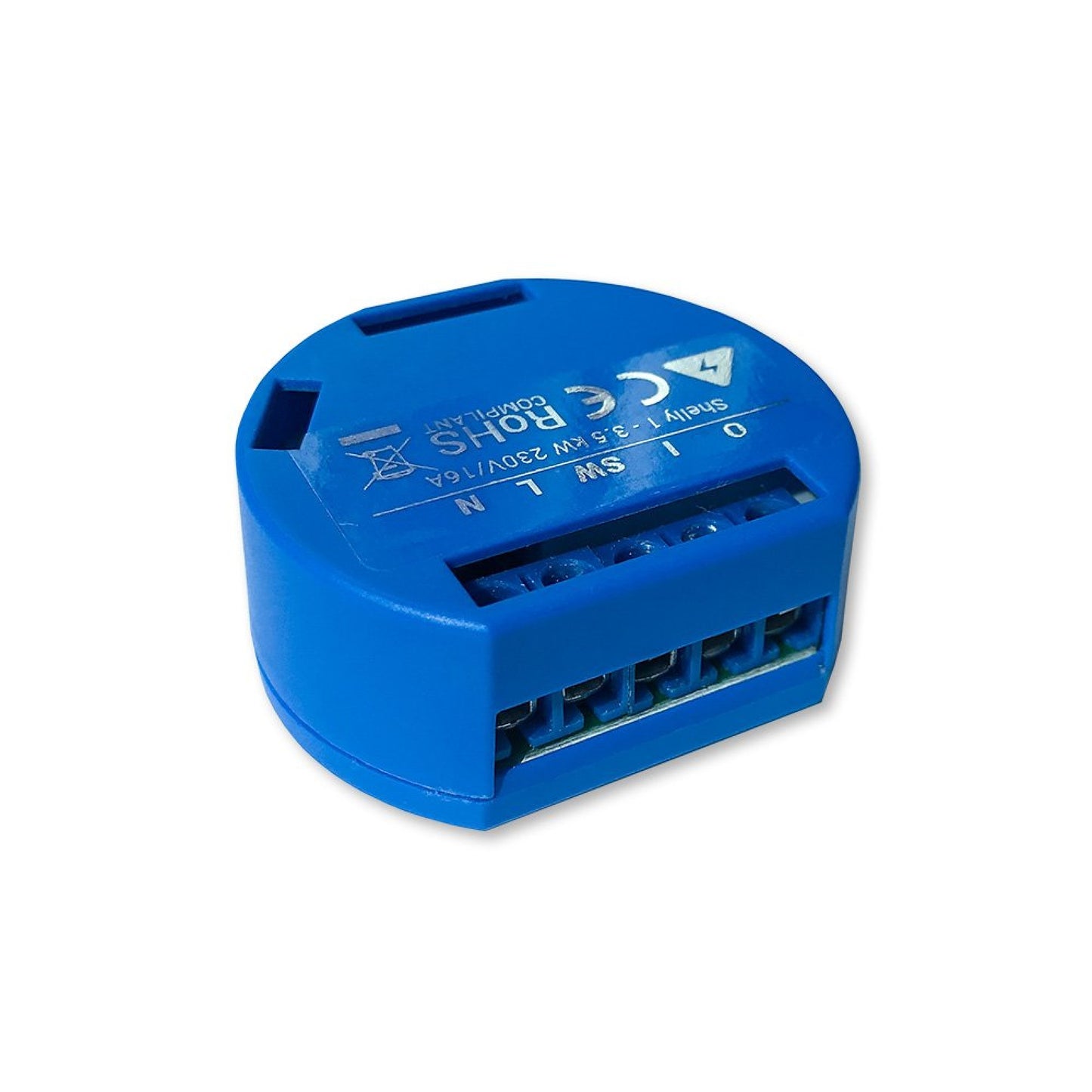

Shelly 1 - WiFi AC/DC Relay Switch 15A

$9.95 USD

Shipping calculated at checkout.

Thank you for supporting a US-based small business!

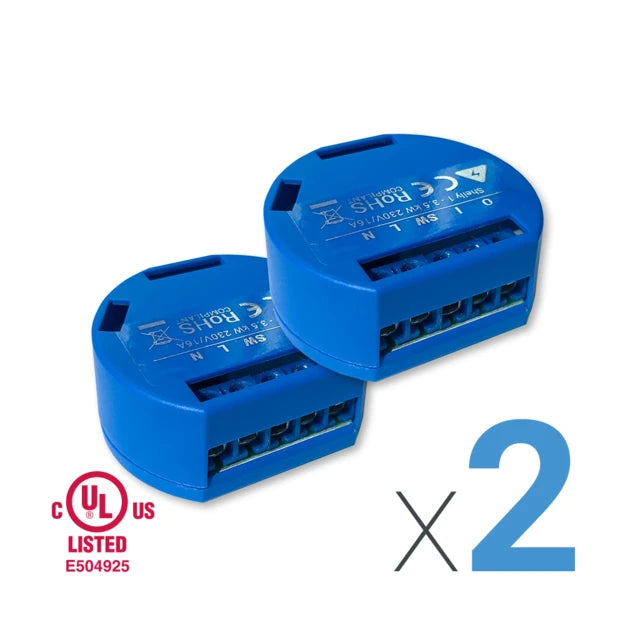

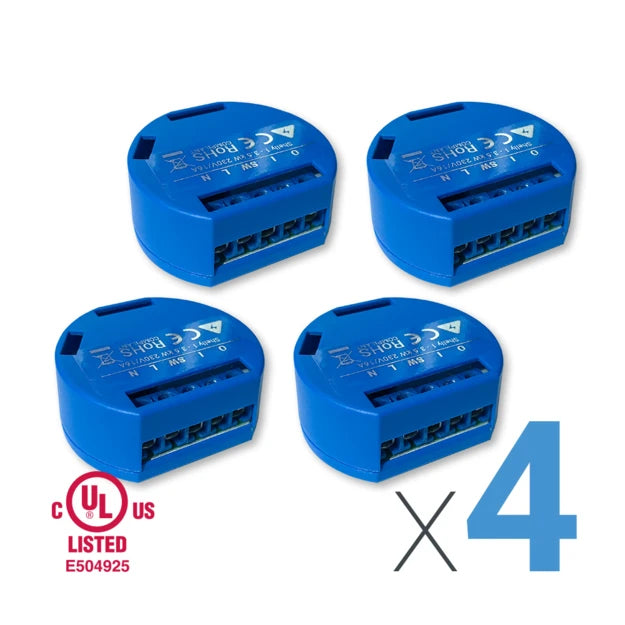

Certification UL-Listed (Recertified) Non-UL-Listed UL-Listed UL-Listed 2-Pack (Recertified) UL-Listed 4-Pack (Recertified)

Out of Stock!

Quantity

🎄 Sending this as a gift?

Add gift wrapping to this order for $6.95. Pricing is left out of the package.

Free standard shipping on US orders over $150

Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.

📦

US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.

Description ▼

WiFi-operated Relay Switch

Control a wide range of home appliances and office equipment (lights, power lines, garage doors, curtains, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch.

KEY FEATURES

Open Source
Firmware Reprogrammable
Embedded webserver
Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
Can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component.

NOTES

Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
IF SELECTING A RECERTIFIED UNIT, PLEASE NOTE: EVERY UNIT HAS BEEN MANUALLY TESTED INDIVIDUALLY BY AN AMERIDROID ENGINEER TO BE IN FULLY-WORKING CONDITION AND COMES WITH THE SAME WARRANTY AS THE ORIGINAL PRODUCT. IT CAN BE THAT THE UNIT MIGHT BE ASSIGNED TO A PREVIOUS OWNER ACCOUNT AND SHELLY IS THE ONLY ONE WHO CAN UNLOCK THE UNITS.

SPECIFICATIONS

Power
Power supply AC	110-230V ±10%, 50/60Hz
Power supply DC	12V, 30 - 50V
Special functions
Dry contacts	Yes
Roller shutter mode	No
Device temperature protection	No
Overload protection	No
Power measurement	No
Working without a neutral line	No
Features
Channels	1 Channel
Maximum load	15A
Operational temperature	-40 to + 40 °C
Device power consumption	< 1 W
Intelligent On/Off	Yes
Local and remote control	Yes
Sunrise/Sunset	Yes
Weekly Schedule	Yes
UL Listed option	Yes
Connectivity
Wireless/WiFi Protocol	802.11 b/g/n
Radiofrequency	2400 - 2484 MHz
Radio signal power	1mW
Range	up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Dimensions
Size	41mm x 36mm x 17mm

LINKS

Official Support - https://shelly.cloud/support/
Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
API and Communication Documentation - https://shelly-api-docs.shelly.cloud/gen1/

VIDEOS

Recommended Accessories

Choose any options and quantity, then use Add to cart to add an accessory.

Push Button Switch - Momentary 125V/6A (opens in a new tab)
$0.94

Quantity for Push Button Switch - Momentary 125V/6A
LED Power Button (opens in a new tab)
$7.95

Quantity for LED Power Button
Microswitch - Momentary 250V/15A Short Lever Roller (opens in a new tab)
$0.99

Quantity for Microswitch - Momentary 250V/15A Short Lever Roller
Rocker Switch - Maintained 12V/100mA (opens in a new tab)
$2.14

Quantity for Rocker Switch - Maintained 12V/100mA
Rocker Switch - Maintained 12V/10A Yellow LED (opens in a new tab)
$3.95

Quantity for Rocker Switch - Maintained 12V/10A Yellow LED
Rocker Switch - Maintained 12V/20A Yellow LED (opens in a new tab)
$3.95

Quantity for Rocker Switch - Maintained 12V/20A Yellow LED
Rocker Switch - Maintained 12V/30A Blue LED (opens in a new tab)
$1.78

Quantity for Rocker Switch - Maintained 12V/30A Blue LED
Rocker Switch - Maintained 12V/5A (opens in a new tab)
$0.79

Quantity for Rocker Switch - Maintained 12V/5A
Toggle Switch - Maintained 12V/20A Blue LED (opens in a new tab)
$3.47

Quantity for Toggle Switch - Maintained 12V/20A Blue LED
Toggle Switch - Maintained 12V/20A Blue LED with Cover (opens in a new tab)
$4.45

Quantity for Toggle Switch - Maintained 12V/20A Blue LED with Cover
Toggle Switch - Maintained 12V/20A Red LED (opens in a new tab)
$3.90

Quantity for Toggle Switch - Maintained 12V/20A Red LED
Toggle Switch - Maintained 12V/20A Red LED with Cover (opens in a new tab)
$4.45

Quantity for Toggle Switch - Maintained 12V/20A Red LED with Cover

Bundle Deals▼

Let’s Connect! We’re a small business passionate about helping you achieve your goals of comfort, privacy, and security with Home Assistant, Single Board Computers, and more. Get in touch for a free consultation or just a fun chat about what’s possible—we’ll do our best to guide you in the right direction and get you the best deal! As a small team, we’ll strive to be available or get back to you as soon as possible.

SKU:E0056-R

View full details

Shelly 1 - WiFi AC/DC...

$9.95

Using as an escape room controller

I'm helping my daughter build an escape room for fun, and we wanted to open a box automatically when the participants solved another riddle, placing runestones in a correct orientation (I'm using Sonoff Door/Window sensors for those). So this triggers a Shelly Manipulator also available at ameridroid, and those are both run by a 12V battery that came out of a faulty UPS (battery backup). I just moved the jumper from the AC position to the DC position before hooking it up to the battery, and everything works great!

Also came here because of the garage door opener

I watched the garage door opener video and converted my old garage door to use this. Recently, I added a Third Reality Zigbee button and created an automation in Home Assistant to trigger the Shelly 1 UL when the button is double-clicked (to avoid accidental presses in the pocket). Works super fast and awesome!

Great device for automation

I've been looking for a way to have network connectivity to a relay. All my other attempts have involved SBCs with custom software written on them, coupled with an add-on relay. This product makes these types of tasks SO MUCH SIMPLER! Follow the instructions, make sure you are not exceeding the specs, and this tiny device will work wonders!

Disaster

Well, this was an interesting disaster. Watching the 'Make a Smart Garage Door Opener' video inspired me to get this device. So I was aware of the jumper that needed to be set to the 12vdc position, and I paid close attention to the +/- (or the L/N as they are also labeled) before connecting to my 12v DC power source.

And yet the relay still managed to melt itself within a minute. I had seen on Amazon reviews that there were some build quality issues, but I thought they may have been early prototypes or some such.

Nope, by the time I smelled the odor of hot components, the damage was done. The case itself had deformed near + lead.

Chan, thanks for your honest review. This is not typical of the experience most have with this unit. According to the manufacturer, the only way the 10 ohm fusible resistor can blow and melt a hole in the side of the unit is if the +/- is misconnected, and this happens by design to protect against a larger problem - this misconnection could likely be due to a mislabeling on the power supply itself, or the power supply itself could be faulty. Shelly has a Facebook forum and a support email where they are usually really good about helping to solve these types of issues. The Shelly 1 comes with a 1-year manufacturer's warranty, so it will be no trouble to replace this. We've been using a number of these for well over a year with no issues, in a number of different scenarios. We're sorry to hear that your experience was bad.

Great device

I used this device to control outdoor front lights, and will use for other projects too. It is small enough to fit inside an existing switch box, and it respects your privacy by having 3 access levels:
1) It can work as a WIFI access point without connecting to Internet - you simply connect to its own WIFI and manage the device.
2) It can connect to existing WIFI. You connect to it by using its IP address assigned by your router. This way you can download new firmware.
3) When using option 2), the third option is to connect the device to Shelly cloud.

With 1 and 2 you can only manage device from inside your home. With 3 you can manage using your phone from anywhere. 1 provides the most privacy, 3 provides the least privacy but a lot of flexibility.
