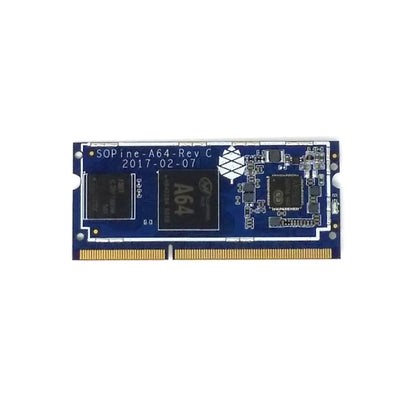

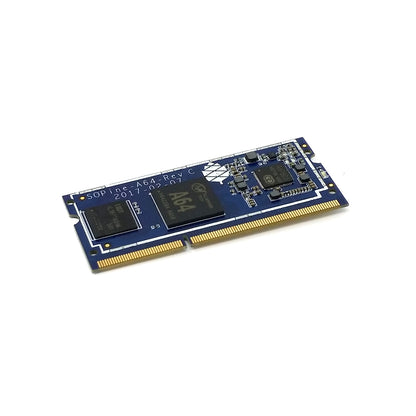

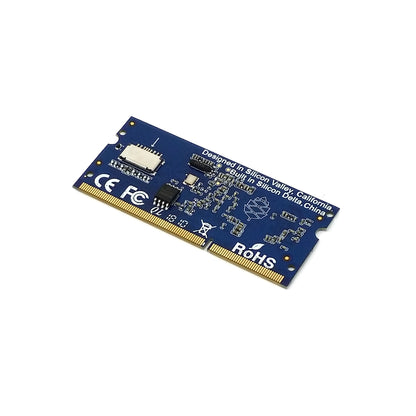

SOPine A64 Compute Module
SOPine A64 Compute Module
In stock
Couldn't load pickup availability
Description ▼
The SOPINE A64 is a compute module powered by the same powerful Quad-Core ARM Cortex A53 64-Bit Processor as PINE A64 with 2G LPDDR3 RAM memory, Power Management Unit, SPI Flash and MicroSD Slot (for bootable OS images microSD card) integrated. This tiny compute module uses a SODIMM-DDR3 form factor that is commonly found in notebook computers. This allows flexibility for makers to integrate multiple SOPINE A64's into their motherboard for projects that require more computing power.
Links to compliance documentation available at the bottom of this listing.
SPECIFICATIONS- SoC – Allwinner A64 quad core Cortex A53 processor @ 1.2 GHz with Mali-400MP2 GPU
- System Memory – 2GB LPDDR3
- Storage – 128 Mbit SPI flash, micro SD slot (on the back)
- I/Os via 204-pin SO-DIMM edge connector
LINKS
- ameriDroid Learn articles - https://ameridroid.com/blogs/ameriblogs/tagged/sopine
- Pine64 Wiki - https://wiki.pine64.org/index.php/PINE_A64-LTS/SOPine_Main_Page
- FCC - http://files.pine64.org/doc/cert/SOPine%20FCC%20certification%20VOC20170428.pdf
- CE - http://files.pine64.org/doc/cert/SOPine%20CE%20certification%20VOC20170428.pdf
Warranty is valid for thirty days, starting upon date of receipt.
Recommended Accessories ▼
Bundle Deals▼
Let’s Connect! We’re a small business passionate about helping you achieve your goals of comfort, privacy, and security with Home Assistant, Single Board Computers, and more. Get in touch for a free consultation or just a fun chat about what’s possible—we’ll do our best to guide you in the right direction and get you the best deal! As a small team, we’ll strive to be available or get back to you as soon as possible.
Share
SKU:C0355
View full details
amerIDroid.com New Theme
We have received some feedback and released a new theme making our website simpler and better looking.
Trivia Time!
This is just a COM'd version of the Pine A64. Armbian boots without issues on this unit, and the problem of needing an HDMI cable plugged in do not seem to exist here. You will need either the baseboard, clusterboard, or your own board to power this up, as no ports beyond uSD exist on the unit itself. This is a true embedded device.
I've had no issues to date, the only thing I can't speak to is the life of the module, and temperature issues, if any exist. So far, however, it's run with no noticeable problems during the burn-in period.
