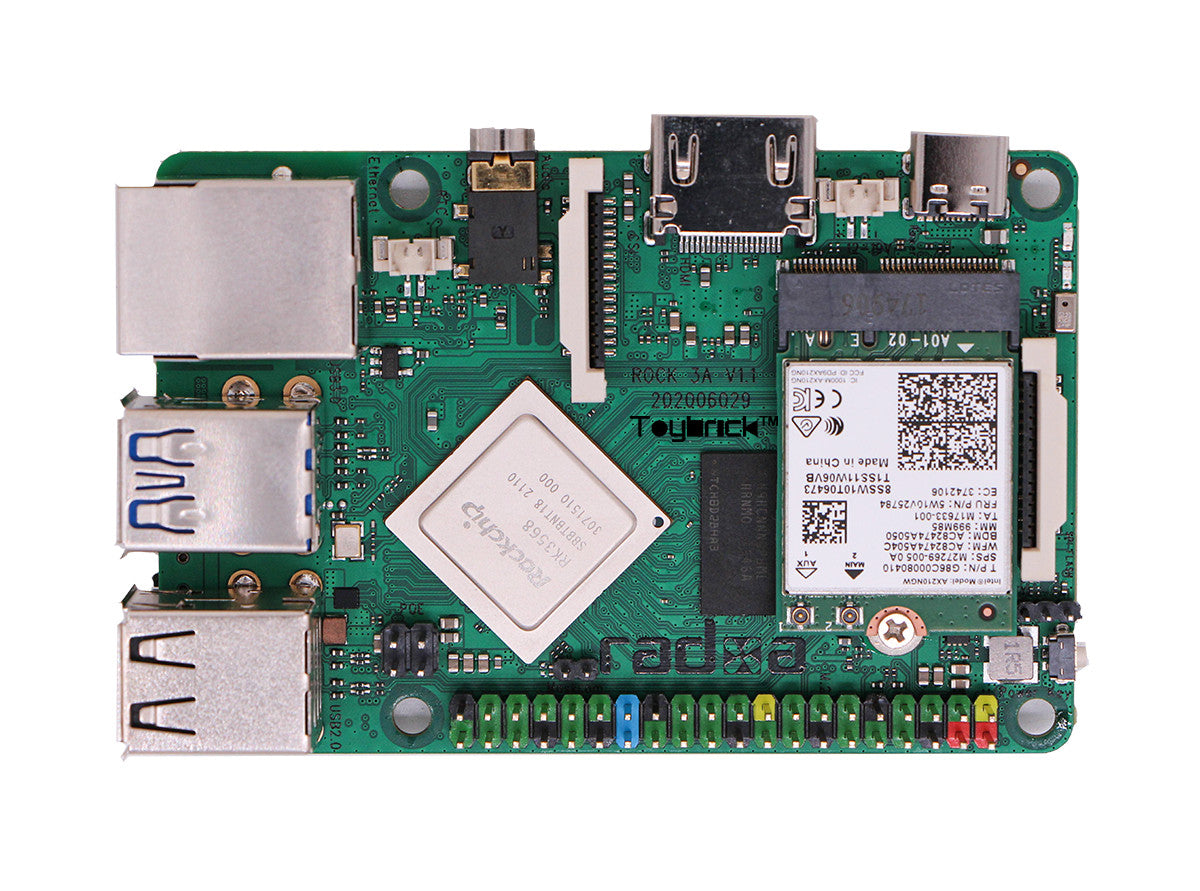

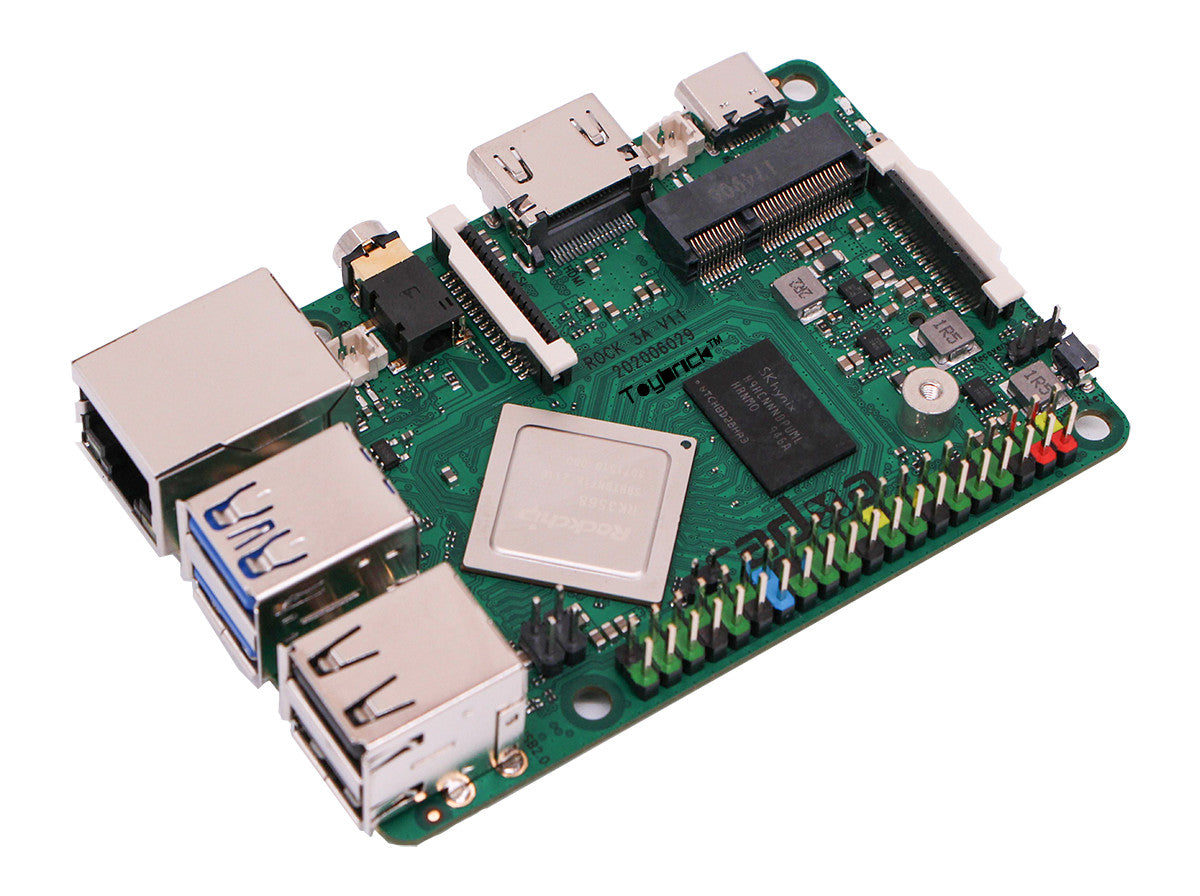

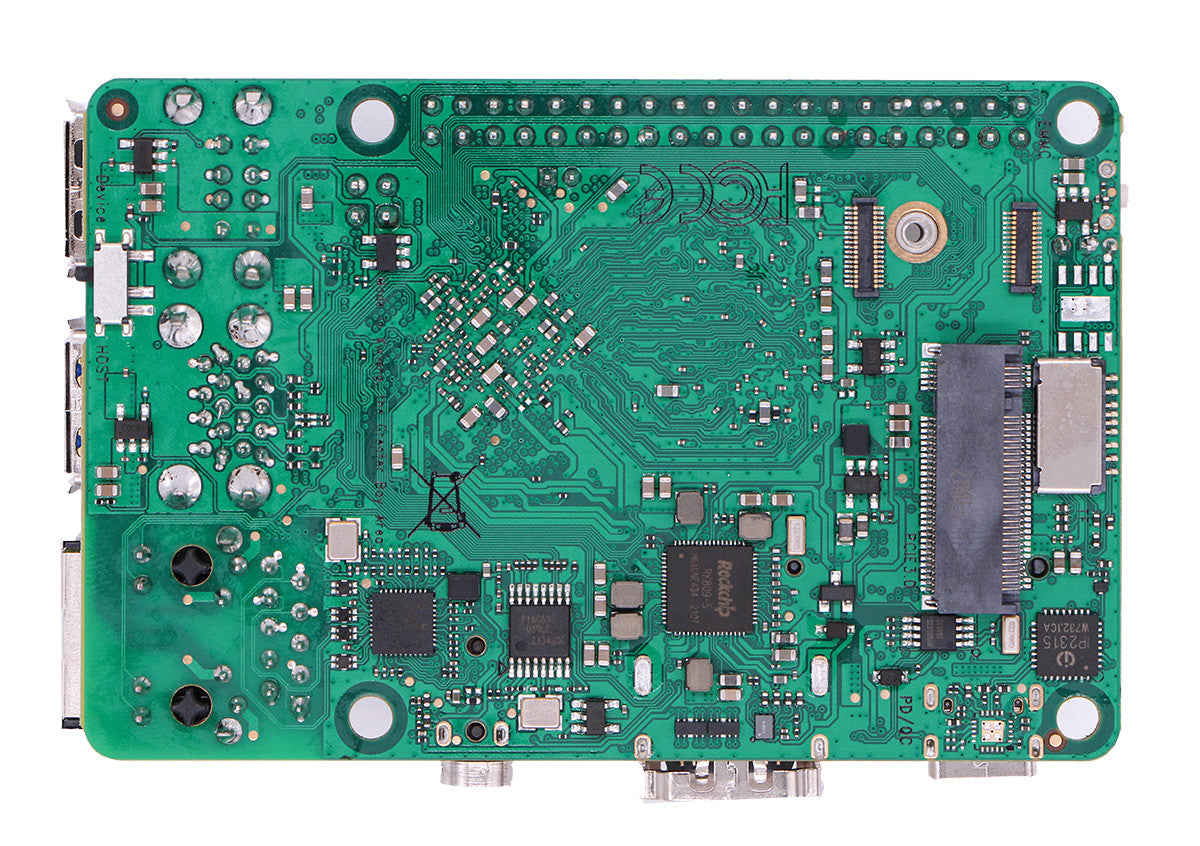

ROCK 3A

ROCK 3A is an improved version of the ROCK Pi 4.

• RK3568, Quad A55 up to 2GHz, Mali G52 GPU, 0.8T NPU
• eMMC module socket, 2GB/4GB/8GB LPDDR4 3200MT/s, DRAM controller frequency up to 1560MHz
• uSD slot supports up to 128G uSD card
• QC/PD power support, with a new generation QC/PD protocol IC
• Two USB2 same as ROCK Pi 4, two USB3(1x OTG+1x HOST)
• USB3 can be configured in SATA mode with a SATA breakout cable
• GbE with PoE support
• M.2 M key for NVMe with PCIe 3.0 x2 lanes
• M.2 E key for connectivity with PCIe 2.0 x1/SDIO/UART, support WiFi 6 cards
• 1x MIPI DSI, 1x MIPI CSI, compatible with ROCK Pi 4
• 40P GPIO mostly compatible with ROCK Pi 4

NOTES

• WiFi & BT Modules not included
• Recommended cases need a slight modification for the USB-C port, but otherwise work perfectly.

REQUIRED

To operate you will need:

• ROCK 3A (this item)

• Power adapter with USB type C PD 2.0, 9V/2A, 12V/2A
• eMMC module or MicroSD Card
• Keyboard & Mouse
• Monitor with HDMI input
• HDMI cable

LINKS

• Getting Started Guide - https://wiki.radxa.com/Rock3
• Official OS Images - https://wiki.radxa.com/Rock3/downloads
• Armbian Images - https://armbian.hosthatch.com/archive/rock-3a/


Warranty is valid for a year, starting upon date of receipt.
